Installing The Processor - H3C UniServer R4700 Installation, Quick Start

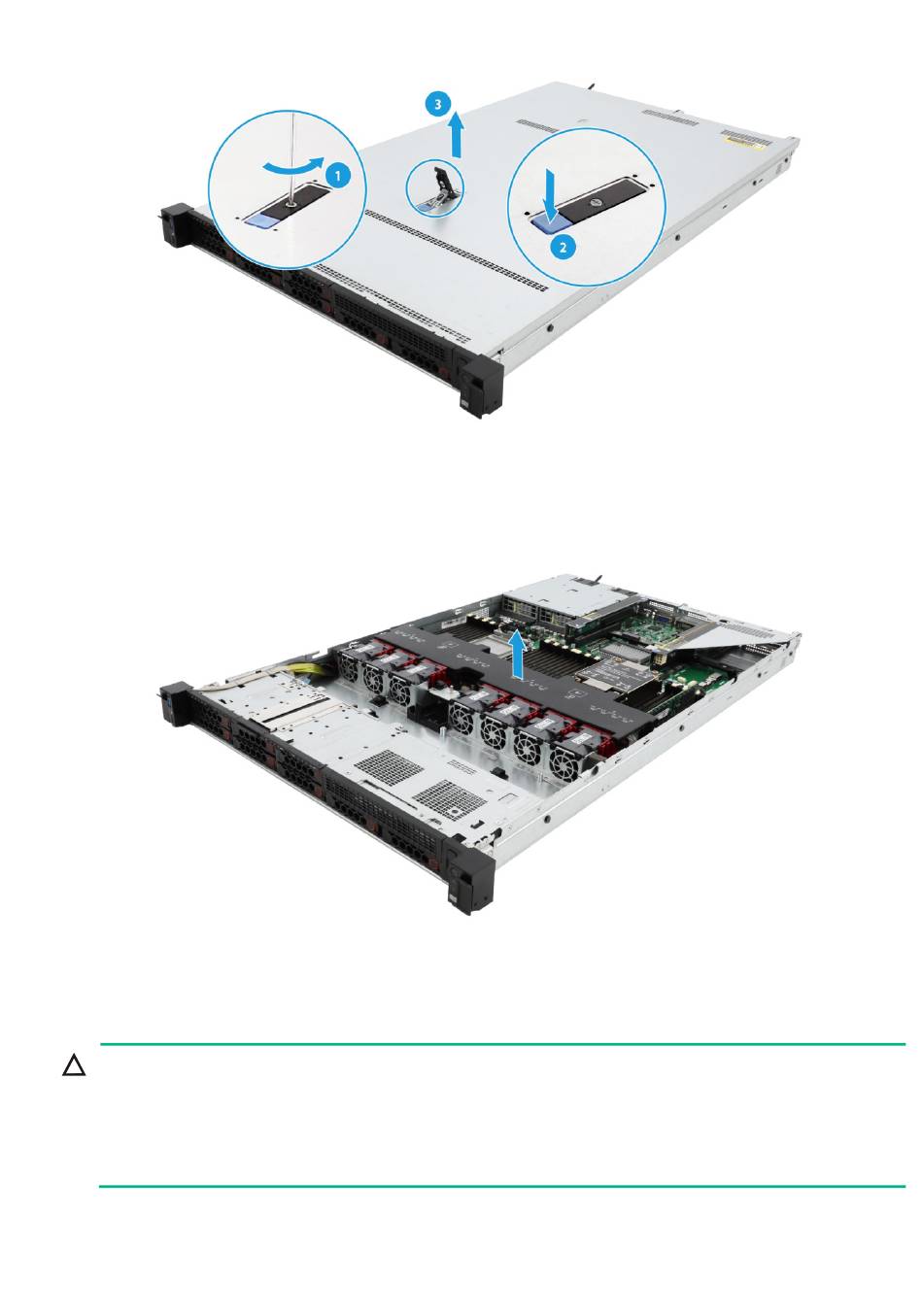

Figure1-1 Removing the access panel
6. Remove the chassis air baffle. As shown in Figure1-2, lift the air baffle up to remove it from the
chassis.
Figure1-2 Removing the chassis air baffle

Installing the processor

CAUTION:
• The server can use two or four processors.
• To prevent damage to the pins on the processor socket, always install a cover over an empty
processor socket.
• Make sure all processors on a server are the same model.
To install the processor:
1. Remove the heatsink protective cover. As shown in Figure1-3, lift the cover straight up and
away from the heatsink.
2
