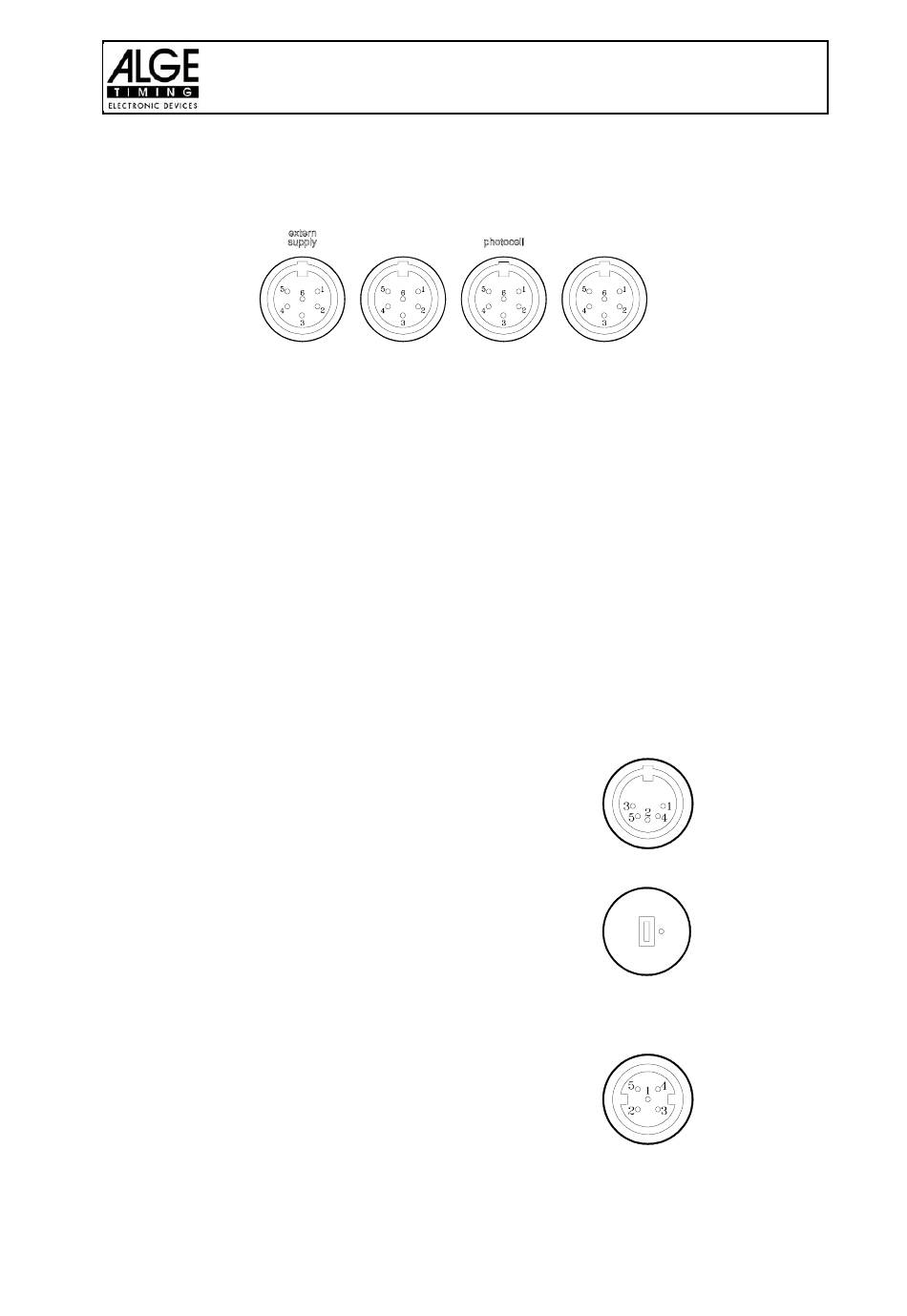

7.1.
Connection System
7.1.1.
Photocell jacks and external supply
Jack A and A´ (20 and 19):
1
input channel 0 (start)
2
input channel 1 (stop)
3
common ground
4
input external supply (6 to 15 VDC)
5
output +5 VDC stabilized
6
input channel 2 (intermediate time)
Jack C (22):
1
input channel 6 (start)
2
input channel 7 (stop)
3
common ground
4
input external supply (6 to 15 VDC)
5
output +5 VDC stabilized
6
input channel 8 (intermediate time)
7.1.2.
Headset Jack (18)
1
microphone of headset
2
common ground
3
loud speaker of headset
4
common ground
5
input channel 9
7.1.3.
Speaker Jack (25)
1
speaker signal
2
common ground
7.1.4.
Display Board Jack (24)
1
common ground
2
output supply (6 to 15 VDC)
3
output data channel 1
4
output supply (6 to 15 VDC)
5
output data channel 1 or 2
7.1.5.
RS 232 / RS 485 (23)
1
RS 232, Data TXD (transmit)
2
RS 232, common ground
Version: E-01-08-08
TdC 8000 for Equestrian
A´
A
B
C
Jack B (21):
1
input channel 3 (start)
2
input channel 4 (stop)
3
common ground
4
input external supply (6 to 15 VDC)
5
output +5 VDC stabilized
6
input channel 5 (intermediate time)
Page 97
Page 97
