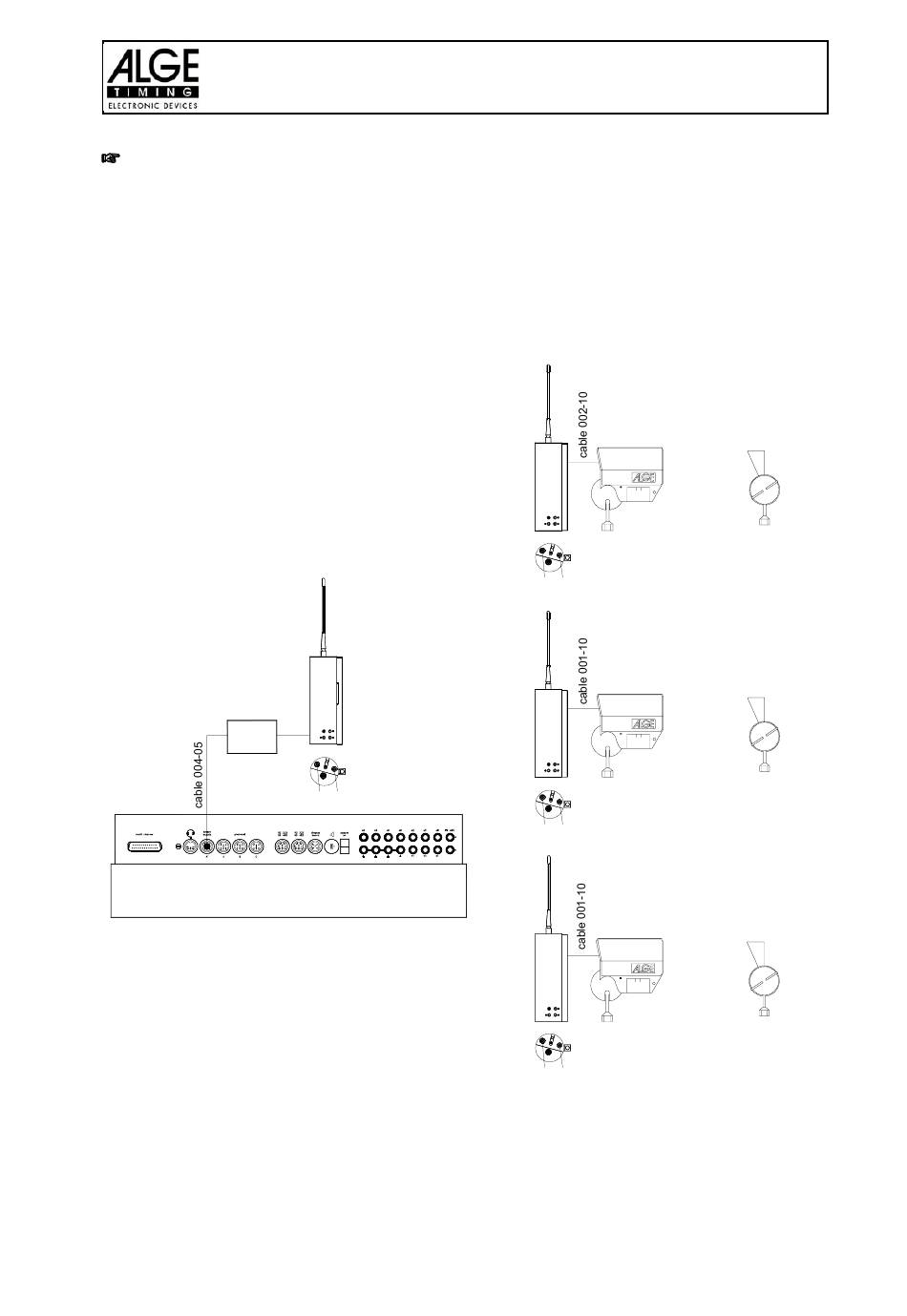

Start and Finish as well as Jump Off Finish at different places:
You need to have three different radio transmitter (one for start, one for finish, and one for the
finish of jump off) and one radio receiver (at the timing device). If you want (or need) to switch
each photocell separate on and off you can use instead of cable 004-05 the adapter 125-06.
Adapter
125-06
TdC 8000
Version: E-01-08-08
TdC 8000 for Equestrian
TED-TX
Transmitter
TED-RX
Receiver
TED-TX
Transmitter
both rotation switch on position 0
TED-TX
Transmitter
START
Photocell RLS1n or RLS1nd
both rotation switch on postion
FINISH
Photocell RLS1n or RLS1nd
both rotation switch on position
FINISH
jump off
Photocell RLS1n or RLS1nd
both rotation switch on position 0
