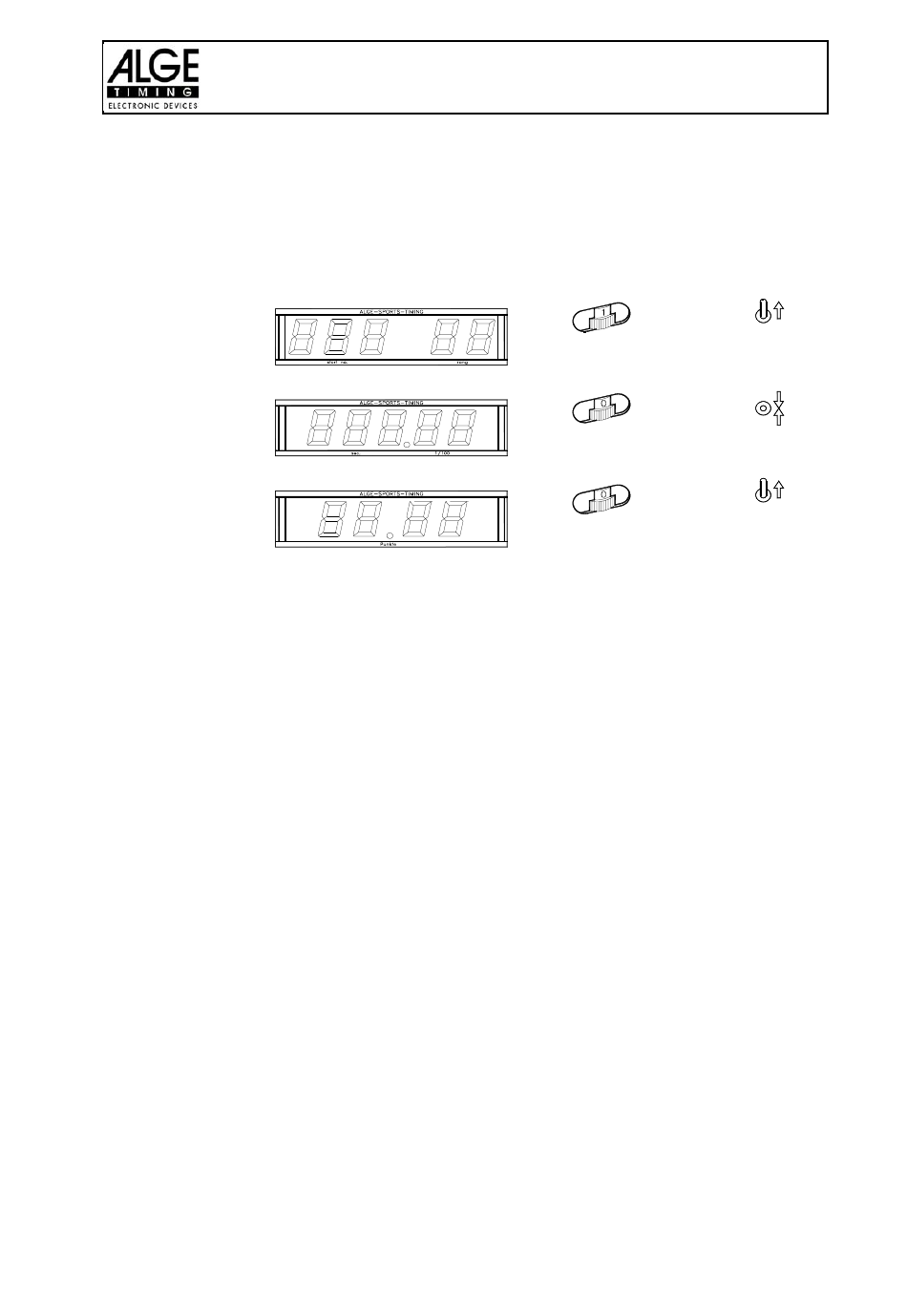

Display Board GAZ4:
You can show the run time (and countdown time), penalty seconds, and start number/rank on ALGE
display boards. In the main menu (menu 19, see page 46) you can activate channel 2. If you have
activated channel two it shows only the run time or time to beat on the display board (no running
time).
Start number / Rank:
Run Time and
Running Time:
Penalty Seconds:
RS 232c Interface:
Transfer Format: 1 start bit, 8 data bit, no parity bit, 1 stop bit
Transfer Speed: 9.600 Baud pre adjusted (adjustable: 2400, 4800, 19200)
Transfer Protocol: ASCII
nNNNN(CR)
xNNNNxCCxxHH:MM:SS.zhtqxGR(CR)
xNNNNxCCMxHH:MM:SS.zhtqxGR(CR)
xNNNNxCDxxxxSSSSSS.zhxxxGR(CR)
xNNNNxTOxxxxSSSSSS.zhxxxGR(CR)
xNNNNxRTxxxxSSSSSS.zhxxxGR(CR)
xNNNNxRTTxxxSSSSSS.zh(CR)
xNNNNxPSxxxxxxx+tt.tt(CR)
iNNNNxPSxxxxxxxxtt.tt(CR)
xNNNNxPSTMxxxxxxtt.tt(CR)
xNNNNxPPSxxxxxxxtt.tt(CR)
xNNNNxPTOxxxxxx+tt.tt(CR)
iNNNNxPTOxxxxxxxtt.tt(CR)
x blank
NNNN
CC timing channels (c0 to c9)
C0 channel 0 (start)
CCM manual impulse (with <START> or <STOP> from keyboard 9 or 15)
CD countdown
TO time-out
RT run time
RTT run time, including penalty time
HH:MM:SS.zhtq time in hours, minutes, seconds, and 1/10000 seconds
SSSSSS.zh time in seconds and 1/100 seconds
GR group for team competition (from 01 to 99, no input for groups = 00)
PS penalty seconds for obstacle drop
Version: E-01-08-08
TdC 8000 for Equestrian
active start number
time of day
time of day (manual impulse)
countdown time
time-out
run time
run time including penalty time
penalty time for obstacle drop
correction of penalty time for obstacle drop
penalty seconds from time violation
total penalty seconds (barrier drop and time violation)
penalty seconds for obstacle setup
correction of penalty seconds for obstacle setup
start number (four digits)
C1 channel 1 (finish) C9
thumb wheel switch
on 1
thumb wheel switch
on 0
thumb wheel switch
on 0
channel 9 (time-out)
