ALGE-Timing TdC 8000 Manual page 80

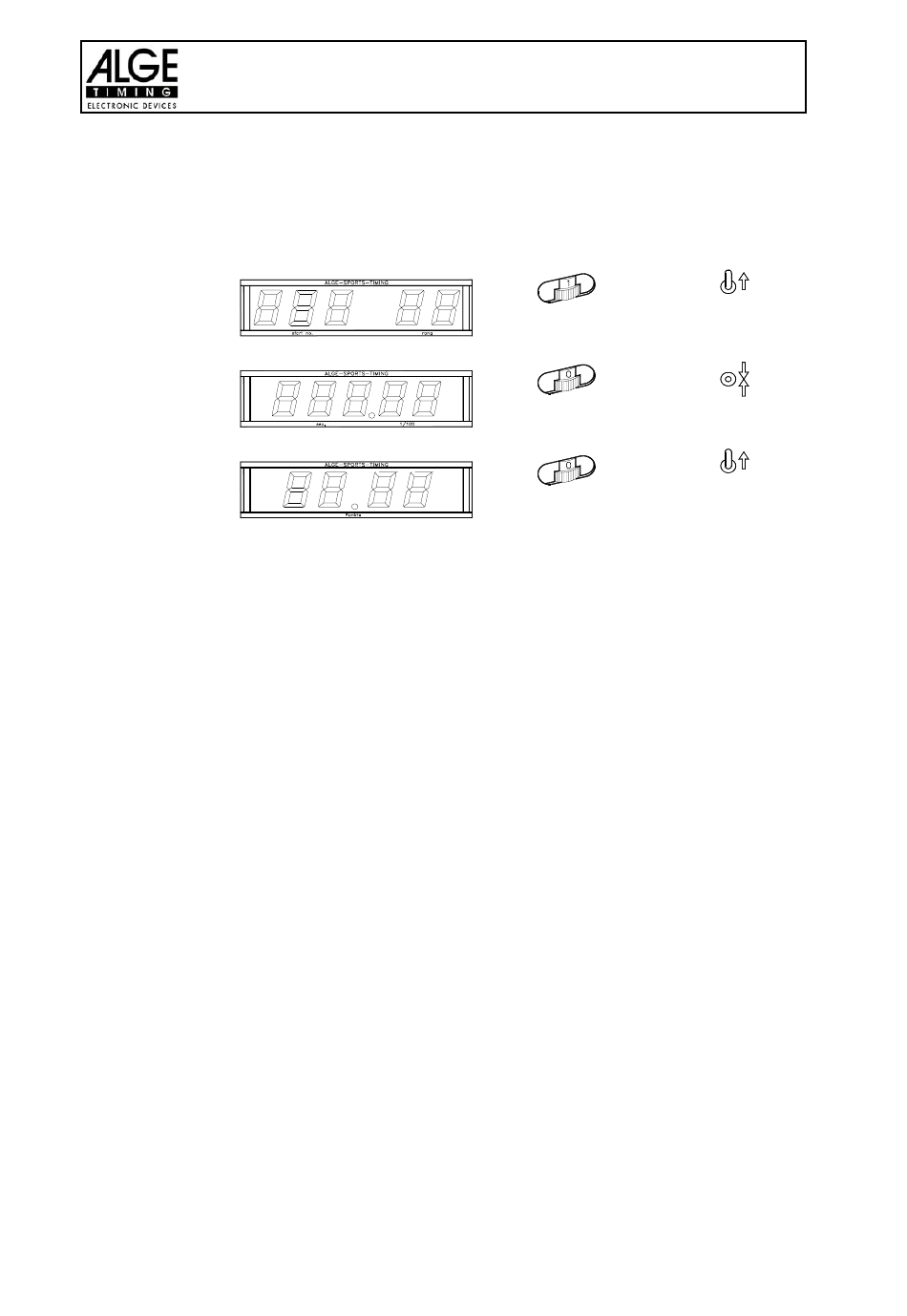

Display Board GAZ4:
You can show the run time (and countdown time), points, and start number/rank on ALGE display
boards. In the main menu (menu 19, see page 46) you can activate channel 2. If you have activated
channel two it shows only the run time or time to beat on the display board (no running time).
Start number / Rank:
Run Time and
Running Time:
Penalty Points:
RS 232c Interface:
Transfer Format: 1 start bit, 8 data bit, no parity bit, 1 stop bit
Transfer Speed: 9.600 Baud pre adjusted (adjustable: 2400, 4800, 19200)
Transfer Protocol: ASCII
nNNNN(CR)
xNNNNLCCxxHH:MM:SS.zhtqxGR(CR)
xNNNNLCCMxHH:MM:SS.zhtqxGR(CR)
xNNNNLCDxxxxSSSSSS.zhxxxGR(CR)
xNNNNLTOxxxxSSSSSS.zhxxxGR(CR)
xNNNNLRTxxxxSSSSSS.zhxxxGR(CR)
xNNNNxRTTxxxSSSSSS.zh(CR)
xNNNNxPxxxxxxxx+pp.pp(CR)
iNNNNxPxxxxxxxxxpp.pp(CR)
xNNNNxPTMxxxxxxxpp.pp(CR)
xNNNNxTPxxxxxxxxpp.pp(CR)
xNNNNxPTOxxxxxx+tt.tt(CR)
iNNNNxPTOxxxxxxxtt.tt(CR)
x blank
NNNN
L indicates the stage (1 or 2)
CC timing channels (c0 to c9)
C0 channel 0 (start)
C1 channel 1 (finish)
C9 channel 9 (time-out)
CCM manual impulse (with <START> or <STOP> from keyboard 9 or 15)
CD countdown
TO time-out
RT run time
RTT run time, including penalty time
HH:MM:SS.zhtq time in hours, minutes, seconds, and 1/10000 seconds
SSSSSS.zh time in seconds and 1/100 seconds
Version:E-00-08-08
TdC 8000 for Equestrian
active start number
time of day
time of day (manual impulse)
countdown time
time-out
run time
run time including penalty time
penalty points for obstacle drop
correction of penalty points for obstacle drop
penalty points from time violation
total points (barrier drop and time violation)
penalty points for obstacle setup
correction of penalty seconds for obstacle setup
start number (four digits)
thumb wheel switch
on 1
thumb wheel switch
on 0
thumb wheel switch
on 0
Page 80
toggle switch
upper position
toggle switch
middle position
toggle switch
upper position
