9450 Industrial PC/AT Computer System

Back Panel

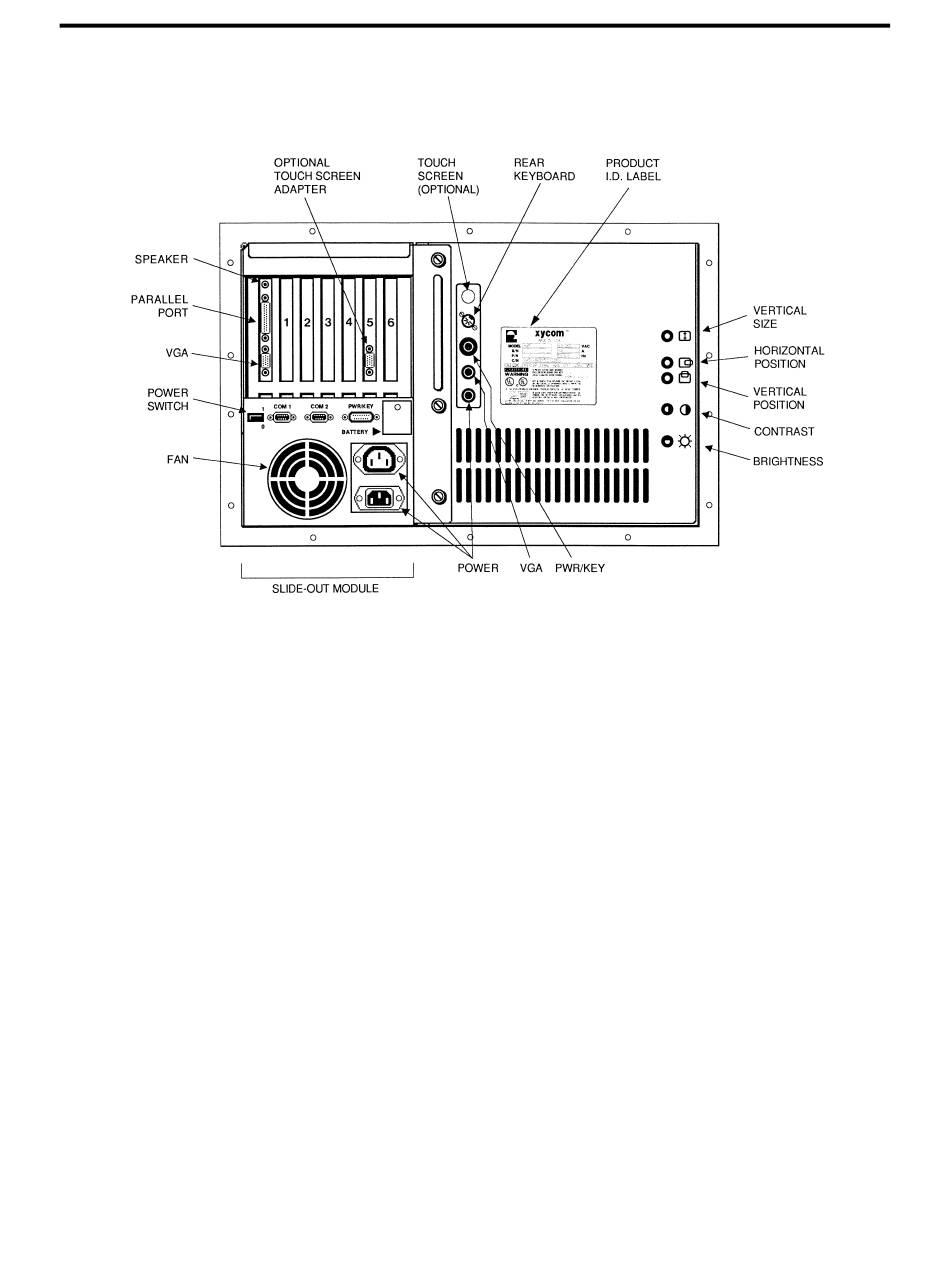

Figure Chapter 3 -2 illustrates the 9450's back panel components.
ON/OFF Switch
Power Receptacle
Video Connector
Video Controls
4
Figure Chapter 3 -2. 9450 Back Panel Components
Place this switch in the OFF position (switch should be
out) until the system is properly configured and con-
nected to a 115 VAC or 230 VAC power source.
The power receptacle is located to the right of the
ON/OFF switch. The upper power outlet is for the
monitor and the lower power outlet is for the main
power source. The plug and cord for the AC power and
the monitor power must be securely positioned before
turning power on.
The 15-pin high density video cable is connected to the
VGA port on the CPU.
The contrast and brightness controls are located on the
right hand side of the unit. Turning the knobs left or
right will adjust contrast or brightness on the monitor.
The vertical size, horizontal position and vertical posi-
tion are located above the contrast and brightness con-
trols. Turning the knobs left or right will adjust the ver-
tical position, horizontal position, and vertical height.
