Chapter 2 - Testing
Installing/Removing the Slide-Out Computer Module
The slide-out computer module (shown in Figure Chapter 3 -4) allows access to the
power supply and disk drives. The PC add-in boards can be replaced by removing the
three screws on the hinged top cover.

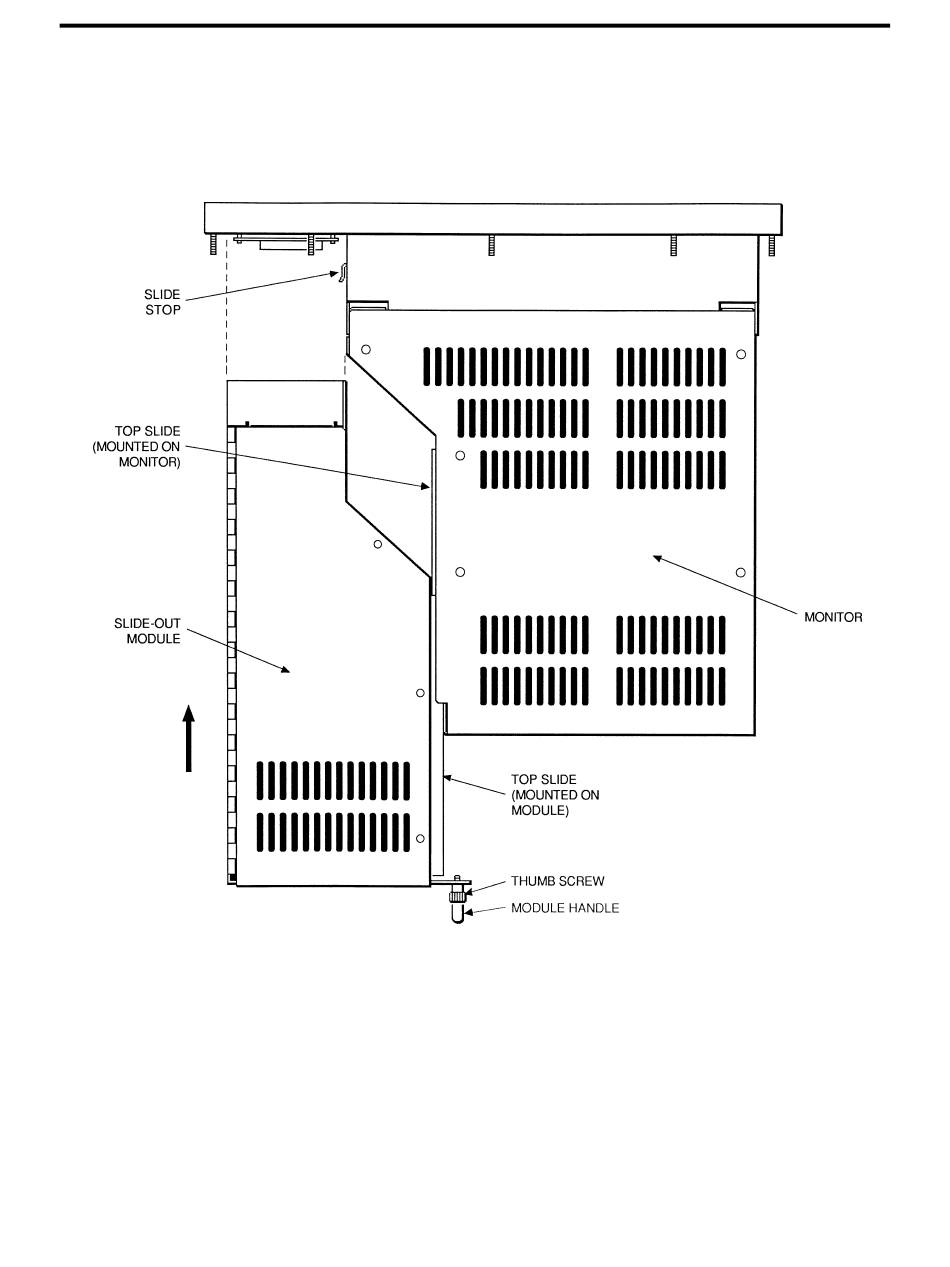

Figure Chapter 3 -4. Installing the Slide-out Computer Module
7
