9450 Industrial PC/AT Computer System
Before connecting a ribbon cable to latched connectors, make sure the latches are pulled
down near the surface of the board. When the cable connection is made, the latches snap
up. When removing a cable connector, move the latches down near the board. This
nudges the connector up so you can remove it easily.
On the AT5+ CPU board the FDD and HDD-1 connectors are located below the LED
connector.
10

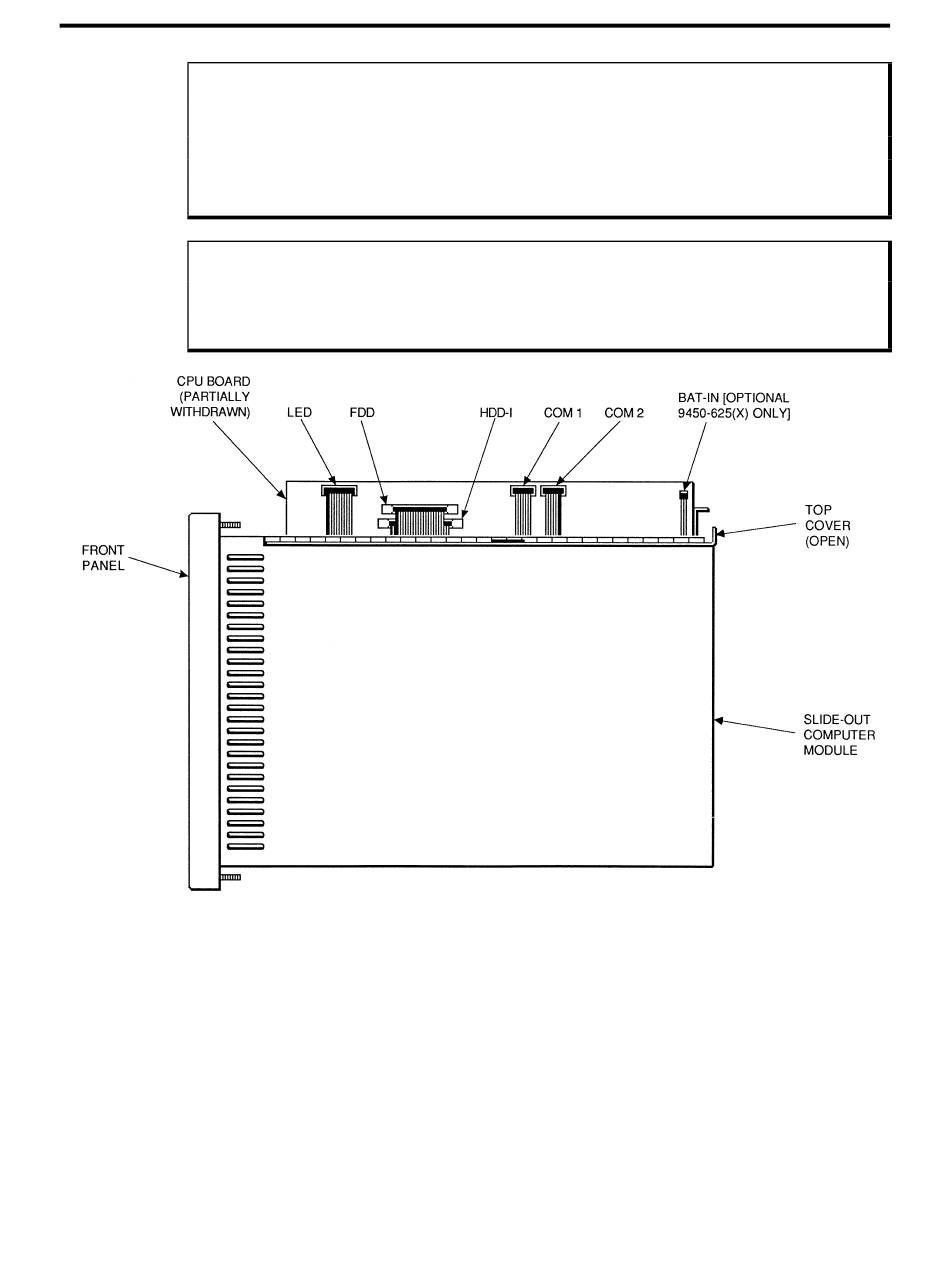

Figure Chapter 3 -6. CPU Board/Connectors
Note
Note
