Chapter 3 – Installation
This chapter contains an overview of the 9450 hardware and I/O locations, as well as in-
stall options.

System Components

This section describes the 9450's front and back panel components to familiarize you
with the system.

Front Panel

The 9450 comes equipped with a NEMA 4/NEMA12 sealed front panel. The panel pro-
tects the system's interior when the system is properly panel mounted. Figure 3-1 illus-
trates the front panel features of the 9450.

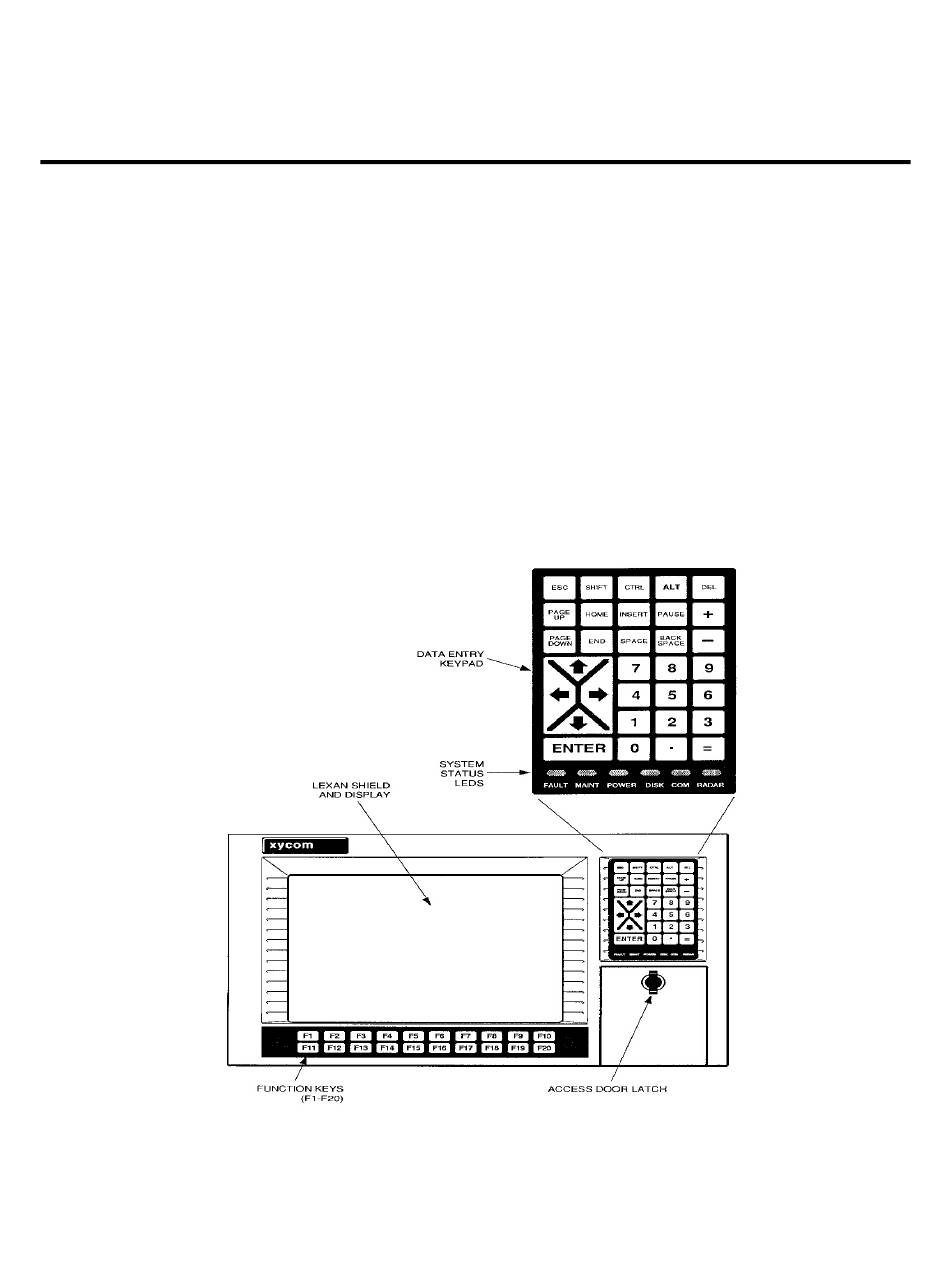

Figure Chapter 3 -1. 9450 Front Panel
