3510/3510KP/3512/3512KP System Manual
Back Panel
Feature
Fasteners
External Floppy Disk Drive (Optional)
3-6

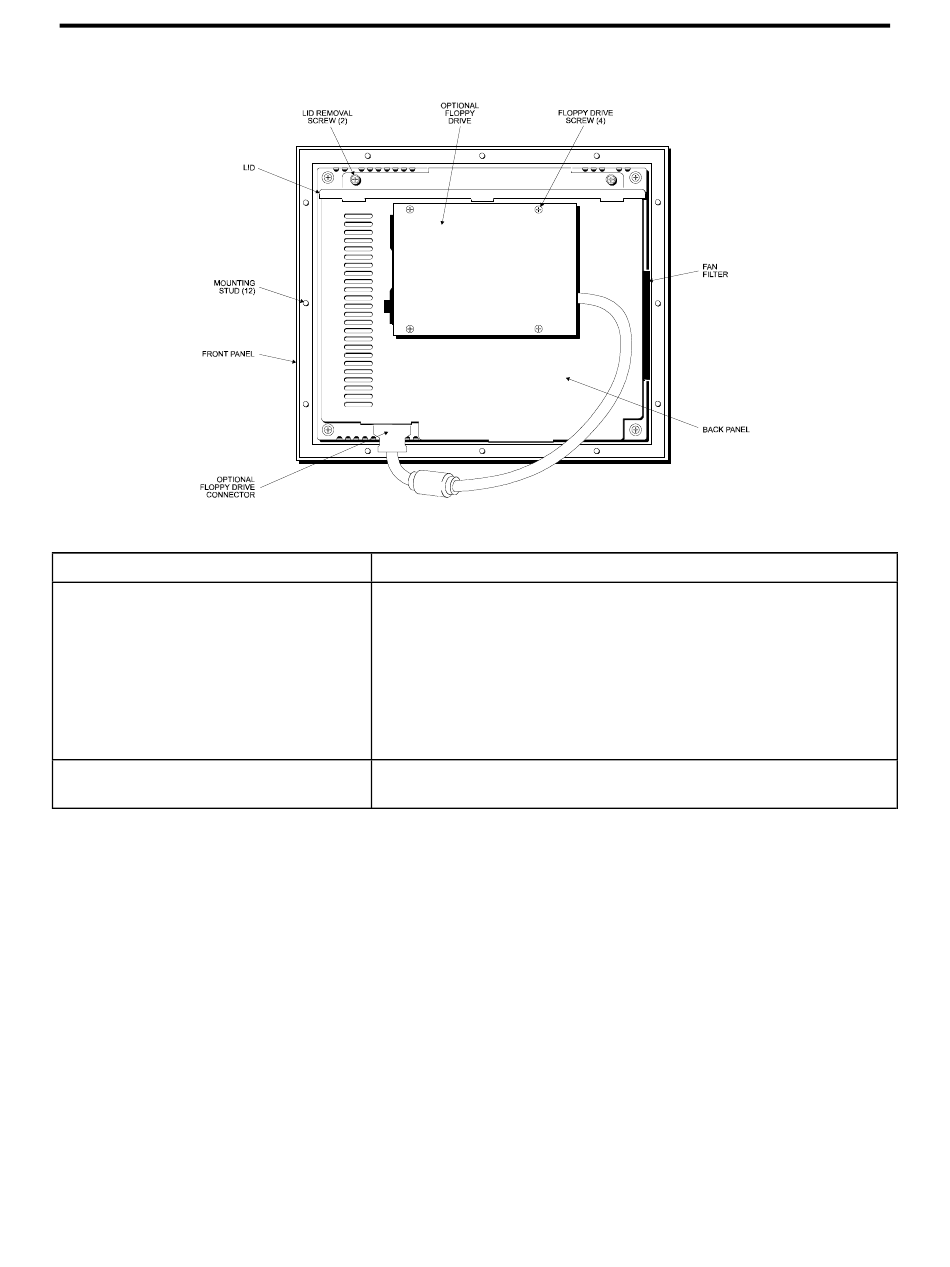

Figure 3-4. System Back Panel
Description
There are two protruding captive screws (lid removal screws)
along the top of the back panel. Loosen these screws to remove
the lid. There are four flush captive screws located across the
top and bottom of the back panel. Loosen these screws (using a
Phillip-head screwdriver) to remove the front panel.
Note: If your system has a touchscreen, disconnect the
touchscreen cable from the CPU board before removing the back
of the system from the front bezel.
You can install an external floppy disk drive to the back of the
system. Front access options are also available.
