9450 Industrial PC/AT Computer System

Removing the Slide-Out Computer Module

Figure Chapter 3 -5 shows removal of the slide-out computer module.
Follow the steps below to remove your slide-out computer module.
1. Disconnect cables (VGA, PWR/Key, Power, and optional touch screen).
2. Loosen the three thumb screws that attach the slide-out computer module to the 9450
back panel.
3. Grasp the handle that protrudes from the back panel.
4. Pull straight back. The module should slide out easily.

Re-installing the Slide-Out Computer Module

After you have finished installing options on your 9450, reconnect it to the front panel
according to the following instructions:
8

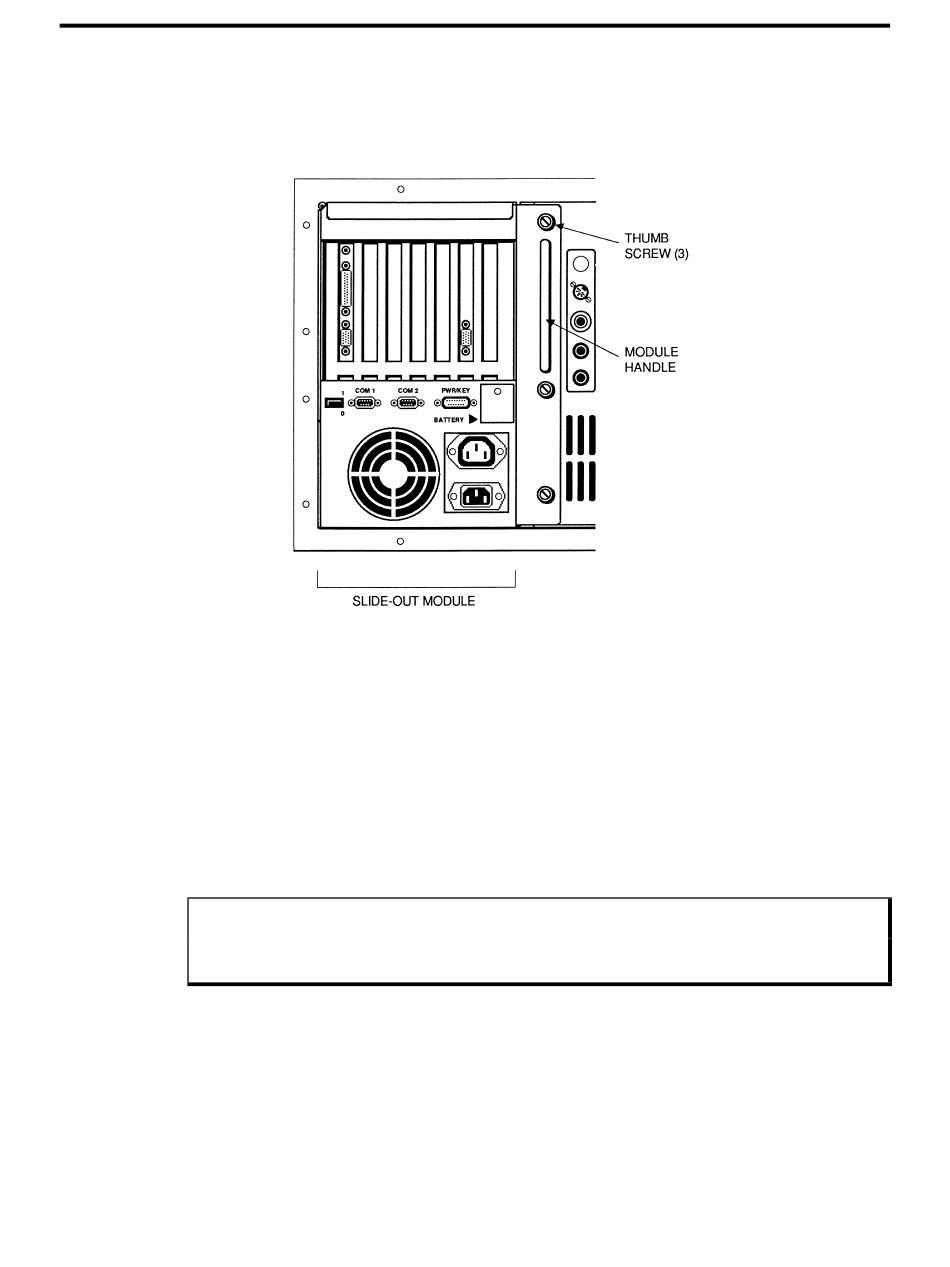

Figure Chapter 3 -5. Removing the Slide-Out Computer Module
Place a hand underneath to support weight of module.
Note
