Xycom 3500 Series Manual

Flat panel industrial pc with 6-slot isa/pci expansion
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

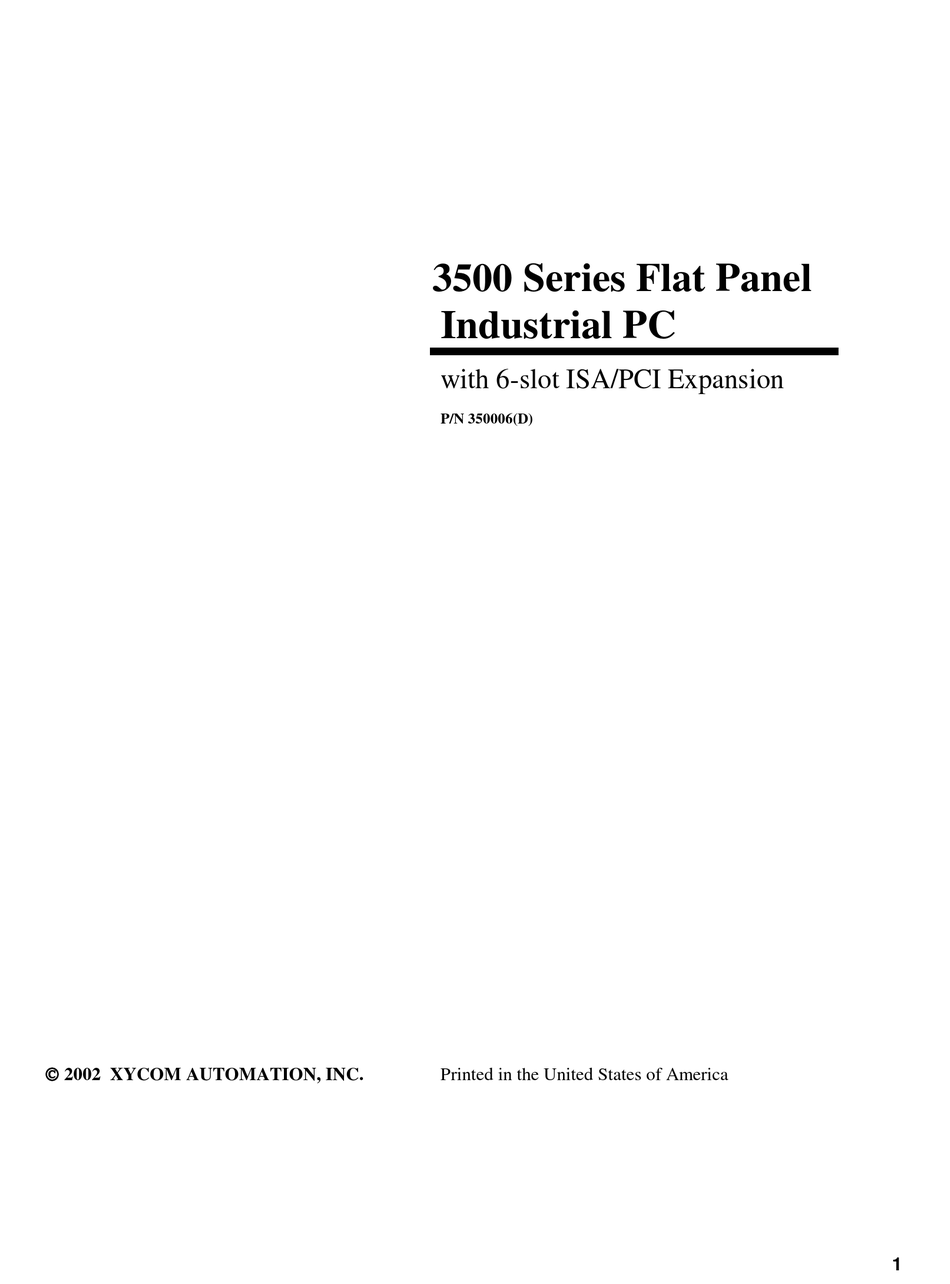

3500 Series Flat Panel
Industrial PC
with 6-slot ISA/PCI Expansion
P/N 350006(D)
    2002 XYCOM AUTOMATION, INC.
Printed in the United States of America
1

Advertisement

Table of Contents
loading

Related Manuals for Xycom 3500 Series

Summary of Contents for Xycom 3500 Series

  • Page 1 3500 Series Flat Panel Industrial PC with 6-slot ISA/PCI Expansion P/N 350006(D)     2002 XYCOM AUTOMATION, INC. Printed in the United States of America...
  • Page 2 This document is copyrighted by Xycom Automation Incorporated (Xycom Automation) and shall not be reproduced or copied without ex- pressed written authorization from Xycom Automation. The information contained within this document is subject to change without notice. Xycom Automation does not guarantee the accuracy of the information and makes no commitment toward keeping it up to date.

  • Page 3: Table Of Contents

    Chapter Four – Keypad Utility Program ....................48 Loading the Keypad Utility .............................48 Using the Keypad Utility............................48 Main Menu ................................49 Keypad Scan Codes..............................53 Chapter Five - Maintenance ........................57 Xycom Recommended Hard Drive Preventative Maintenance ................57 Appendix A – Technical Specifications ....................63...
  • Page 4 3500 Series Flat Panel Industrial PC Hardware Specifications............................63 Environmental Specifications..........................63 Appendix B – Block Diagrams ......................... 65 Appendix C – Pinouts ..........................67 Keyboard Port Connectors ............................67 Aux Port Connector..............................67 Dual USB Connector (USB1) ..........................67 Parallel Port Connector (LPT1)..........................68 Serial Port Connectors.............................68 VGA Connector...............................69...

  • Page 5: Chapter One - Introduction

    Chapter One – Introduction Product Overview The 3500 series of flat panel industrial PCs with 6-slot ISA/PCI expansion include the 3515, 3515T, 3515KPM, and 3512KPM models. These industrial PCs offer a powerful, compact package for the factory floor and other harsh environments. The 3515 is an in- dustrial PC with a display only (touchscreen optional).
  • Page 6 3500 Series Flat Panel Industrial PC • Flat panel display • 15-inch flat panel, 1024x768 resolution (3515T and 3515KPM) • 12.1-inch flat panel, 800x600 resolution (3512KPM) • Parallel port • VGA port • Flash BIOS • 9-inch mounting depth •...

  • Page 7: Unpacking The System

    Chapter Two - Testing • Flat-panel display • 15.0-inch TFT flat panel (3515 and 3515KPM) • 12.1-inch TFT flat panel (3512KPM) • CD-ROM (internal) • Pre-installed PCI 10/100 Base-T Ethernet card • External floppy drive 9000-EXF • Front mount floppy kit 9000-FFK •...
  • Page 8 3500 Series Flat Panel Industrial PC 1. Attach an optional keyboard to the keyboard port. 2. Attach other optional equipment following the instructions in Chapter 3. 3. Attach the power cord from the power receptacle to a properly grounded 115/230 VAC, 50-60 Hz outlet or a 24 VDC outlet, whichever applies (Refer to the Creating a Power Cable section in Chapter 3 for more information.)

  • Page 9: Chapter Two - Testing

    If any of these tests fails, either you do not have the correct default setting or there is a failure. Check the default settings and run the tests again. If another failure occurs, contact Xycom Automation’s Product Repair & Cus- tomization Department (see Chapter 5).
  • Page 10 3500 Series Flat Panel Industrial PC Perform the steps below before starting the system tests: 1. Place the CPU board jumpers and switches to the factory set positions. Refer to your CPU manual for these settings. 2. Plug the female end of the AC power cable into the side of the unit and the male end into a properly grounded outlet.

  • Page 11: Running The Tests

    To run the test, insert the diagnostics disk into drive A. Turn on the computer (the diag- nostics program will boot-up). Figure 2-2 shows the Main Menu. Copyright 1990-1996, Xycom Automation, Inc. All rights reserved. Diagnostic Tests Sequence/Selection Menu (Rel. xx) 1.

  • Page 12: Chapter Three - Installation

    3500 Series Flat Panel Industrial PC Chapter Three - Installation System Components This section describes the components on the unit to help you locate features relevant to installation. 3515 Front Panel The 3515 comes with a NEMA 4/4X/12 and IP65 sealed front panel with a TFT (Figure 3-3) display.
  • Page 13 Chapter Three - Installation Feature Description Display The 3515 comes standard with a 15-inch TFT flat panel. Impact-resistant shields protect the displays from breakage. If a touchscreen is factory installed, the touchscreen is backed by heat-annealed safety glass replacing the impact- resistant shield.
  • Page 14 3500 Series Flat Panel Industrial PC 3512KPM and 3515KPM Front Panel The 3512KPM (Figure 3-2) and 3515KPM (figure 3-3) comes with a NEMA 4/4X/12 sealed front panel. The panel protects the system’s interior when the system is properly panel mounted.
  • Page 15 Chapter Three - Installation Feature Description Display The 3512KPM comes standard with a 12.1-inch TFT flat panel. The 3515KPM comes standard with a 15-inch TFT flat panel. Impact-resistant shields protect the display from breakage. If a touchscreen is factory installed, the touchscreen is backed by heat-annealed safety glass replacing the impact-resistant shield.
  • Page 16 3500 Series Flat Panel Industrial PC I/O Panel Figure 3-4 illustrates the I/O Panel on the right side of the 3515 and 3512KPM. LID LATCH (2) 3.5" (on back) FLOPPY DRIVE EXPANSION SLOTS (6) 5.25" DRIVE BAY KNOCKOUT OR CD-ROM...
  • Page 17 Chapter Three - Installation Feature Description AUX Port The AUX port is a PS/2 stacked mini-din that allows you to attach a serial device (such as a mouse) at the side of the unit. The AUX port is the upper connector.
  • Page 18 3500 Series Flat Panel Industrial PC Back Panel Figure 3-5 illustrates the system’s back panel. SAFETY RETENTION SCREW (4) LID LATCH (2) MOUNTING STUD (14) BACK PANEL Figure 3-5. Back Panel Note If your system has a touchscreen, keypad, keypad LED, or mouse cable, disconnect the cable(s) from the CPU board before removing the back of the unit from the front bezel.
  • Page 19 Chapter Three - Installation Power Panel EXHAUST LATCH (2) (on back) VENT FILTER (on bottom) (on top) MONITOR AUXILIARY FILTER OUTLET RETENTION POWER SCREW (2) RECEPTACLE RETAINER MOUNTING BRACKET STUD (14) MOUNTING STUD (2) FRONT PANEL Figure 3-6. Unit with AC Power Supply EXHAUST LATCH (2) (on back)

  • Page 20: Installation Options

    3500 Series Flat Panel Industrial PC Feature Description Power Receptacle The AC power receptacle is a three-pin connector on the left side of the unit; the DC power supply uses a terminal block. Monitor Auxiliary Power Outlet The outlet is intended for use only in testing situations, outside haz- ardous locations, and is covered by a retainer bracket for safety rea- sons.

  • Page 21: Externally Mounted Floppy Drive

    Chapter Three - Installation 4. Slide the PC/AT or PCI expansion board into a corresponding rail. 5. Push the board into the backplane connectors. Note Do not force the boards or apply uneven pressure. 6. Secure the board by installing the screw through the hole in the board’s metal ORB and into the top of the track.
  • Page 22 3500 Series Flat Panel Industrial PC Figure 3-8. Front Mounted Floppy Cutout Dimensions Mount the floppy drive access door to the filler plate or the panel, using the four mount- ing nuts as shown in Figure 3-9. Torque the nuts to 35 in/lb. (3.95 Newton Meters).

  • Page 23: Front Access Keyboard And Floppy Connectors

    The floppy drive cable connects to a port mounted in the internal floppy bay. Since the 3500 series only supports one floppy drive, you cannot use the external floppy option if the unit has an internal floppy drive. See Figure 3-11 for cutout dimensions.
  • Page 24 Figure 3-12. Front Floppy and Keyboard Access Option Note The 3500 series supports one floppy drive. If you want to use the floppy drive connector, the unit cannot have an internal floppy drive. (The ex- ternal floppy’s connector is mounted in the internal floppy bay.)

  • Page 25: Serial Aux

    This section provides the necessary information to create a custom logo. 3515 After you create a label, remove the Xycom Automation label and place your custom logo label in the pocket. Refer to Figure 3-13 for the dimensions and recommended re- quirements.

  • Page 26: Creating Custom Keypad Inserts (3512Kpm/3515Kpm Only)

    3500 Series Flat Panel Industrial PC Creating Custom Keypad Inserts (3512KPM/3515KPM only) You can customize your keypad with keypad inserts. Refer to Figure 3-15 and Figure 3- 16 for insert dimensions and installation. Figure 3-15. Keypad Inserts with Dimensions (PF1 - PF20)
  • Page 27 Chapter Three - Installation Figure 3-16. Keypad Insert with Dimensions (F1 - F20) Figure 3-15 provides information on positioning keypad inserts.

  • Page 28: Installing Operating Systems

    3500 Series Flat Panel Industrial PC Figure 3-17. Keypad Insert Position Installing Operating Systems The system CPU comes with MS-DOS standard The pre-installed operating systems are provided in the following format: Operating Systems Format Diskette Windows 95 CD ROM Windows NT...

  • Page 29: Installing Drivers

    Chapter Three - Installation Installing Drivers This section describes how to install the drivers associated with the 3500 series. Ethernet Drivers If Windows 95 or Windows NT 4.0 is pre-installed on your system and you ordered the Ethernet card option, Ethernet drivers are installed on your hard drive in the C:\netdrv di- rectory.
  • Page 30 3500 Series Flat Panel Industrial PC Touchscreen Drivers Depending upon the date of purchase, the Xycom Automation unit will have one of two possible touchscreen controllers: • The Microtouch Controller P/N 114084 • The Xycom Controller P/N 140554 These controllers function similarly. However, the following sections require attention to the type of controller installed.

  • Page 31: Using A Touchscreen

    Note Refer to the touchscreen manuals (included in the Documentation kit) for complete driver installation details. Depending upon the date of purchase, the Xycom Automation unit will have one of two possible touchscreen controllers: • The Microtouch Controller P/N 114084 •...
  • Page 32 3500 Series Flat Panel Industrial PC If you want to reconfigure the touchscreen to use the COM2 port, perform the following steps: 1. Disconnect the power. 2. Remove the lid. 3. Remove the touchscreen controller card (see Figure 3-18A). JUMPERS...
  • Page 33 Chapter Three - Installation Xycom Controller Note For VNHS with the AHIP6 board: If touch- screen is factory installed, the touchscreen is set up on the AUX port, making this port unavail- able. If you want to reconfigure the touchscreen to use the COM2 port, perform the following steps: 1.
  • Page 34 3. Locate the Touch Serial Mode folder. 4. Follow the installation instructions in the readme.txt file Calibrating the Touchscreen Depending upon the date of purchase, the Xycom Automation unit will have one of two possible touchscreen controllers: • The Microtouch Controller P/N 114084 •...

  • Page 35: Video Expansion

    Chapter Three - Installation Video Expansion This section deals with the hardware expansion capability of the video controller chip in DOS applications. Note It is not necessary to read this section if you are a Windows 95, Win- dows NT, or OS/2 user, do not plan to run DOS applications, and have not modified the default expansion mode in the BIOS setup menus.

  • Page 36: Mounting Considerations

    • Use the appropriate utility as shown in the Video Expansion Options table. Note For further assistance, call Xycom Automation technical support at 1- 800-289-9266. Mounting Considerations This section describes issues you must address before placing the unit inside an enclosure.
  • Page 37 Chapter Three - Installation • Do not select a location near equipment that generates excessive electromagnetic in- terference (EMI) or radio frequency interface (RFI) (equipment such as high power welding machines, induction heating equipment and large motor starters). • Place incoming power line devices (such as isolation or constant voltage transform- ers, local power disconnects, and surge suppressers) away from the unit.
  • Page 38 3500 Series Flat Panel Industrial PC Voltage Available Current AHIP6+ +3.3 VDC 10.6A +5 VDC 10.6A +12 VDC 4.88A -12 VDC 0.76A -5 VDC 0.50A Total expansion power not to exceed 100 watts Combined 3.3V and 5V expansion is 10.6A It is a good idea to use isolation transformers on the system’s incoming AC power line.

  • Page 39: Ac Power Cable

    Chapter Three - Installation Electrical Noise Electrical noise is seldom responsible for damaging components, unless extremely high energy or high voltage levels are present. However, noise can cause temporary malfunc- tions that can result in hazardous machine operation in certain applications. Noise may be present at certain times, may appear between widely spread intervals, or in some cases, may exist continuously.
  • Page 40 3500 Series Flat Panel Industrial PC Figure 3-19. 3515 AC Power Connector. Perform the following steps to create and attach the cable: 1. Cut wire cable to the desired length. 2. Strip 0.25-inch (6 mm) of insulation from the end of the conductor wire. No bare wire should be exposed when the cable is connected to the workstation.

  • Page 41: Cable Retainer Bracket

    Chapter Three - Installation 6. Use the screw provided to secure and strain-relief the power cable inside the con- nector. Plug the power cable into the power supply located on the side of the unit. 7. Once the power cable and other optional interface cables are installed, installation is complete.
  • Page 42 3500 Series Flat Panel Industrial PC such as dust, moisture, etc. Metal enclosures also help minimize the effects of electro- magnetic radiation that may be generated by nearby equipment. Once the conditions in the preceding sections have been met, follow the instructions below to mount the unit: 1.

  • Page 43: Hazardous Locations Installations

    Chapter Three - Installation Hazardous Locations Installations Xycom Automation designed the systems with the intention of meeting the requirements of Class I, Division 2 Hazardous Locations applications. Division 2 locations are those locations that are normally non-hazardous, but potentially hazardous should an accident expose the area to flammable vapors, gases or combustible dusts.

  • Page 44: Class I Locations

    3500 Series Flat Panel Industrial PC Warning - Explosion Hazard Do not disconnect equipment unless the power has been switched off or the area is known to be non-hazardous. Advertissement Risque D’ Explosion Avant de deconnecter l’equipment, coupler le courant ou s’assurer que l’emplacement est designe non dangereux.

  • Page 45: Division 1 Locations

    • Combustible dusts of an electrically conductive nature may be present in hazardous quantities. Note Xycom Automation 3515/3512KPM systems are not suitable for installa- tion within Division 1 locations. Note Electrical equipment cannot be installed in Division 1 locations unless they are intrinsically safe, installed inside approved explosion-proof en- closures, or installed inside approved purged and pressurized enclosures.
  • Page 46 3500 Series Flat Panel Industrial PC group rating will be. A device approved for installation within Class I, Group A locations may also be used in Groups B, C, or D. Note Approved Class I equipment may not be suitable for Class II installa- tions.

  • Page 47: Safety Agency Approval

    These workstations are designed to require no service in the course of normal operation by an operator. Safety Agency Approval The Xycom Automation systems are designed to meet the following standards: • Underwriters Laboratories Inc., UL 1604 Standard for Safety Electrical equipment for use in Class I and Class II, Division 2, locations •...

  • Page 48: Chapter Four - Keypad Utility Program

    The keypad utility uses a menu bar and pull-down menu system. All menu bars are dis- played across the top of the screen. “Xycom Automation KP Utility” and the current menu titles are shown at the bottom of the screen (see Figure 4-1).

  • Page 49: Main Menu

    Exit Files Macros Upload Download Utilities Xycom Automation KP Utility: MAIN L-Arrow, R-Arrow, Enter Figure 4-1. Main Menu Exit Exit closes open files and exits the utility. can also be used for this purpose and for exiting the other menus.
  • Page 50 3500 Series Flat Panel Industrial PC Files Menu You can save files containing keypad macro sets (a macro for each key) on disk, and then loaded them into memory to view, edit, teach, or download to the keyboard controller. Some of these files may be included in the utility package for use in reconfiguring the keypads for different software packages, and as templates for defining completely new keypad macro sets.
  • Page 51 Chapter Four–Keypad Utility Program Macros Edit Menu Command Description Exit Returns to the Main Menu. View Allows you to view, but not edit, the macro for the selected key. When View is chosen, the Exit option is displayed on the menu bar and a graphic representation of the cho- sen keypad is shown.
  • Page 52 3500 Series Flat Panel Industrial PC The last character of every macro is the end of the macro (EOM) and cannot be de- leted. Copy copies a sequence of scan codes from the macro into memory. To select the section to copy: 1.

  • Page 53: Keypad Scan Codes

    Chapter Four–Keypad Utility Program As the macro is sent, the keyboard controller programs its non-volatile memory with the new macros that become the new key definitions for the keypad. After programming the system will reboot. Utilities Menu When Utilities is selected, a menu bar displays four choices: Func Lock ON, Func Lock OFF, Clear EEPROM, and Exit.
  • Page 54 3500 Series Flat Panel Industrial PC 3512KPM F/A Key LED Off (Function Mode) F/A Key LED On (Alpha Mode) F17 / : 12 83 F0 83 F0 12 12 4C F0 12 F0 4C F18 / / 12 0A F0 0A F0 12...
  • Page 55 Chapter Four–Keypad Utility Program 3512KPM F/A Key LED Off (Function Mode) F/A Key LED On (Alpha Mode) menu) NOTES: • F11-F20 = SHIFT F1-F10 • F21-F30 = CTRL F1-F10 • F31-F40 = ALT F1-F10 • END, LEFT START, and EXPLORE keys are only available for 3515KPM units. Note If you make any changes to your keypad and want to set it back to the default settings, open the pkm file for your unit (e.g., 3512KPM.PKM...

  • Page 57: Chapter Five - Maintenance

    Chapter Five - Maintenance Chapter Five - Maintenance The 3500 series was designed to withstand the harsh environment of the factory floor. Routine maintenance can help keep your unit in good operating condition. Preventive maintenance consists of several basic procedures that significantly reduce the chance of system malfunction.
  • Page 58 Any questions regarding this issue may be directed to our support center at support@xycom.com. Please note Xycom recommends frequent back ups of your hard drive, especially before beginning any preventative maintenance procedures. Fuse Replacement The unit has no accessible fuse. Return the unit to Xycom Automation for fuse replace- ment.
  • Page 59 Chapter Five - Maintenance contact with the unit should be carefully evaluated under end-use conditions for com- patibility. You should also follow the use and compatibility recommendations of the material manufacturer. The table below lists general, chemical compatibility guidelines. Figure 5-2. Chemical Compatibility Chemical Class Effects Acids...
  • Page 60 3500 Series Flat Panel Industrial PC Lubricants Manufacturer Martemp® 2500 E.F. Houghton & Co. 303 W. Lehigh Ave. Philadelphia, PA 19133 (215) 666-4000 Nyogel® 795A Wm. J Nye P.O. Box G-927 Rheolube® 368 New Bedford, MA 02742 Rheolube® 723G (617) 966-6721 Rheolube®...
  • Page 61 Chapter Five - Maintenance Methylethylketone Spare Parts List Figure 5-6. Spare Parts List Description Xycom Automation Part Number 3515 Front Panel Assembly With touchscreen 132566-001 Without touchscreen 132579-001 3512KPM Touchscreen Replacement 135162-001 3515KPM Touchscreen Replacment 139963-001 Drives Hard Drive 109456-005...
  • Page 62 Xycom Automation test diagnostics. Follow the steps below to prepare the unit for shipment: 1. Obtain an RMA number for your unit by calling Xycom Automation headquarters, Prod- uct Repair Department at 1-800-289-9266 or 734-429-4971. Have the following informa- tion ready: •...

  • Page 63: Appendix A - Technical Specifications

    Appendix A – Technical Specifications Appendix A – Technical Specifications Hardware Specifications Figure A- 1. Hardware Specifications Characteristic Specification Mechanical Height 14.2" Width 19" Depth (Mounting Depth) 9.75" (9.00”) Weight 42 lbs Electrical 115-230 VAC 50-60 Hz 6.3A autosensing Power Supply 200 watts Available Power +3.3 VDC...
  • Page 64 3500 Series Flat Panel Industrial PC Altitude Operating Sea level to 10,000 feet (3048 m) Nonoperating Sea level to 40,000 feet (12192 m) Vibration* Operating 5-55 Hz 0.006” peak to peak displacement 56-2000 Hz 1.0g maximum acceleration Nonoperating 5-55 Hz 0.006”...

  • Page 65: Appendix B - Block Diagrams

    Appendix B – Block Diagrams Appendix B – Block Diagrams TOUCHSCREEN DC/AC INVERTER DCINV1 T/S CONT. TCH1 TCTRL1 BOARD DRAM SOCKETS PARCOM2 TCTRL1 AHIPST ONLY SHARP 15“ TFT INTERFACE COM1_4 LCD FLAT PANEL BOARD CPU BOARD KBMS1 BACKPLANE CONNS. (2 PCI) ATIDE1 PCIMG1 FDD1...
  • Page 66 3500 Series Flat Panel Industrial PC TOUCHSCREEN DC/AC INVERTER DCINV1 T/S CONT. TCH1 TCTRL1 BOARD DRAM SOCKETS PARCOM2 TCTRL1 SHARP 15“ TFT INTERFACE COM1_4 LCD FLAT PANEL BOARD CPU BOARD KBMS1 BACKPLANE CONNS. (2 PCI) ATIDE1 PCIMG1 FDD1 VGA1 INTERNAL...

  • Page 67: Appendix C - Pinouts

    Appendix C–Pinouts Appendix C – Pinouts This appendix provides the pinouts for the keyboard, AUX, LPT1, COM1, COM2, USB1, and VGA connectors. The following table defines abbreviations used in this Appendix. Abbreviation Definition No connect Keyboard Port Connectors This connector is a standard PS/2-compatible connector. Signal KB_DATA 5VFUSE...

  • Page 68: Parallel Port Connector (Lpt1)

    3500 Series Flat Panel Industrial PC Parallel Port Connector (LPT1) This is a 25-pin DB connector. Signal Signal STROBE AUTOFEED PD(0) PERROR PD(1) INIT PD(2) SELIN PD(3) PD(4) PD(5) PD(6) PD(7) PACK PBUSY SELECT Serial Port Connectors Serial ports RS-232 and RS-485 are supported on the AHIP6+ boards. Only one con- nector can be used at a time.

  • Page 69: Vga Connector

    Appendix C–Pinouts Technical Note For TXD termination, connect a 150Ω, ½ watt resistor from pin 3B to pin 4B, with pin 1B connected to pin 3B and pin 2B connected to pin 4B. For RXD termination, connect a 150Ω, ½ watt resistor from pin 8B to pin 9B, with pin 6B connected to pin 9B and pin 7B connected to pin 8B.

  • Page 70: External Floppy Connector

    3500 Series Flat Panel Industrial PC Signal Fused VCC ORB_GND DDCDAT HSYNC VSYNC DDCCLK External Floppy Connector This connector is only available if the unit is ordered without the internal floppy (since the floppy interface supports only one floppy option).

  • Page 71: Appendix D - Replacing Flat-Panel Display Bulbs

    Appendix D – Replacing Flat-Panel Display Bulbs Appendix D – Replacing Flat-Panel Display Bulbs We recommend sending the flat-panel display to Xycom Automation for bulb re- placement. However, if you would like to replace the bulbs on site, this appendix pro- vides instructions.
  • Page 72 3500 Series Flat Panel Industrial PC 4. Set the unit with the front panel down and loosen the four captive screws holding the front panel to the display adapter plate. 5. While securely holding the front panel, flip the unit over.
  • Page 73 Appendix D – Replacing Flat-Panel Display Bulbs Note Xycom Automation recommends replacing both bulbs at the same time. 12. Slide the new assemblies into the openings from which the old assemblies were removed. 13. Repeat steps 1 through 9 in reverse order to reassemble the unit.
  • Page 74 3500 Series Flat Panel Industrial PC 13. Insert the new bulb assembly, and fasten the screw to secure. Note Xycom Automation recommends replacing both bulbs at the same time. 14. Reverse steps 1 through 10 to reassemble the unit. 3512KPM, KPT, KPMT TFT Flat-Panel Display (Sharp #LQ12S41) 1.
  • Page 75 Figure D-4. Model #LQ12S41 13. Insert the new bulb assembly, and push in until the tab locks in place. Note Xycom Automation recommends replacing both bulbs at the same time. 14. Repeat steps 11 and 12 for the second bulb assembly.
  • Page 77 Index INDEX Exit ..........49, 50, 51, 52, 53, 54 3500............, 23, 24, 29, 57 Expansion Slots ............. 17 3512KPM5, 6, 7, 14, 15, 16, 17, 21, 25, 26, 35, 42, 45, External Floppy Connector..........70 47, 50, 54, 56, 61, 63, 66, 74 External Hardware Options ...........
  • Page 78 3500 Series Flat Panel Industrial PC Preparing for the Tests............. 9 TFT flat panel ............7, 13, 15 Product Repair & Customization Department ... 9, 62 touch screen PS/2 mini-DIN connector ..........67 calibrating..............34 Quick Start-up..............7 touchscreen5, 7, 13, 15, 17, 18, 25, 30, 31, 33, 34, 61, 62, Retainer Bracket (AC) or P-Clamp (DC).......
