XPA200-7984-I-OPT1, X-Band SSPA
UP
---------SELECT---------
--UTILITY-FUNCTIONS-MENU---
ENTER
----TIME:- 10:20:05AM----
-----DATE--09/15/94------
---SERIAL-MODE=RS232C---
ADDR=XXX-BAUD=YYYY-P=ZZ-
SERIAL-PORT-DATA-FORMAT=
-7-DATA,-2-STOP,-PARITY-
-DISPLAY-CONTRAST-=XX--
DISPLAY-BRIGHTNESS-=-XX-

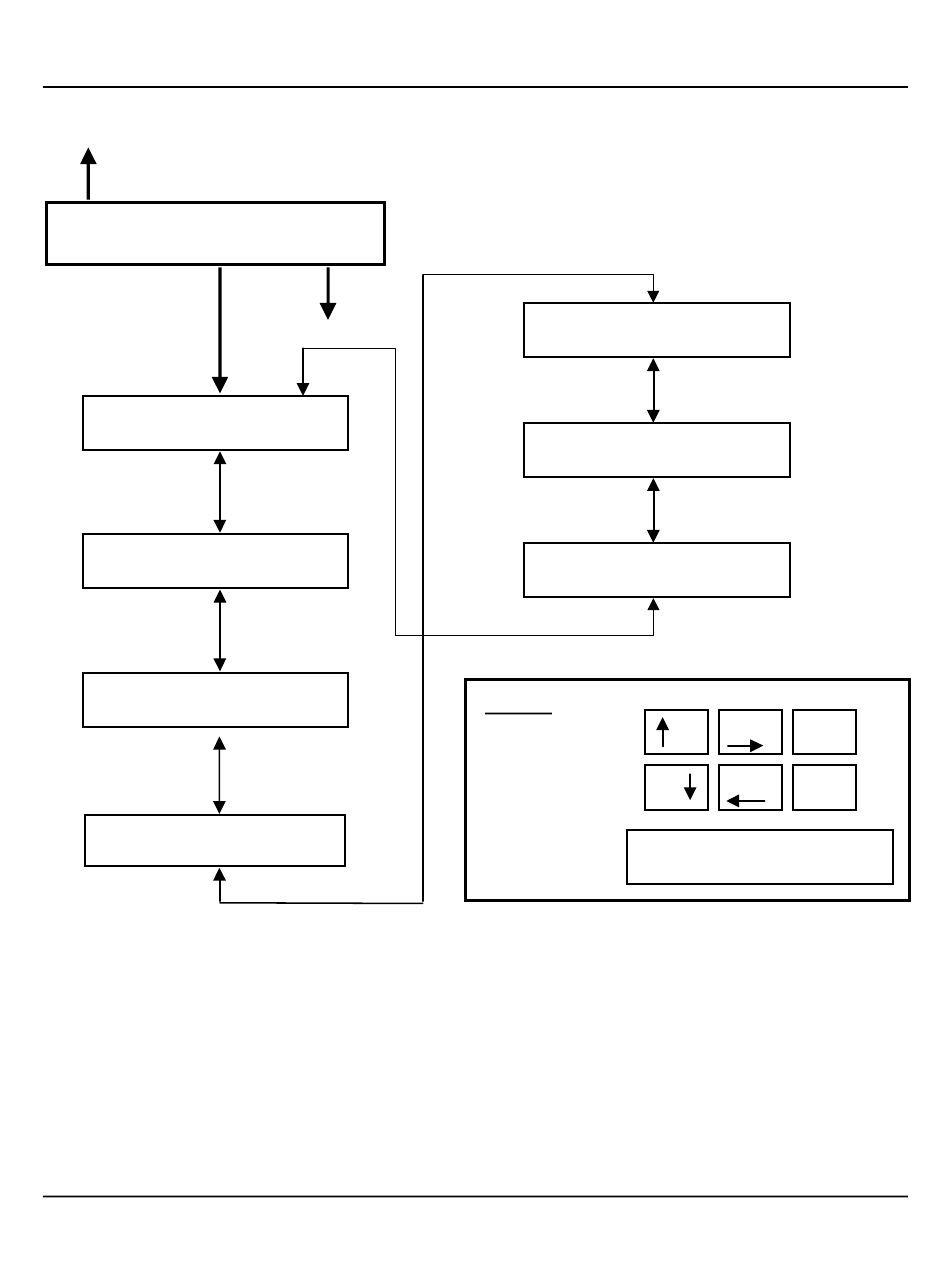

Figure 3-6.
XPA200-7984-I-OPT1, Rev.2
(See Para. 3.3.6)
DOWN
Utility Functions Menu Commands
FORWARD -RF-POWER-MONITOR
----OFFSET-=-+0.0dBm----
REVERSE-RF-POWER-MONITOR
----OFFSET-=-+0.0dBm----
--------LAMP-TEST-------
----------OFF-----------
LEGEND
KEY-PAD
DOWN
------------------------
DISPLAY
------------------------
System Operation
RIGHT ENTER
UP
LEFT
CLR
