Comtech EF Data XPA-200 Installation And Operation Manual page 42

XPA200-7984-I-OPT1, X-Band SSPA
UP
---------SELECT---------
--CURRENT-FAULTS-MENU---
ENTER
POWER-FAULTS:----+12V=OK
-12V=OK--VCC=OK---5V=OK-
(See Para. 3.3.4.1)
-----28-VDC-PS-=-OK-----
--10VPS1=OK--10VPS2=OK--
(See Para. 3.3.4.1)
---AMPLIFIER-TEMP-=-OK--
-FAN-1-=-OK--FAN-2-=-OK-
(See Para. 3.3.4.2,
Para. 3.3.4.3)
--M&C-PROCESSORS-=-OK---
------------------------
(See Para. 3.3.4.3)

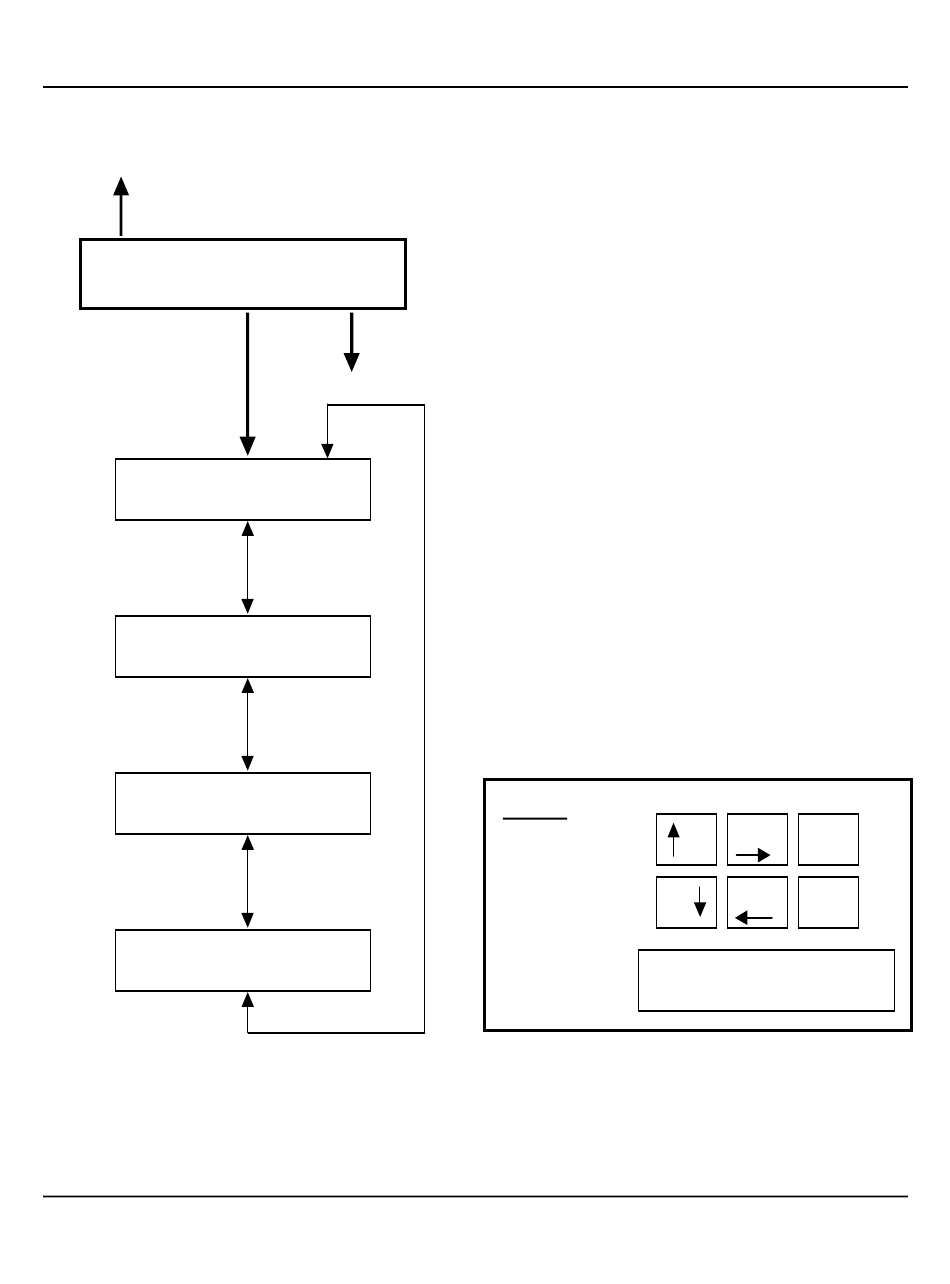

Figure 3-4.
XPA200-7984-I-OPT1, Rev.2
(See Para. 3.3.4)
DOWN
Currents Faults Menu Commands
LEGEND
KEY-PAD
DOWN
------------------------
DISPLAY
------------------------
System Operation
ENTER
RIGHT
UP
LEFT
CLR
3-6
