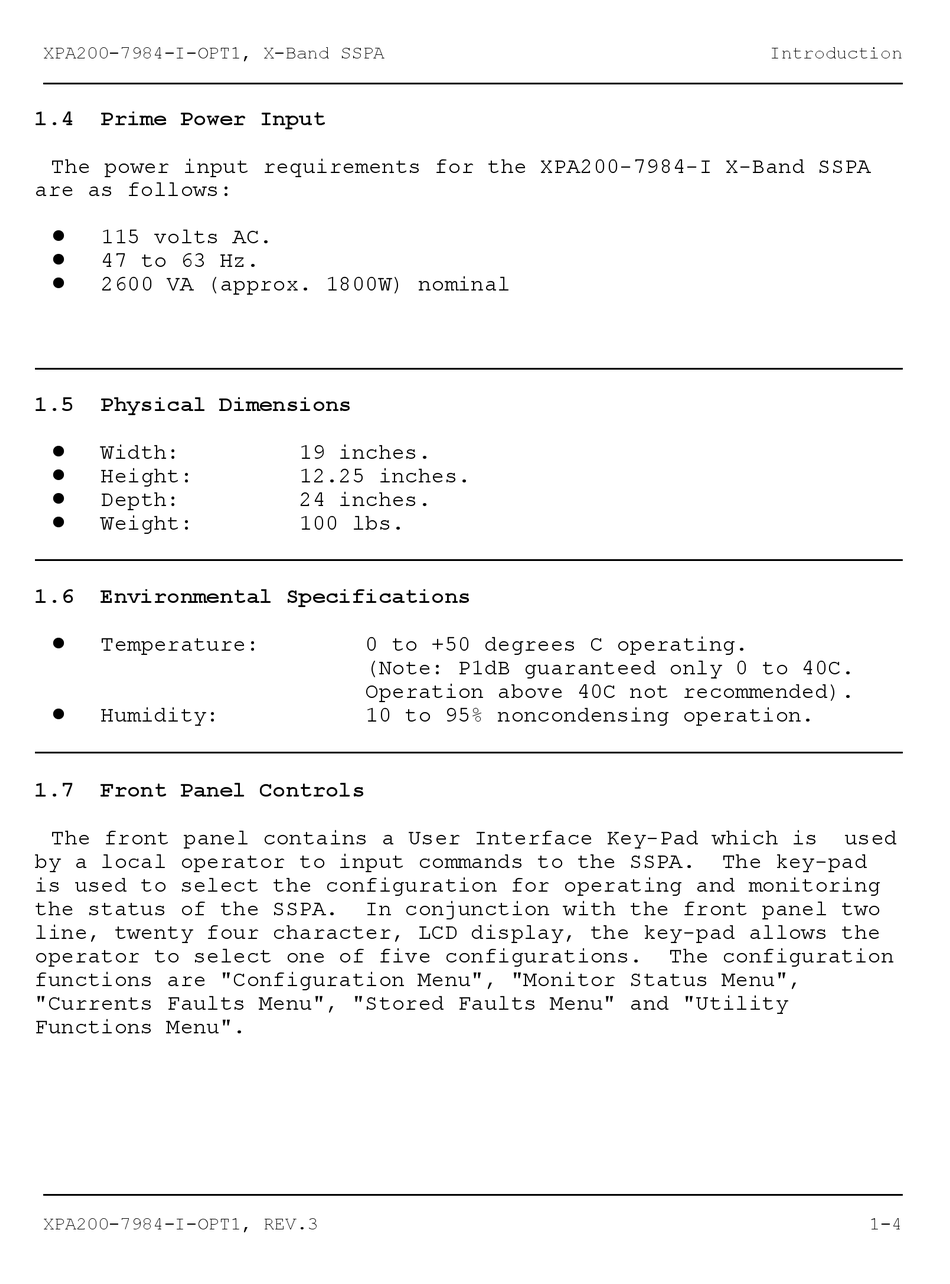

XPA200-7984-I-OPT1, X-Band SSPA
1.4 Prime Power Input
The power input requirements for the XPA200-7984-I X-Band SSPA
are as follows:
! 115 volts AC.
! 47 to 63 Hz.
! 2600 VA (approx. 1800W) nominal
1.5 Physical Dimensions
! Width:
! Height:
! Depth:
! Weight:
1.6 Environmental Specifications
! Temperature:
! Humidity:
1.7 Front Panel Controls
The front panel contains a User Interface Key-Pad which is
by a local operator to input commands to the SSPA.
is used to select the configuration for operating and monitoring
the status of the SSPA.
line, twenty four character, LCD display, the key-pad allows the
operator to select one of five configurations.
functions are "Configuration Menu", "Monitor Status Menu",
"Currents Faults Menu", "Stored Faults Menu" and "Utility
Functions Menu".
XPA200-7984-I-OPT1, REV.3
19 inches.
12.25 inches.
24 inches.
100 lbs.
0 to +50 degrees C operating.
(Note: P1dB guaranteed only 0 to 40C.
Operation above 40C not recommended).
10 to 95% noncondensing operation.
In conjunction with the front panel two
Introduction
used
The key-pad
The configuration
1-4
