XPA200-7984-I-OPT1, X-Band SSPA

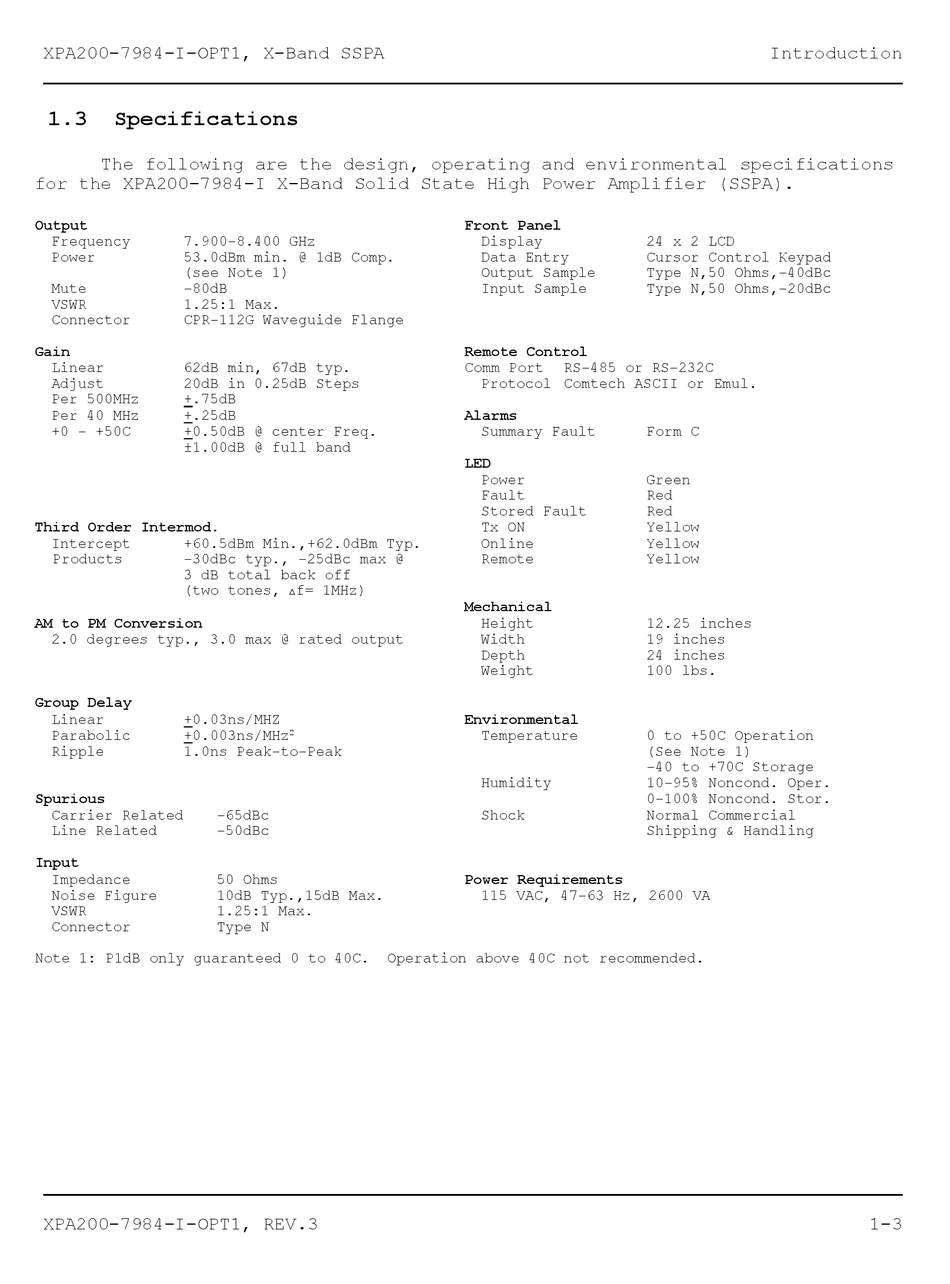

1.3 Specifications
The following are the design, operating and environmental specifications
for the XPA200-7984-I X-Band Solid State High Power Amplifier (SSPA).
Output
Frequency 7.900-8.400 GHz
Power 53.0dBm min. @ 1dB Comp.
(see Note 1)
Mute -80dB
VSWR 1.25:1 Max.
Connector CPR-112G Waveguide Flange
Gain
Linear 62dB min, 67dB typ.
Adjust 20dB in 0.25dB Steps
Per 500MHz +.75dB
Per 40 MHz +.25dB
+0 - +50C +0.50dB @ center Freq.
±1.00dB @ full band
Third Order Intermod.
Intercept +60.5dBm Min.,+62.0dBm Typ.
Products -30dBc typ., -25dBc max @
3 dB total back off
(two tones,
AM to PM Conversion
2.0 degrees typ., 3.0 max @ rated output
Group Delay
Linear +0.03ns/MHZ
Parabolic +0.003ns/MHz
Ripple 1.0ns Peak-to-Peak
Spurious
Carrier Related
Line Related
Input
Impedance
Noise Figure
VSWR
Connector
Note 1: P1dB only guaranteed 0 to 40C.
XPA200-7984-I-OPT1, REV.3
ª f= 1MHz)
2
-65dBc
-50dBc
50 Ohms
10dB Typ.,15dB Max.
1.25:1 Max.
Type N
Operation above 40C not recommended.
Front Panel
Display
Data Entry
Output Sample
Input Sample
Remote Control
Comm Port RS-485 or RS-232C
Protocol Comtech ASCII or Emul.
Alarms
Summary Fault
LED
Power
Fault
Stored Fault
Tx ON
Online
Remote
Mechanical
Height
Width
Depth
Weight
Environmental
Temperature
Humidity
Shock
Power Requirements
115 VAC, 47-63 Hz, 2600 VA
Introduction
24 x 2 LCD
Cursor Control Keypad
Type N,50 Ohms,-40dBc
Type N,50 Ohms,-20dBc
Form C
Green
Red
Red
Yellow
Yellow
Yellow
12.25 inches
19 inches
24 inches
100 lbs.
0 to +50C Operation
(See Note 1)
-40 to +70C Storage
10-95% Noncond. Oper.
0-100% Noncond. Stor.
Normal Commercial
Shipping & Handling
1-3
