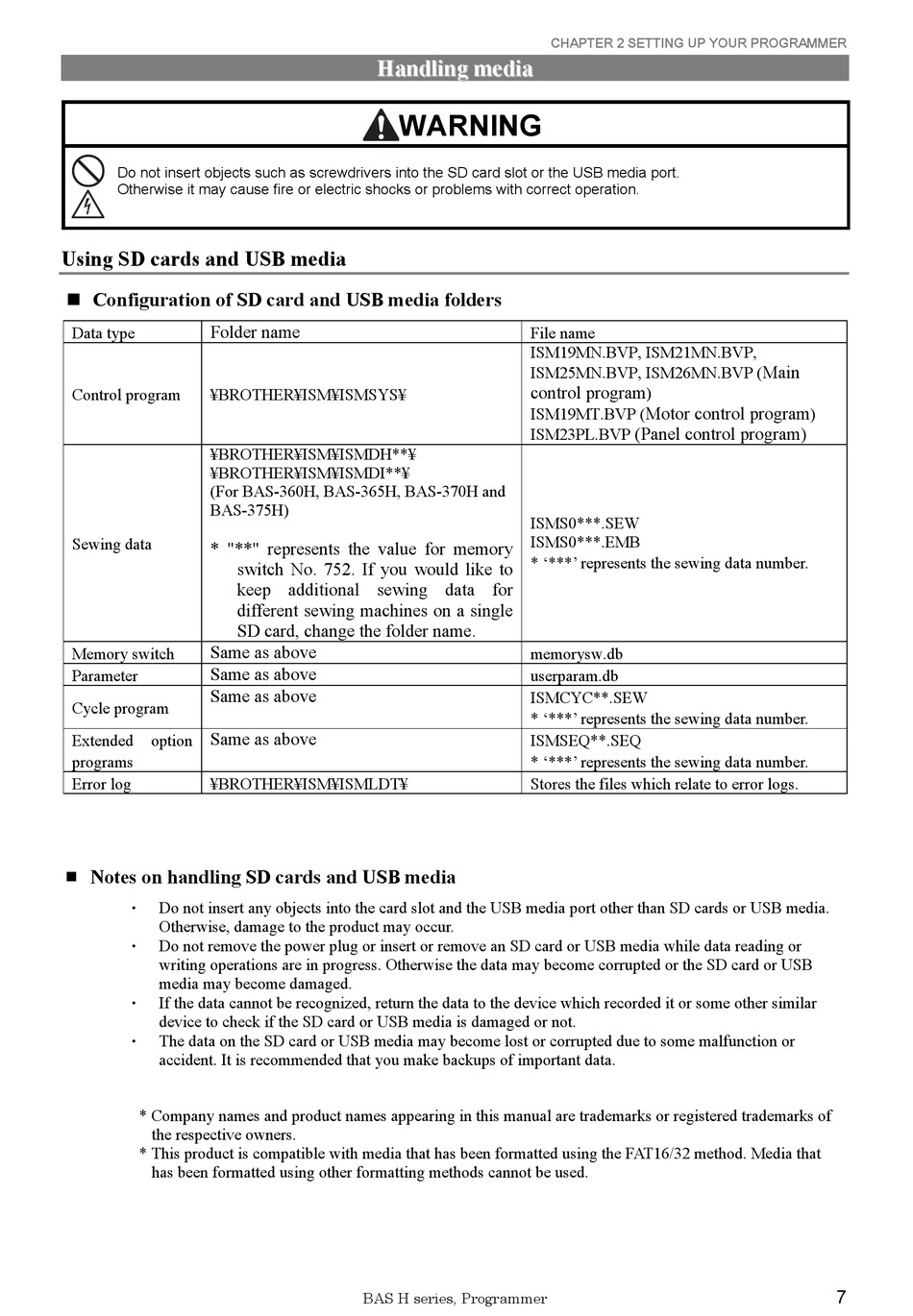

Handling Media; Using Sd Cards And Usb Media - Brother BAS H Series Instruction Manual

Do not insert objects such as screwdrivers into the SD card slot or the USB media port.
Otherwise it may cause fire or electric shocks or problems with correct operation.

Using SD cards and USB media

 Configuration of SD card and USB media folders
Folder name
Data type
Control program ¥BROTHER¥ISM¥ISMSYS¥
¥BROTHER¥ISM¥ISMDH**¥
¥BROTHER¥ISM¥ISMDI**¥
(For BAS-360H, BAS-365H, BAS-370H and
BAS-375H)
Sewing data
* "**" represents the value for memory
Same as above
Memory switch
Same as above
Parameter
Same as above
Cycle program
Same as above
Extended option
programs
Error log ¥BROTHER¥ISM¥ISMLDT¥
Notes on handling SD cards and USB media

Do not insert any objects into the card slot and the USB media port other than SD cards or USB media.
・
Otherwise, damage to the product may occur.
Do not remove the power plug or insert or remove an SD card or USB media while data reading or
・
writing operations are in progress. Otherwise the data may become corrupted or the SD card or USB
media may become damaged.
If the data cannot be recognized, return the data to the device which recorded it or some other similar
・
device to check if the SD card or USB media is damaged or not.
The data on the SD card or USB media may become lost or corrupted due to some malfunction or
・
accident. It is recommended that you make backups of important data.
* Company names and product names appearing in this manual are trademarks or registered trademarks of
the respective owners.
* This product is compatible with media that has been formatted using the FAT16/32 method. Media that
has been formatted using other formatting methods cannot be used.
H a n
H a n
WARNING
switch No. 752. If you would like to
keep additional sewing data for
different sewing machines on a single
SD card, change the folder name.
BAS H series, Programmer
CHAPTER 2 SETTING UP YOUR PROGRAMMER
d l i n g m e d i a
d l i n g m e d i a
File name
ISM19MN.BVP, ISM21MN.BVP,
ISM25MN.BVP, ISM26MN.BVP (
control program
ISM19MT.BVP (
ISM23PL.BVP
ISMS0***.SEW
ISMS0***.EMB
* '***' represents the sewing data number.
memorysw.db
userparam.db
ISMCYC**.SEW
* '***' represents the sewing data number.
ISMSEQ**.SEQ
* '***' represents the sewing data number.
Stores the files which relate to error logs.
Main
)
Motor control program
(Panel control program)
)
7
