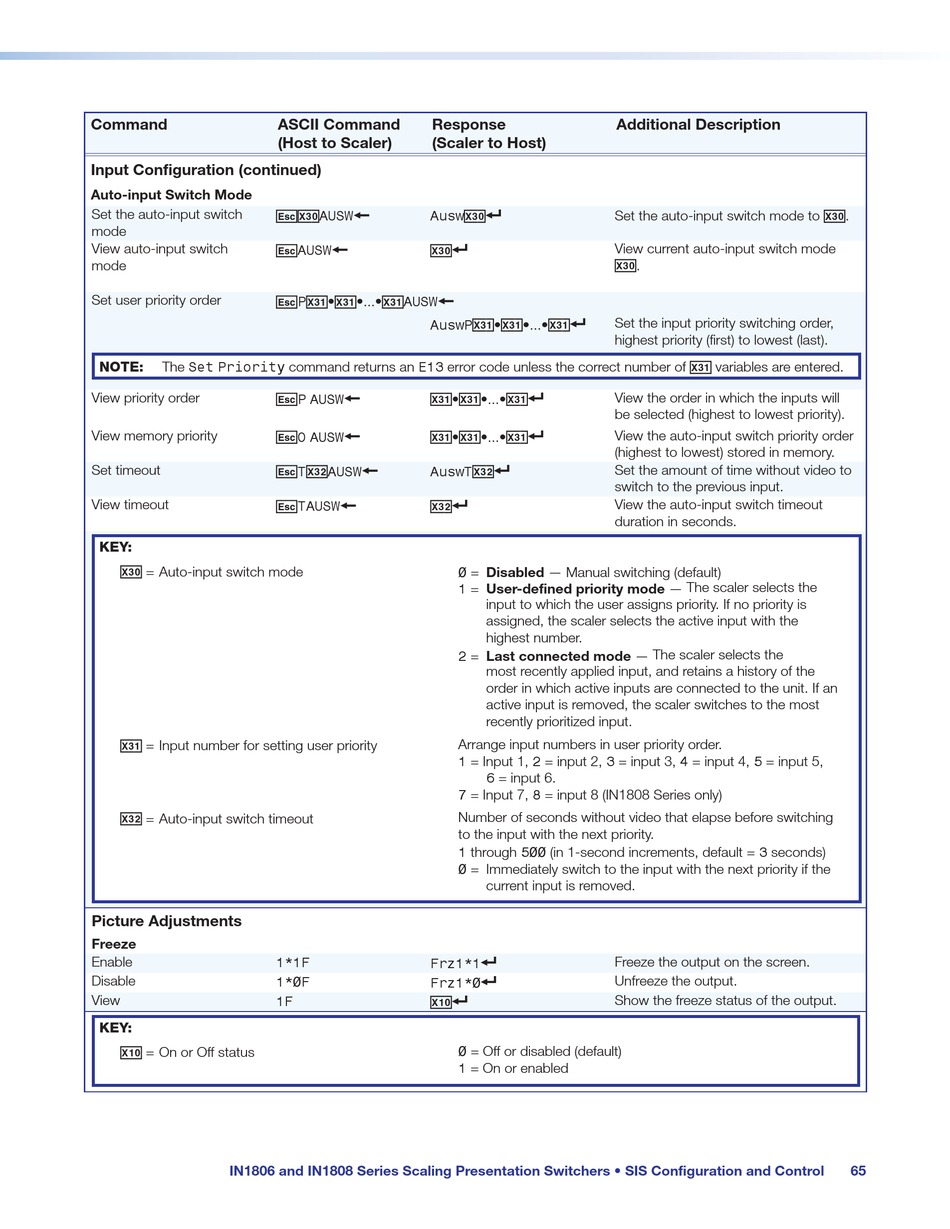

Command
Input Configuration (continued)
Auto-input Switch Mode
Set the auto-input switch
mode
View auto-input switch
mode
Set user priority order
NOTE:
The Set Priority command returns an E13 error code unless the correct number of
View priority order
View memory priority
Set timeout
View timeout
KEY:
X3)
= Auto-input switch mode
X3!
= Input number for setting user priority
X3@
= Auto-input switch timeout
Picture Adjustments
Freeze
Enable
Disable
View
KEY:
X1)
= On or Off status
IN1806 and IN1808 Series Scaling Presentation Switchers • SIS Configuration and Control
ASCII Command
Response
(Host to Scaler)
(Scaler to Host)
EX3)
}
AUSW
Ausw
E
}
X3)]
AUSW
E
X3!
X3!
X3!
}
P
•
•...•
AUSW
AuswP
E
}
X3!
P AUSW
•
E
}
X3!
O AUSW
•
E
X3@
}
T
AUSW
AuswT
E
}
X3@]
TAUSW
1*1F
Frz1*1
1*0F
Frz1*0
1F
X1)]
Additional Description
X3)]
Set the auto-input switch mode to
View current auto-input switch mode
X3)
.
X3!
X3!
X3!]
Set the input priority switching order,
•
•...•
highest priority (first) to lowest (last).
X3!
X3!]
View the order in which the inputs will
•...•
be selected (highest to lowest priority).
X3!
X3!]
View the auto-input switch priority order
•...•
(highest to lowest) stored in memory.
X3@]
Set the amount of time without video to
switch to the previous input.
View the auto-input switch timeout
duration in seconds.
0 = Disabled — Manual switching (default)
1 = User-defined priority mode — The scaler selects the
input to which the user assigns priority. If no priority is
assigned, the scaler selects the active input with the
highest number.
2 = Last connected mode — The scaler selects the
most recently applied input, and retains a history of the
order in which active inputs are connected to the unit. If an
active input is removed, the scaler switches to the most
recently prioritized input.
Arrange input numbers in user priority order.
1 = Input 1, 2 = input 2, 3 = input 3, 4 = input 4, 5 = input 5,
6 = input 6.
7 = Input 7, 8 = input 8 (IN1808 Series only)
Number of seconds without video that elapse before switching
to the input with the next priority.
1 through 500 (in 1-second increments, default = 3 seconds)
0 = Immediately switch to the input with the next priority if the
current input is removed.
]
Freeze the output on the screen.
]
Unfreeze the output.
Show the freeze status of the output.
0 = Off or disabled (default)
1 = On or enabled
X3)
.
X3!
variables are entered.
65
