Verbose mode
X3%
=
Model name
X3^
=
Part number
X3(
=
Aspect ratio setting
X4)
=
Screen saver mode
X4@
=
Video output mute
X4#
=
User logo number
X4$
=
HDCP status

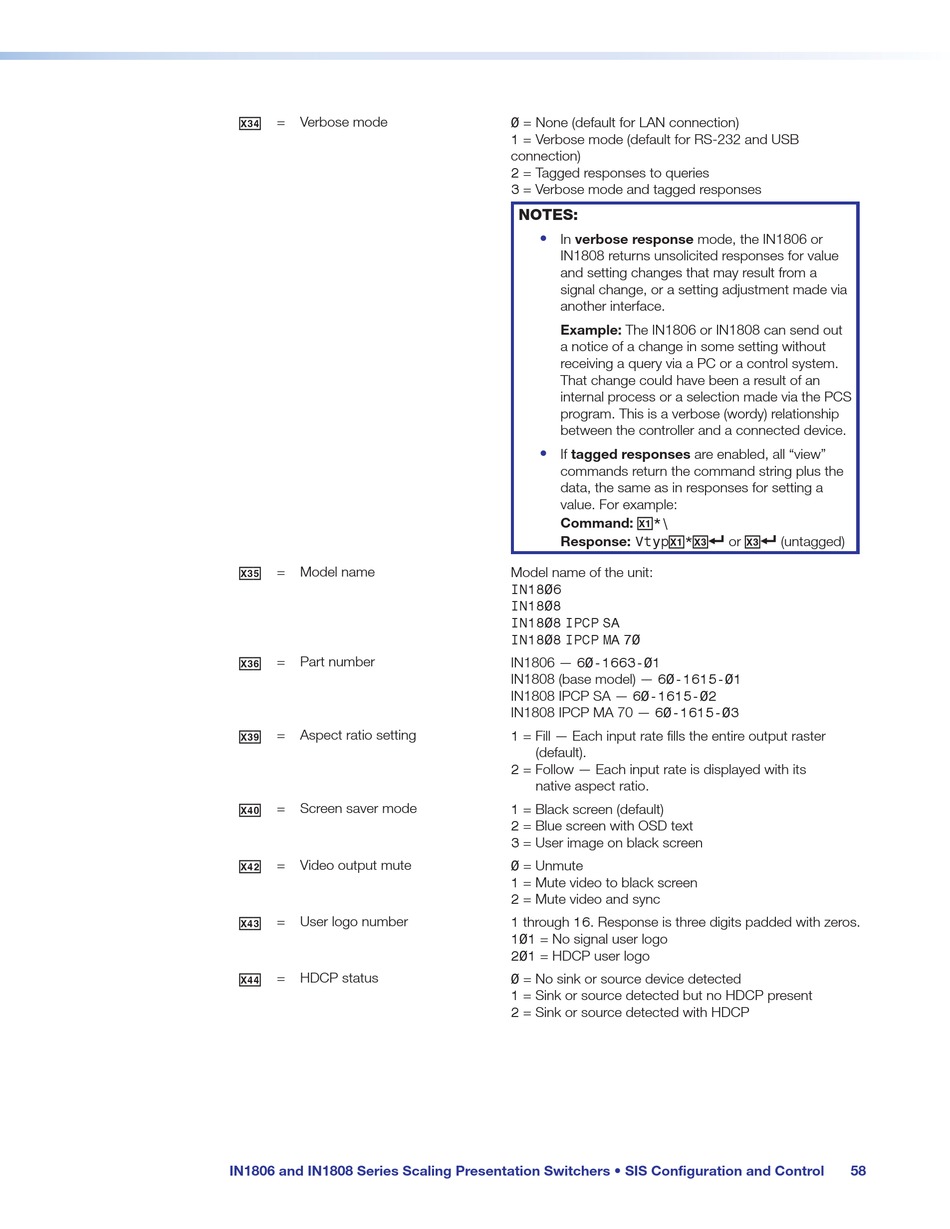

IN1806 and IN1808 Series Scaling Presentation Switchers • SIS Configuration and Control
0 = None (default for LAN connection)
1 = Verbose mode (default for RS-232 and USB
connection)
2 = Tagged responses to queries
3 = Verbose mode and tagged responses
NOTES:
•
In verbose response mode, the IN1806 or
IN1808 returns unsolicited responses for value
and setting changes that may result from a
signal change, or a setting adjustment made via
another interface.
Example: The IN1806 or IN1808 can send out
a notice of a change in some setting without
receiving a query via a PC or a control system.
That change could have been a result of an
internal process or a selection made via the PCS
program. This is a verbose (wordy) relationship
between the controller and a connected device.
•
If tagged responses are enabled, all "view"
commands return the command string plus the
data, the same as in responses for setting a
value. For example:
X!
Command:
*\
X!
Response: Vtyp
*
Model name of the unit:
IN1806
IN1808
IN1808 IPCP SA
IN1808 IPCP MA 70
IN1806 — 60-1663-01
IN1808 (base model) — 60-1615-01
IN1808 IPCP SA — 60-1615-02
IN1808 IPCP MA 70 — 60-1615-03
1 = Fill — Each input rate fills the entire output raster
(default).
2 = Follow — Each input rate is displayed with its
native aspect ratio.
1 = Black screen (default)
2 = Blue screen with OSD text
3 = User image on black screen
0 = Unmute
1 = Mute video to black screen
2 = Mute video and sync
1 through 16. Response is three digits padded with zeros.
101 = No signal user logo
201 = HDCP user logo
0 = No sink or source device detected
1 = Sink or source detected but no HDCP present
2 = Sink or source detected with HDCP
X#]
X#]
or
(untagged)
58
