ZCU102 Software
Install and Board
Setup
February 2019
XTP435

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZCU102 and is the answer not in the manual?

Questions and answers

Related Manuals for Xilinx ZCU102

Summary of Contents for Xilinx ZCU102

  • Page 1 ZCU102 Software Install and Board Setup February 2019 XTP435...

  • Page 2: Revision History

    NOTICE OF DISCLAIMER: The information disclosed to you hereunder (the “Information”) is provided “AS-IS” with no warranty of any kind, express or implied. Xilinx does not assume any liability arising from your use of the Information. You are responsible for obtaining any rights you may require for your use of this Information.
  • Page 3 ZCU102 Software Install and Board Setup Xilinx ZCU102 Board ˃ Software Requirements ˃ ZCU102 Hardware Setup ˃ UART Driver Install ˃ Terminal Setup ˃ Clock Setup ˃ Ethernet Setup ˃ Optional Hardware Setup ˃ References ˃ Note: This presentation applies to the ZCU102...

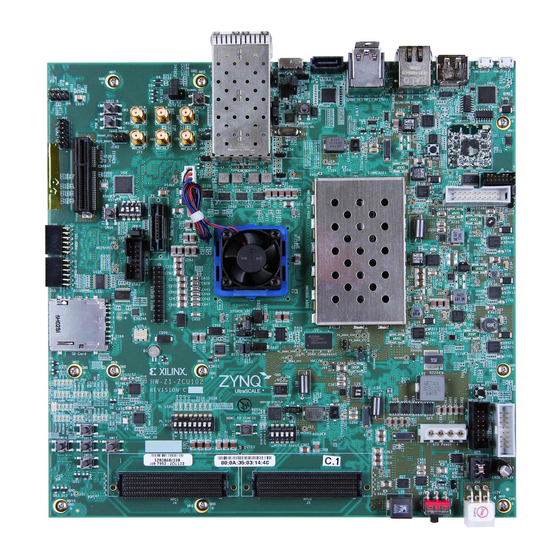

  • Page 4 Xilinx ZCU102 Board...

  • Page 5: Software Requirements

    Software Requirements Xilinx Vivado Design Suite 2018.3, HL System Edition with SDK ˃ Note: Presentation applies to the ZCU102...
  • Page 6 ZCU102 Hardware Setup ZCU102 Kit Hardware ˃ contents ZCU102 Board Ethernet cable USB Hub 2 Micro USB cables Power supply Note: Presentation applies to the ZCU102...
  • Page 7 ZCU102 Hardware Setup Set S6 to 1111 (1 = GND, Position 1 → Position 4) ˃ Used for most tutorials; this sets the Boot Mode to 0x0000, JTAG as per UG1085...
  • Page 8 ZCU102 Hardware Setup Set S6 to 1011 (1 = GND, Position 1 → Position 4) ˃ For booting from QSPI, as seen in XTP434...
  • Page 9 USB UART connector (J4) on the ZCU102 board Connect a USB Type-A to Micro-B ˃ cable to the USB JTAG (Digilent) (J87) connector on the ZCU102 board Connect these cables to your PC ˃ Note: Presentation applies to the ZCU102...
  • Page 10 ZCU102 Hardware Setup Connect the included Ethernet cable ˃ to the ZCU102 and connect it to the Host computer Note: Presentation applies to the ZCU102...
  • Page 11 ZCU102 Hardware Setup Connect the power supply to the ˃ ZCU102 (J15) Connect this cable a power outlet Power on the ZCU102 board for the ˃ UART driver installation Note: Presentation applies to the ZCU102...
  • Page 12 UART Driver Install Install Si Labs CP210x USB UART Drivers ˃ Refer to UG1033 for details on installing the USB to UART Drivers Note: Presentation applies to the ZCU102...
  • Page 13 UART Driver Install Determine the COM Port numbers for your system ˃ Open the Device manager ˃ Control Panel → System → Device Manager There will be four “Silicon Labs Quad CP210x” COM ports, 0 through 3 Interface 0 & 1 are for the ARM processor Interface 2 is for PL Fabric (MicroBlaze) use Interface 3 is for the MSP430 The COM Port numbers will vary from system to system...

  • Page 14: Terminal Setup

    Terminal Setup Refer to UG1036 regarding Tera Term installation ˃ Board Power must be on before starting Tera Term ˃ Start the Terminal Program ˃ Select the desired COM Port Set the baud to 115200 Note: Close Tera Term while using System Controller GUI...

  • Page 15: Clock Setup

    Clock Setup See XTP433 for details on using the System Controller GUI ˃ The latest firmware must be used with this GUI; details on updating it are in ˃ XTP433 Note: Presentation applies to the ZCU102...

  • Page 16: Setting The Clocks

    Setting the clocks Select the Set tab underneath the Clocks tab ˃ Enter 156.25 for the Si5328 and click the Set Si5328 Frequency button ˃ Note: Presentation applies to the ZCU102...

  • Page 17: Ethernet Setup

    Ethernet Setup Open the Windows Control Panel ˃ Set to View by Category Click on “View network status and tasks” ˃ Note: Presentation applies to the ZCU102...
  • Page 18 Ethernet Setup Click on “Change adapter settings” ˃ Note: Presentation applies to the ZCU102...
  • Page 19 Ethernet Setup Right-click on the Gigabit Ethernet Adapter that you will be using for this ˃ test and select Properties Note: Presentation applies to the ZCU102...
  • Page 20 Ethernet Setup Click Configure ˃ Set the Link Speed & Duplex to Auto Negotiation then click OK Note: Presentation applies to the ZCU102...
  • Page 21 Ethernet Setup Reopen the properties after the last step ˃ Double-click the Internet Protocol Version 4 ˃ Set your host to this IP Address: ˃ Note: Presentation applies to the ZCU102...
  • Page 22 ˃ 1 to 2 3 to 4 5 to 6 7 to 8 Connect the PROTO ˃ header, J3 6 to 8 10 to 12 14 to 16 18 to 20 22 to 24 Note: Presentation applies to the ZCU102...
  • Page 23 Mictor Breakout Adapter Plug Part # ZX104LN Jumper odd side as follows: ˃ 7 to 11 15 to 19 23 to 27 31 to 35 9 to 13 17 to 21 25 to 29 33 to 37 Note: Presentation applies to the ZCU102...
  • Page 24 6 to 8 10 to 16 (will need a wire) 18 to 20 22 to 24 26 to 28 36 to 38 (will need a wire) Insert this into the P6, the EMIO ARM Trace/Debug ˃ Note: Presentation applies to the ZCU102...
  • Page 25 Optional Hardware Setup For testing Bank 230, ˃ Optical Loopback Adapters www.molex.com SFP Loopback Adapter, 5.0 db Attenuation Part # 74765-0904 The ZCU102 uses 4 adapters ˃ Note: Presentation applies to the ZCU102...
  • Page 26 Optional Hardware Setup Attach two FMC XM107 board to the FMC HPC connectors ˃ Available through Whizz Systems ˃ Note: Presentation applies to the ZCU102...
  • Page 27 Optional - Setting FMC HPC0 clock Using the SCUI GUI, select the XM107 tab under the HPC0 tab, under the ˃ FMC tab For the IBERT FMC testing, set 163, and click the Set SI570 button ˃ Note: Presentation applies to the ZCU102...
  • Page 28 Optional - Setting FMC HPC1 clock Using the SCUI GUI, select the XM107 tab under the HPC1 tab, under the ˃ FMC tab For the IBERT FMC testing, set 163, and click the Set SI570 button ˃ Note: Presentation applies to the ZCU102...
  • Page 29 Optional Hardware Setup Two SMA Cables ˃ www.rosenbergerna.com Part number: 72D-32S1-32S1-00610A Optional: SMA Quick connects ˃ RADIALL Part number: R125791501 Available here here Note: Presentation applies to the ZCU102...
  • Page 30 Hook up the SMA cables as shown ˃ IBERT Test: ˃ J70 to J72 (Red) J69 to J71 (Yellow) IPI Clocking Test ˃ Connect J79 and J80 (Green) to a 148.5 MHz clock source Note: Presentation applies to the ZCU102...
  • Page 31 Optional Hardware Setup Using a common HDMI cable, connect ˃ an HDMI Monitor to the top HDMI port (P7) Note: Presentation applies to the ZCU102...
  • Page 32 Optional SD Card Testing Hardware Setup Set S6 to 1000 (1 = GND, Position 1 → Position 4) ˃ For booting from SD Cards (See AR68682 for more details)
  • Page 33 Optional SD Card Testing Hardware Setup Testing with the SD Cards requires additional hardware ˃ See RDF0377 for the SD Card images/files ˃ Copy the contents of the HDMI_Input folder onto an SD card ˃ Note: See AR67775 for details on SD card usage...
  • Page 34 Optional SD Card Testing Hardware Setup Attach a Display Port cable to the ZCU102 board and connect to the a 4K ˃ monitor Note: Presentation applies to the ZCU102...
  • Page 35 Insert a KCU105 or VCU108 PCIe board with connector into the Root Port ˃ connector on the ZCU102 The KCU105 or VCU108 PCIe Board must be powered up and programmed with the PCIe PIO design at the start of the test Note: Presentation applies to the ZCU102...
  • Page 36 Optional SD Card Testing Hardware Setup The disk drive testing requires an SATA hard drive and a USB3 thumb drive, ˃ all formatted to FAT32 Attach the SATA hard drive to P9 and powered by J10 as shown ˃ Note: Presentation applies to the ZCU102...
  • Page 37 Optional SD Card Testing Hardware Setup Attach a USB 3.0 Thumb drive to a USB adapter cable ˃ Note: Production ZCU102 Kits will have a different USB Adapter...
  • Page 38 References...
  • Page 39 References Vivado Release Notes ˃ Vivado Design Suite User Guide - Release Notes – UG973 https://www.xilinx.com/support/documentation/sw_manuals/xilinx2018_3/ ‒ ug973-vivado-release-notes-install-license.pdf Vivado Design Suite 2018 - Vivado Known Issues https://www.xilinx.com/support/answers/70860.html ‒ Vivado Programming and Debugging ˃ Vivado Design Suite Programming and Debugging User Guide – UG908 http://www.xilinx.com/support/documentation/sw_manuals/xilinx2018_3/...
  • Page 40 Documentation...
  • Page 41 Xilinx Zynq UltraScale+ MPSoC ZCU102 Evaluation Kit https://www.xilinx.com/products/boards-and-kits/ek-u1-zcu102-g.html ‒ ZCU102 Board User Guide – UG1182 ‒ https://www.xilinx.com/support/documentation/boards_and_kits/zcu102/ ug1182-zcu102-eval-bd.pdf ZCU102 Evaluation Kit Quick Start Guide User Guide – XTP426 ‒ https://www.xilinx.com/support/documentation/boards_and_kits/zcu102/ xtp426-zcu102-quickstart.pdf ZCU102 - Known Issues Master Answer Record ‒ https://www.xilinx.com/support/answers/66752.html...
