Step A6: Group The Io - Solid State Logic C10 HD Installation Manual

A: IO Configuration
S A6: G
tep RoUp the

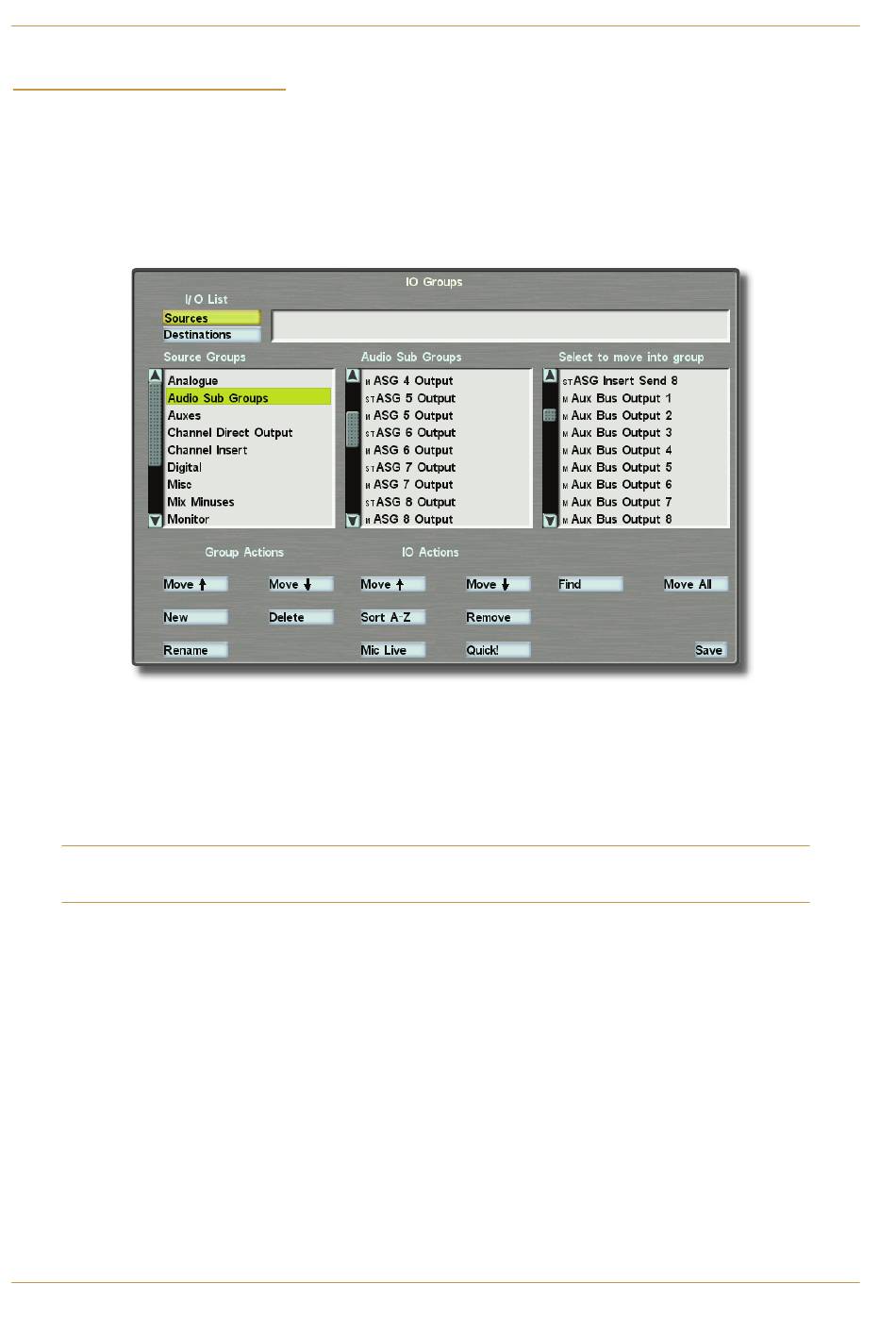

‰ Touch the Groups button to open the io Groups display, which is used to arrange inputs and outputs into user-
friendly Groups – these are the groups seen within the console routing system so clarity and logical arrangement will
definitely help you when routing. The console has number of pre-configured groups, many of which are inherent to the
console's structure, such as Audio Sub Groups. Custom groups can be created for any grouping that suits your
operational context, such as Digital, Analogue, Mics, Studio Floor etc.
The pop-up has two pages, Sources and destinations, each of which has three scroll windows:
‰ Touch Sources to group inputs, or touch destinations to group outputs. While the following description
describes Sources grouping, the destinations page works in precisely the same way.
When the Sources button (upper left) is selected, the right-hand window shows all of the sources in one long list, ready
to be subdivided by signal type into the Source Groups shown in the left hand list. The middle window lists those
sources already placed into whichever source group is currently selected (in the example shown above, dVd, cd, AeS
in 1-9 to 1-15 are already placed in the digital source group).
If your console is connected to a MORSE router, any IO sourced via that router will be coloured blue to distinguish it
from other IO. See the MORSE supplement in Appendix B of this manual for more details.
‰ For each new group to be created, touch new, enter the name for the new group in the pop-up which appears, and
press ok. Group delete and Rename functions are also available.
