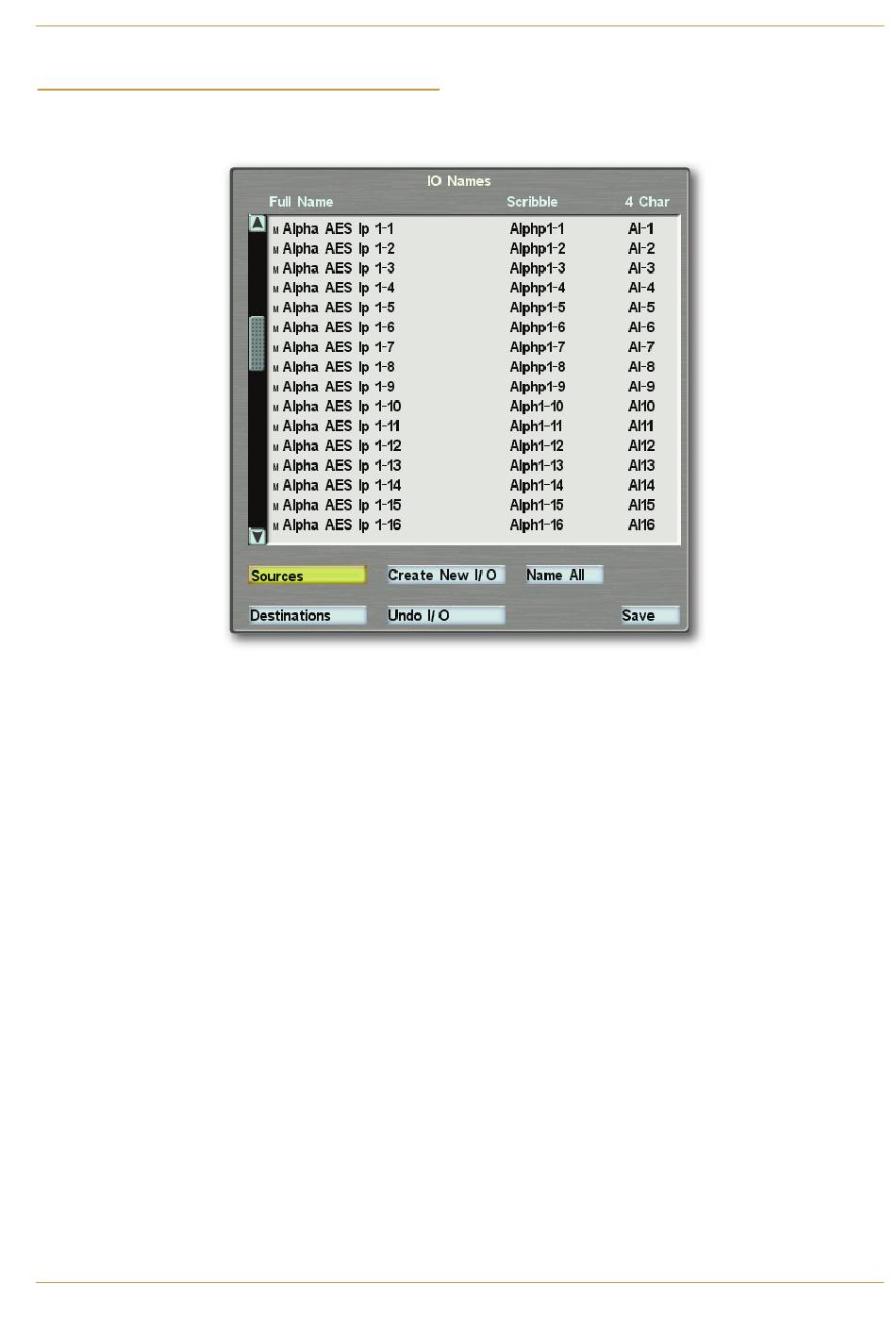

‰ Touch the names button to open the io names display, which is used to name physical inputs and outputs, and
create suitable multichannel 'bundles'. It has two pages: Sources and destinations:
Initially, sources are listed with default names. These names are constructed as follows:
The IO type is displayed first, with sources from an Alpha-Link prefixed Alpha. IO type labels include the following:
-
io type
AES input
Mic card
Line in on Alpha-Link or DHD Stagebox IO card
Line in on DHD Stagebox Line In card
Line in on B-RIO card
DHD Stagebox SDI card
- Signals to/from cards which include both inputs and outputs then display input (ip or in) or output (op or out)
- Signals to/from B-RIO racks and DHD stageboxes are appended with their module number (as defined in the link Use
display – See Step A4) hyphenated with the individual signal number.
For example, the fourth mic input on the second Alpha-Link will be listed as Alpha mic ip 2-4.
