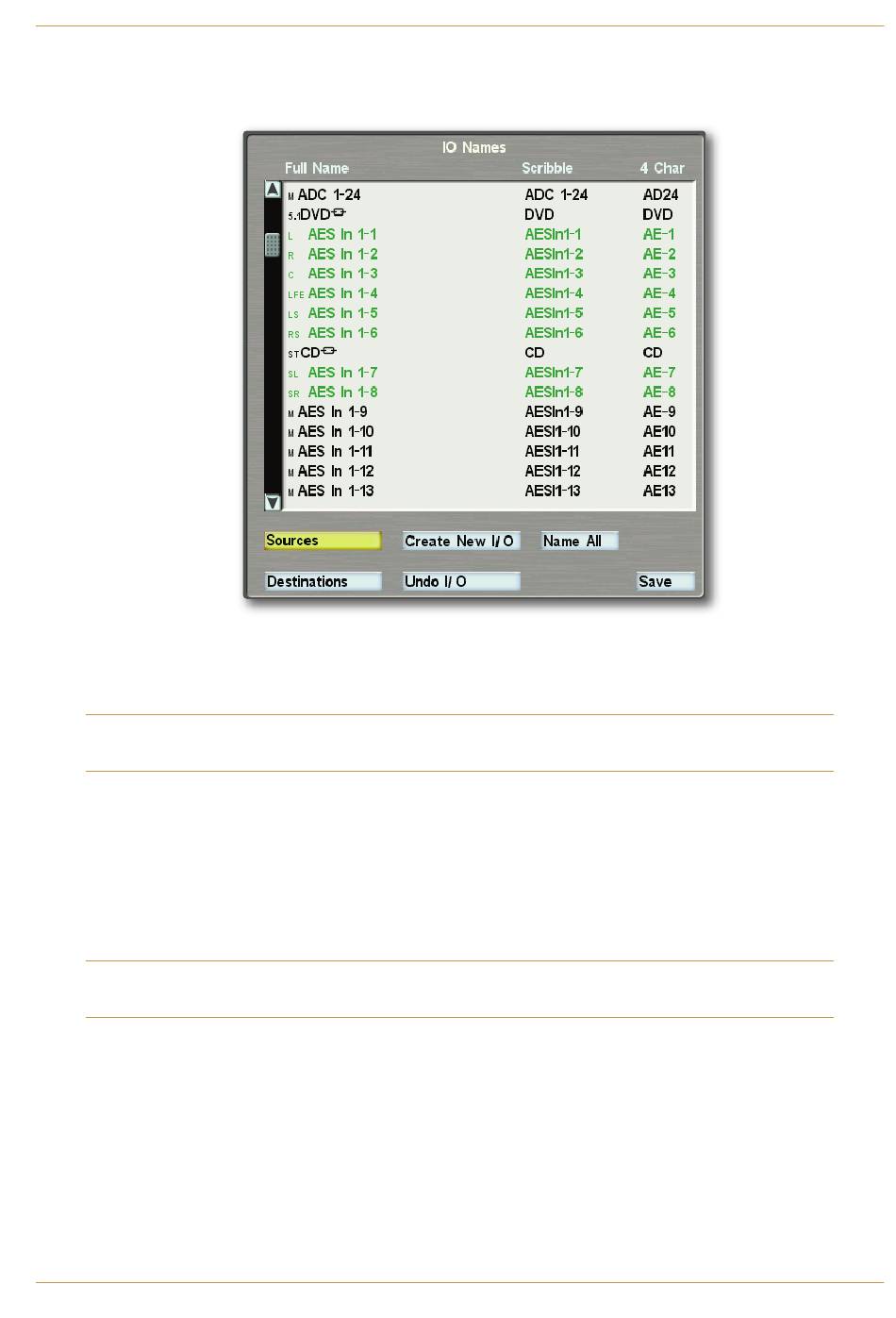

Components are displayed in green in the names list underneath their bundle name. In the example below, AES digital
inputs 1-1 to 1-6 are fed from a DVD player, so they have been made into a 5.1 source called dVd:
c io
UStomiSinG nAmeS
When you are sure of a signal's connection to the outside world, you may give it a more obvious name (eg. mic A-1, tie
line 4, cd).
MORSE router Sources and Destinations will appear in the list in blue, indicating that it is not possible to rename
these signals from the console.
‰ Touch an entry in the Full name list, enter a new name in the QWERTY pop-up which appears, and press ok.
With the name All box lit, renaming one input will automatically add the numeral 1 to the given name and
simultaneously rename all subsequent inputs of that type with incrementing numbers.
The Scribble column shows how the name will appear in the 8-character scribble strip displays on the console and the
4 char column shows how the names will appear in the 4-character Master Channel displays – both are automatically
derived from the Full name column, but these may individually be edited for better clarity and less ambiguity if required.
Note that renaming the Full Name will result in both shortened versions being renamed. It is therefore important to
settle on the Full Name before editing the shortened versions.
‰ When you've finished modifying items in the Sources or destinations list, make sure you select the Save box
before repeating the process for the other list. When both lists are configured, touch anywhere outside the display to
close it.
