Fader Panel Removal; Fader Panel Removal; Tools Needed - Solid State Logic C10 HD Installation Manual

S.1 F p
AdeR AneL
Applies to channel and centre section fader panels.
t n :
ooLS eeded
• 2mm Hex Driver
• Module Pullers (2)
p
RocedURe
1. Shutdown and then switch off the console at both power input
panels. Remove both input power leads.
2. Remove the three 2mm hex screws at the front edge of the
fader panel. Screw the module pullers into the two outer holes.
3. Slowly lift the front edge of the fader panel upwards until the
fader motors are visible and are just clear of the front supporting

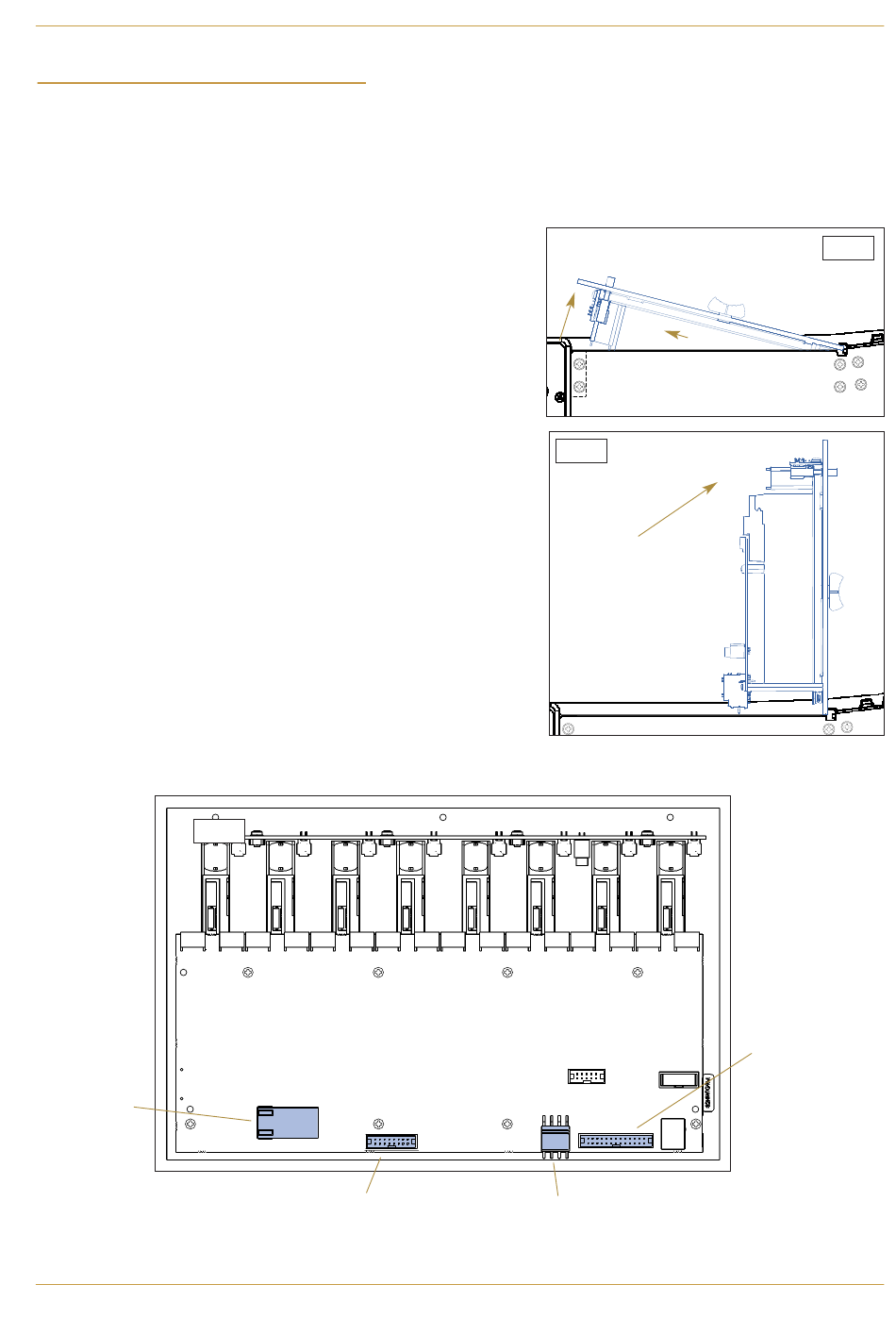

rail in the console. Refer to diagram S1-1.
The rear edge of the fader panel sits in a slot and will need to
pull forward by approximately 5mm before the panel can be
raised.
4. Tilt the panel upwards at the front until the panel sits vertically
on its rear edge. Refer to diagram S1-2.
The connecting cables will prevent the panel from being lifted out of
the frame at this stage.
5. Remove the four connecting cables at the lower rear edge of the
panel as indicated in diagram S1-3.
S.1-3
RJ45
Network
C10 HD Installation Manual
R
eMoVAL
16W Ribbon
Data
S.1-2
4W Molex
POWER
Section 7: Service Information
Fader Panel
S.1-1
26W Ribbon
Data + Power
| Page 7-1
