Eyeconix; Image Specifications; Updates - Solid State Logic C10 HD Installation Manual

File Transfer and Backup
e
yeconix

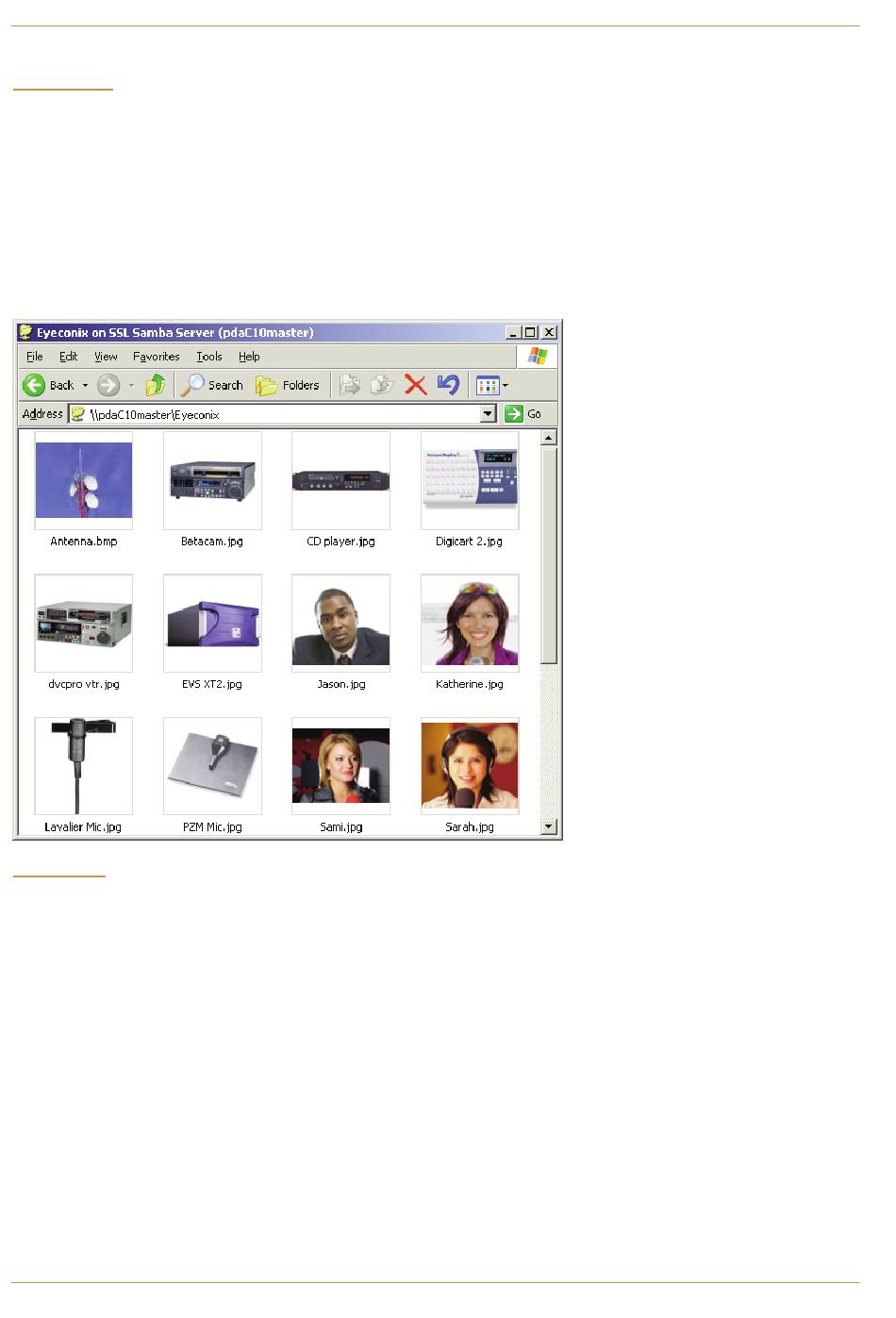

The Graphic Images used as C10 Eyeconix Channel Labels are stored in this folder.
To add images, simply copy or paste them into the folder and they will then automatically appear in the console LOAD
EYECON popup; see the Operator's Reference Manual for additional information.
i S
mAGe peciFicAtionS
Images can be either .bmp or .jpg format and should have a colour depth of 24 bits (which is the default setting on most
graphics programmes) File names can be a maximum of eleven characters. Although images will be automatically re-sized,
for best results you should prepare the images such that they have a width of 109 pixels and a height of 83 pixels.
U
pdAteS
C10 software update files are placed in this folder. Full details are provided in the install notes that accompany a C10
software update.
Page 4-6 | Section 4: Configuration C10 HD Installation Guide
