K: SNMP

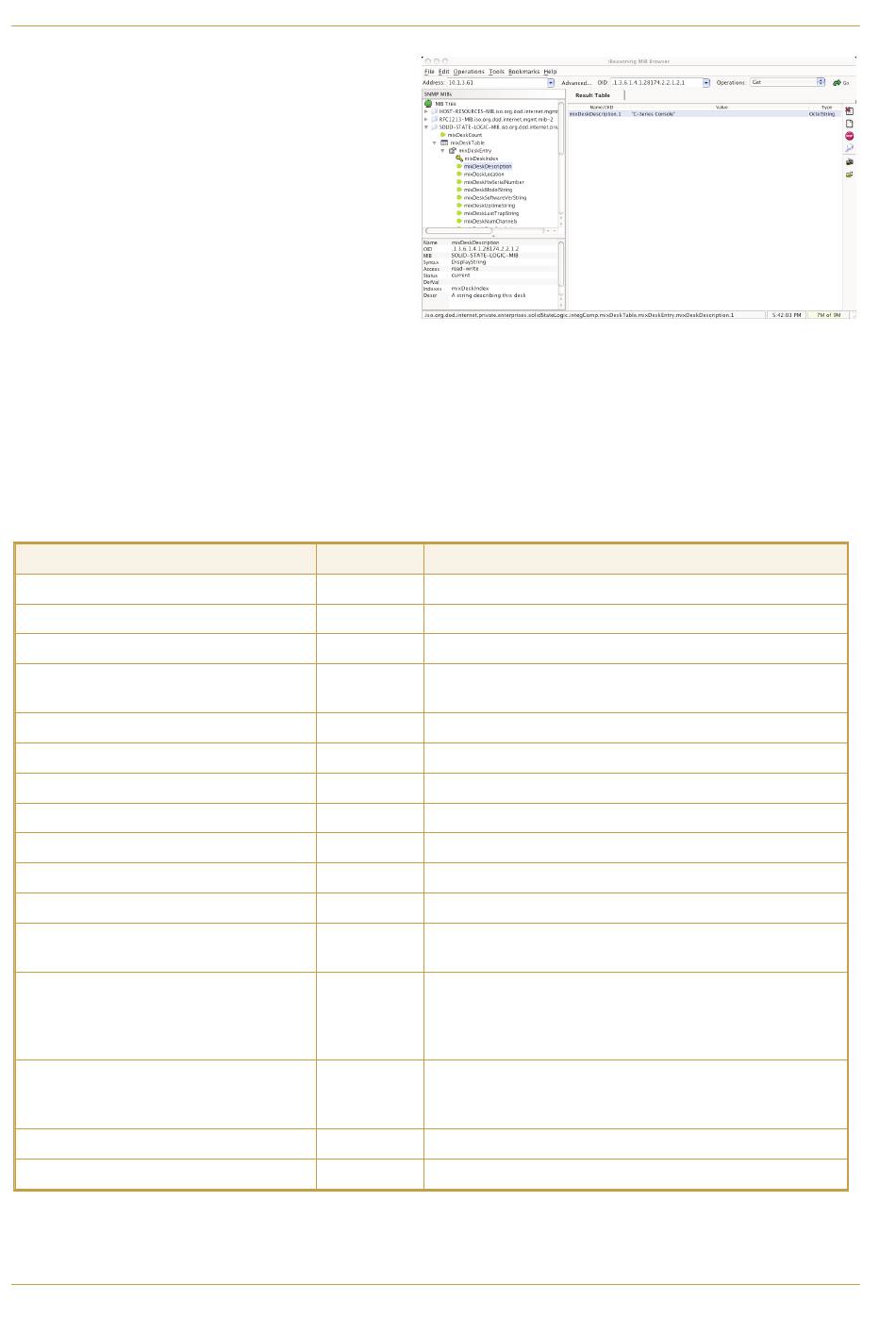

5. It will now be possible to browse the available data;
right click on the objects in the SNMP MIBs list and
by selecting 'Get', you can obtain the value for the
object. The example here shows the result for a
mixDeskDescriptionString GET request. Where a
request is for either a valid or an un-configured
object for a connected system it should return
more or less instantly with either the result or a
failure message. If the remote system is not present
there will be a timeout period before a failure is
returned. Objects which are writable can be set in
a similar way by right clicking on an object and
selecting 'Set' – in the resulting pop-up, enter the
required value and click on oK.
6. Any traps received can be viewed by selecting tools, trap Receiver. Clicking on an individual trap will display its
details in the bottom half of the window.
c10 hd SnMp o
BJectS
The individual SNMP objects for the C10 HD (Blackrock) system that are exported from V1.1/5 software are as follows:
object
sslC10Psu1Status
sslC10Psu2Status
sslC10MainScreenGfx1Status
sslC10MainScreenGfx2Status
sslC10SerialNumber
sslC10ModelString
sslC10SoftwareVerString
sslC10UptimeString
sslC10SyncStatusString
sslC10NumChannels
sslC10DspInfo
sslC10InRedundantPair
sslC10MasterInRedundantPair
sslC10ActiveConsoleInRedundantPair
sslC10DiskStatusString
sslC10RaidStatusString
Page 6-28 | Section 6: Appendices
type description
read-only The current status of Blackrock processor PSU 1
read-only The current status of Blackrock processor PSU 2
read-only The current status of the primary console TFT Meter driver
The current status of the secondary console TFT Meter
read-only
driver
read-only The SSL network id. number of this Blackrock DSP card
read-only String providing the model name of this system
read-only String providing the system software version
read-only String providing the current uptime of this system
read-only String providing the sync status
read-only The number of channels currently available on this system
read-only The current status of this systems Blackrock DSP array
A value representing the redundancy status if the system.
read-only
Returns 'yes' if the system is part of a redundant pair
A value representing the master status of the system.
Returns 'yes' if it is the system master of a redundant pair
read-only
or 'no' if it is either a system slave or is not part of a
redundant pair
A value representing the active status of a system if it is part
read-only of a redundant pair. Returns 'yes' if it is the active system
or 'no' if it is either inactive or not part of a redundant pair
read-only String providing the system disk (SMART) status
read-only String providing the disk RAID status
