Dhd Stagebox Configuration - Solid State Logic C10 HD Installation Manual

Route Menu
dhd S
tAgeBox

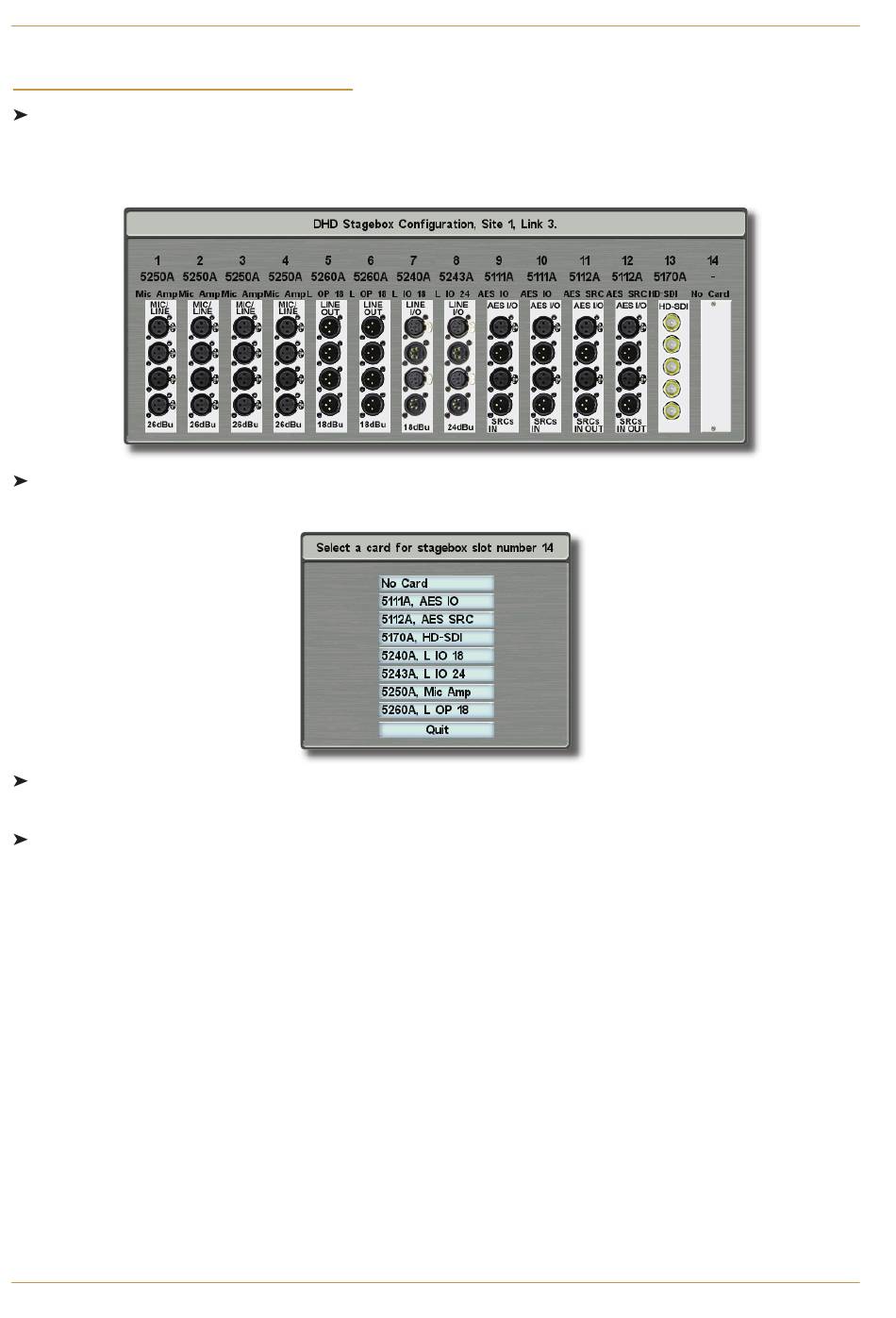

Stabbing the config button below a dhd SB link in the Link use display brings up a dhd Stagebox
configuration display, provideing a diagrammatic layout of cards fitted in the stagebox. This display enables each card
in the stagebox to be defined, ensuring that the default IO labelling is correct and that appropriate control data can be
sent.
To define the card in each card slot, stab on the card slot in the graphic to bring up the 'Select a card for
stagebox slot number x' pop-up:
Select the appropriate card type from the list, or press Quit to leave the card type unaltered. The pop-up will close
automatically. The selected card type will be indicated graphically, and will be labelled above each card slot graphic.
Close the configuration display by stabbing the screen anywhere outside of the display. Changes to this display are
saved automatically.
Page 5-28 | Section 5: System Administration
c
onFigurAtion
C10 HD Installation Manual
