Step A4: Configure Madi Connections - Solid State Logic C10 HD Installation Manual

A: IO Configuration
S A4: c mAdi .
tep onFiGURe connectionS
‰ Touch the io links button to open the link Use display, which is used to determine how external IO is linked
to the console.

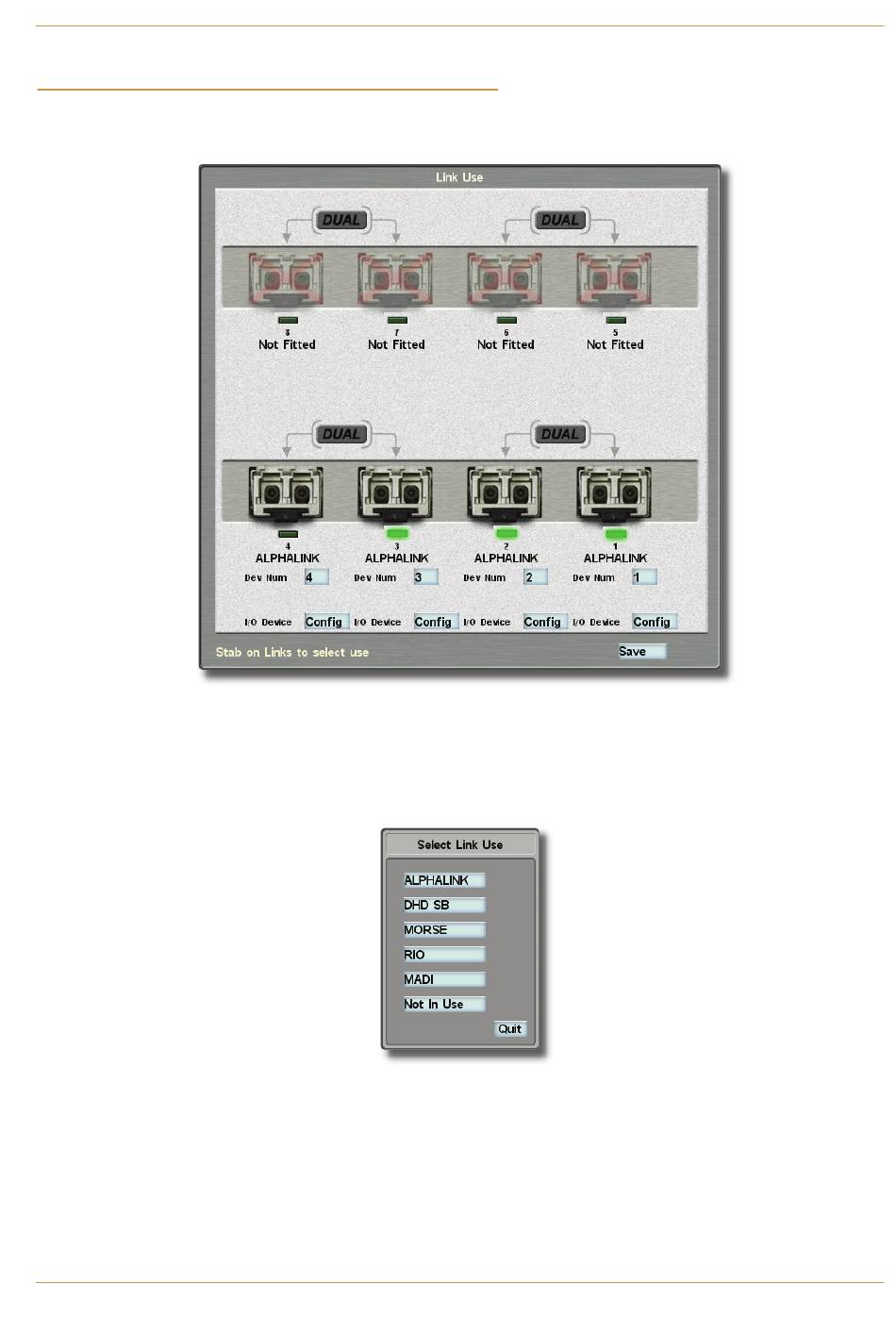

The pop-up shows graphical representation of the eight possible MADI links to the console processor. Those which are
not fitted are greyed out and crossed out in red, as shown for Links 5 to 8 above.
‰ Stab on the MADI socket to which the Alpha-Link is attached. The Select link Use pop-up will appear, from which
that IO link's connection can be defined.
‰ Stab the IO format for the link (e.g. Alphalink). The pop-up will close automatically.
‰ Repeat this process for all MADI links which are being used.
