Note that the name of the bundle is prefixed with m for mono, St for stereo and 5.1 for (you guessed it) 5.1, and the
components are prefixed with SL for stereo left and Sr for stereo right, or L for 5.1 left, r for 5.1 right, c for 5.1 centre,
LFe for 5.1 LFE, LS for 5.1 left surround and rS for 5.1 right surround.
Components are still named after their physical connection (AeS in 1-1 etc.), so that troubleshooting or physical
overpatching may be performed easily in the future, and are also displayed in green.
Press ok to make this new bundle (note that any original component names are erased when you do this) or touch
Quit to cancel. The components in a bundle are automatically named the same as the title of the bundle, but they may
be individually renamed by touching each of the green components in turn in the list shown opposite.

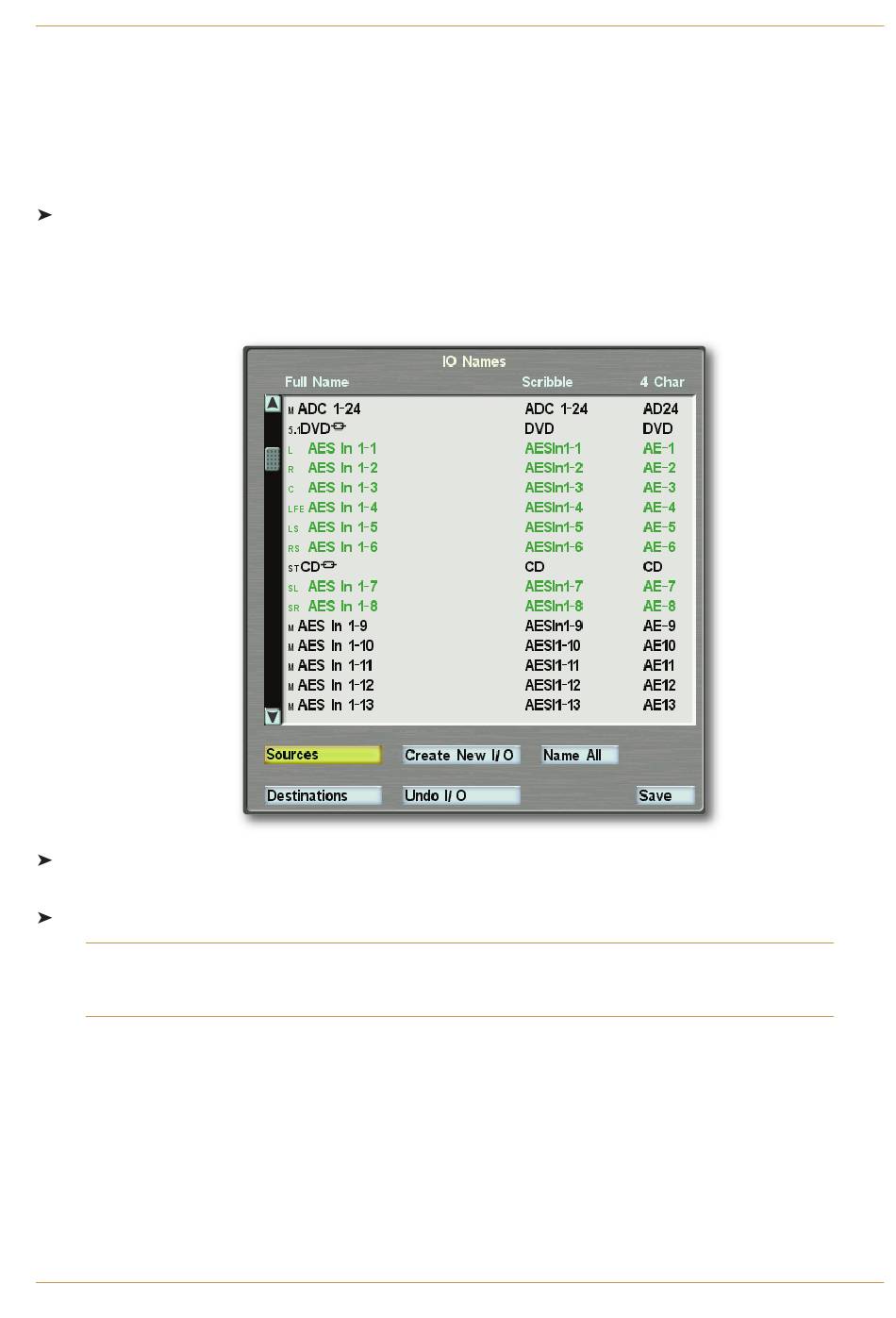

For example, AES digital inputs 1-1 to 1-6 are fed from a DVD player in the screenshot below, so they have been made
into a 5.1 source called dVd:
To dissolve an I/O bundle, touch the io names / undo i/o box and then the list item you wish to remove – all
the components will become individual again.
When you've finished modifying items in the Sources or destinations list, make sure you select the Save box!
Note that the chainlink icon indicates that the source has Control Linking data associated with it, the mic icon indicates
that the source has been designated an On-Air source, and the pointing hand icon indicates that the source has been
included in a Quickroute list.
