etworK enu
The network menu within the Maintenance pages contains the items that define the network configuration of
the C10.
Under the Network icon are two submenus: netlist and iP.
n
etLiSt

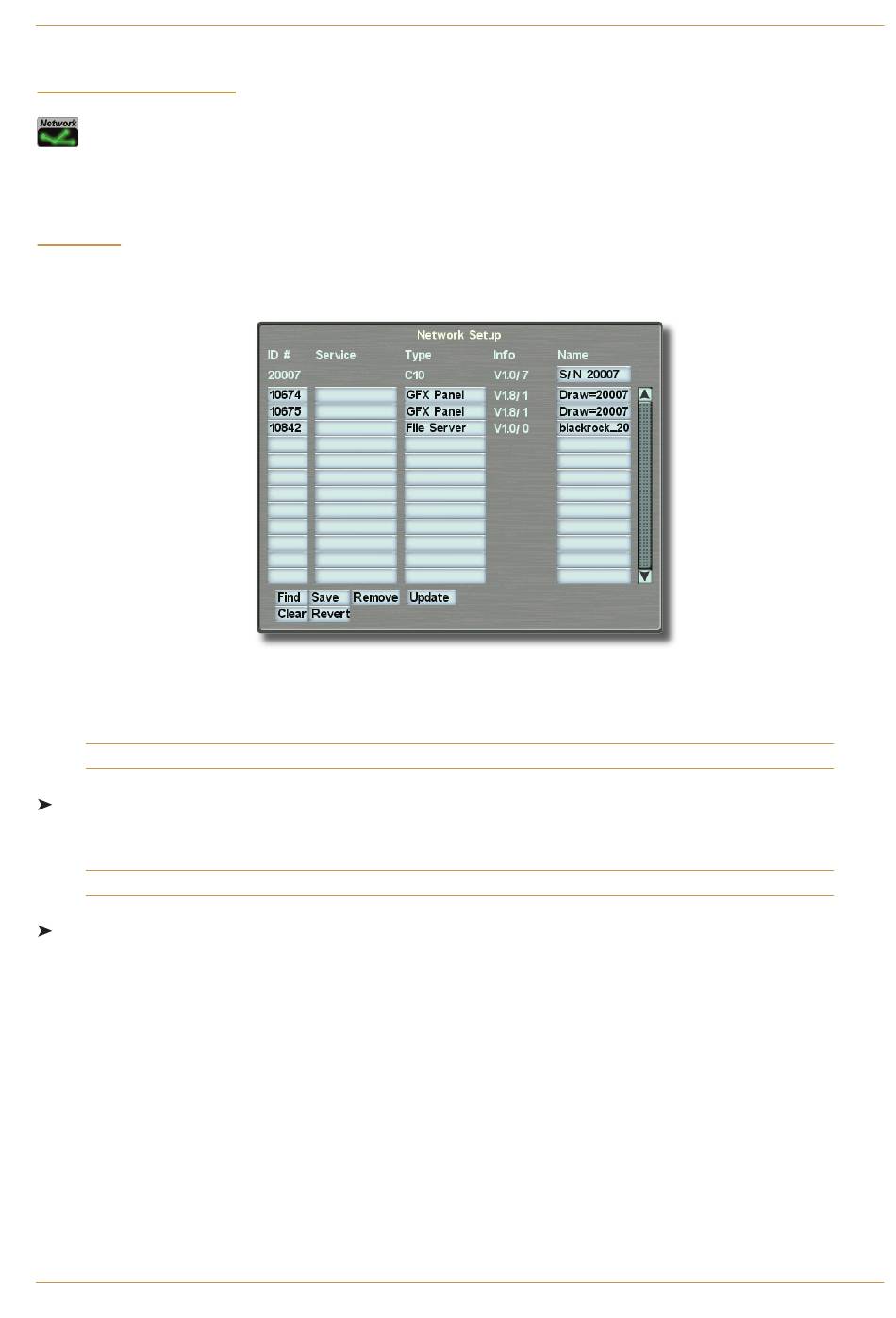

This page displays the configuration of the SSL network, and is used to define the relationship between control surface,
the internal processor core and other SSL equipment processors:
In the configuration seen here, there are just two other networked processors in addition to the console computer. The
columns of information give the 4-digit network id numbers, the type of unit, info on software revision and a name
for each unit.
Note that the Service column is included for software compatibility purposes and is superfluous on the C10.
To search for all units currently connected and running, press the Find box, then make sure none of the options in
the subsequent net Service Selector pop-up are highlighted (ensuring that you will scan the network for machines of
all types) and press oK. After a few moments the screen will refresh with all items found.
Note that in a multi-console installation the list could be fairly long!
To force the console to find a single item whose ID number is know, simply touch one of the blank boxes in the ID
column and enter that number – if the unit is connected and powered it will appear almost immediately.
