‰ Press another button to assign and repeat the process, or deselect the FRee button to complete the assignment.
1 PGM 2
‰ To clear a softkey assignment, simply select the FRee button, press the button to be cleared, and deselect the FRee
button.
It is important to close the display before configuring any channel softkeys so as to avoid assigning the wrong functions
to the softkeys in question.
t c S
he entRe ection

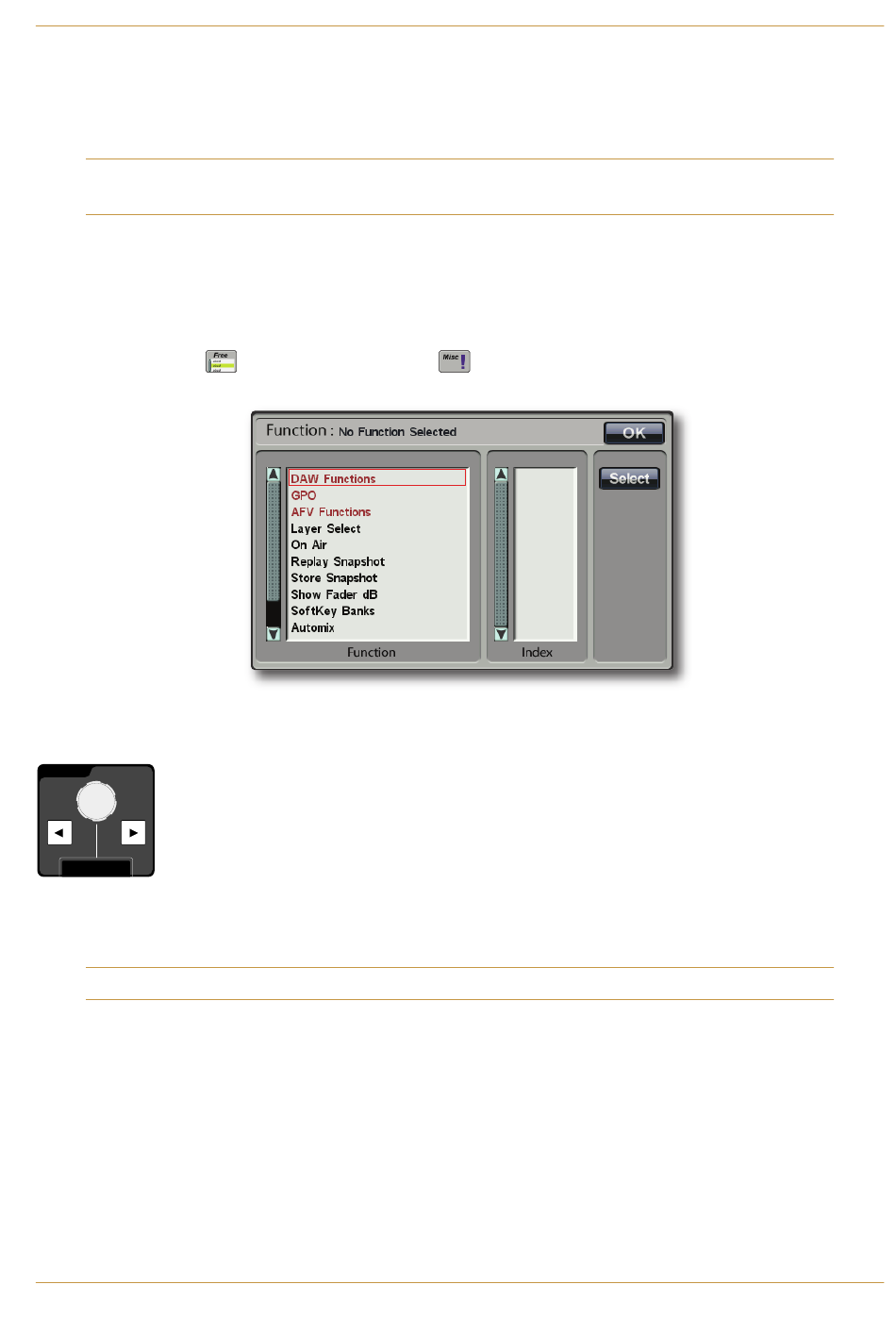

A number of additional functions, including GPI outputs, are assigned via the Centre Section Function display. Function
groups are displayed in the scrollable left-hand column, and the functions within the selected group are shown in the right-
hand column. To assign a function from this list to a softkey:
‰ Touch the FRee (
display. In the display, functions are shown in black and function groups shown in red:
‰ Press the softkey that you want to assign. Once pressed, Centre Section softkeys will flash and ???? will appear in their
display, and Touchscreen softkeys will flash yellow.
‰ Turn the MASTER Scroller to select the required function or group, and press the Scroller to
M M A M MASTER A S T T E E E R R
confirm selection. The entry will highlight in yellow.
‰ If assigning a function from a list, move the cursor to the required function within the list, and
press it to select. If there is a function value which needs defining, these will then appear in the smaller
right-hand column, and can be selected in the same way.
Master Scroller
‰ Touch the Select button in the right of the display to confirm selection.
‰ To move the cursor back to the function group list, select the <Back> entry at the top of the function list.
See Section 5 for more on Softkeys, including definitions of the functions contained within the Functions display.
C10 HD Installation Guide
F
Unction diSplAy
) button within the miSc (
I
) menu, located in the User Toolbox to open a Function
Section 4: Configuration
B: Console Configuration
| Page 4-25
