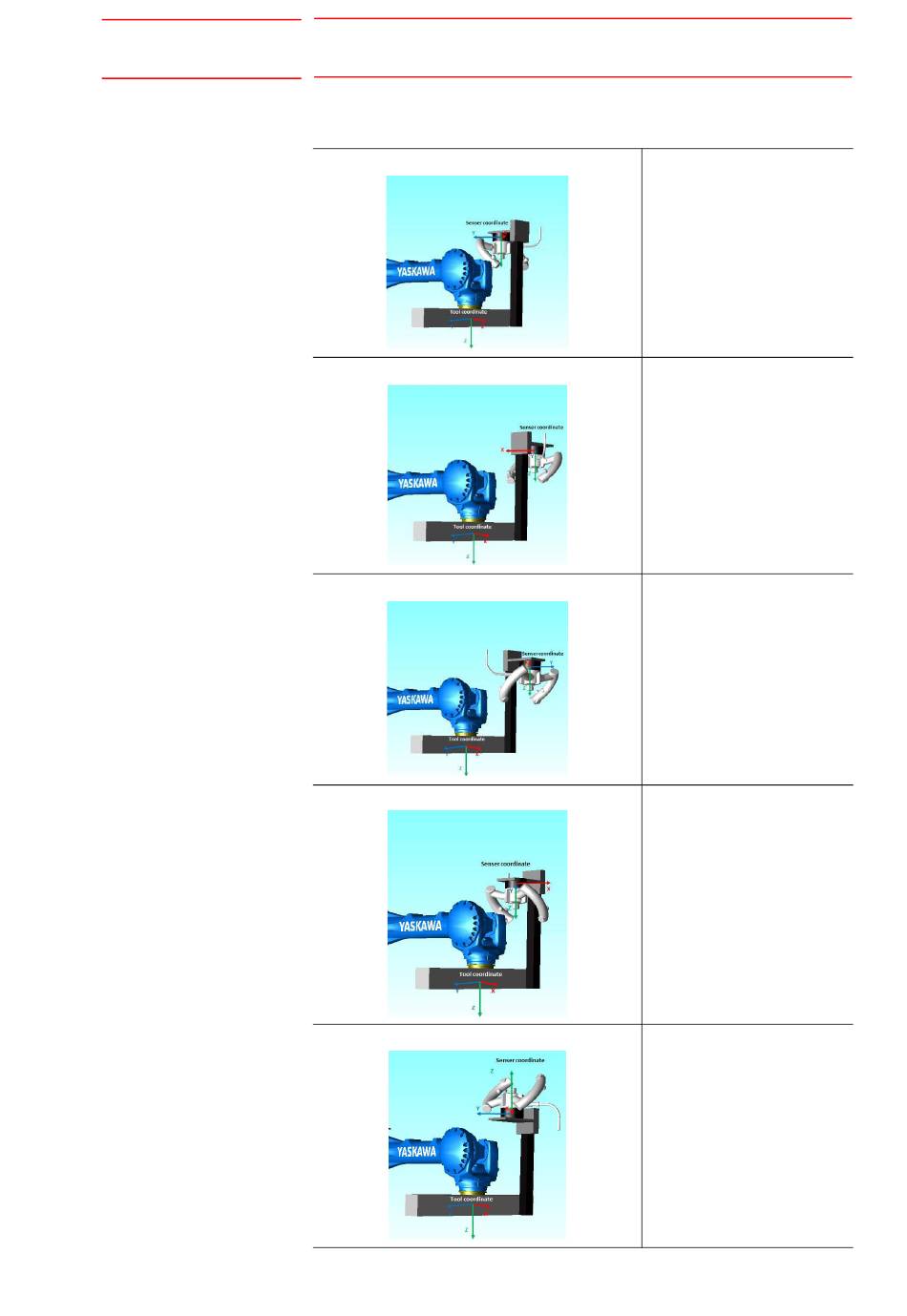

3.7.3 Setting Example of Sensor Mounting Angle
3
Setup of Hand Guiding Function
3.7
Setting of Sensor Mounting Angle
3-9
I084 (X): 0
I085 (Y): 0
I086 (Z): 45
I084 (X): 0
I085 (Y): 0
I086 (Z): 135
I084 (X): 0
I085 (Y): 0
I086 (Z): -135
I084 (X): 0
I085 (Y): 0
I086 (Z): -45
I084 (X): 0
I085 (Y): 180
I086 (Z): 45
