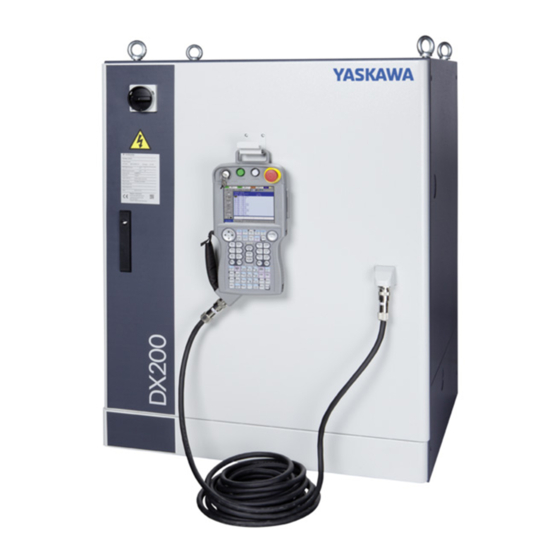

DX200 OPTIONS
INSTRUCTIONS
For MotoFit Function Engineering Support Tool
Upon receipt of the product and prior to initial operation, read these instructions thoroughly, and retain
for future reference.
Part Number:
Revision:
MANUAL NO.
HW1482138
174506-1CD
0
1 of 102
