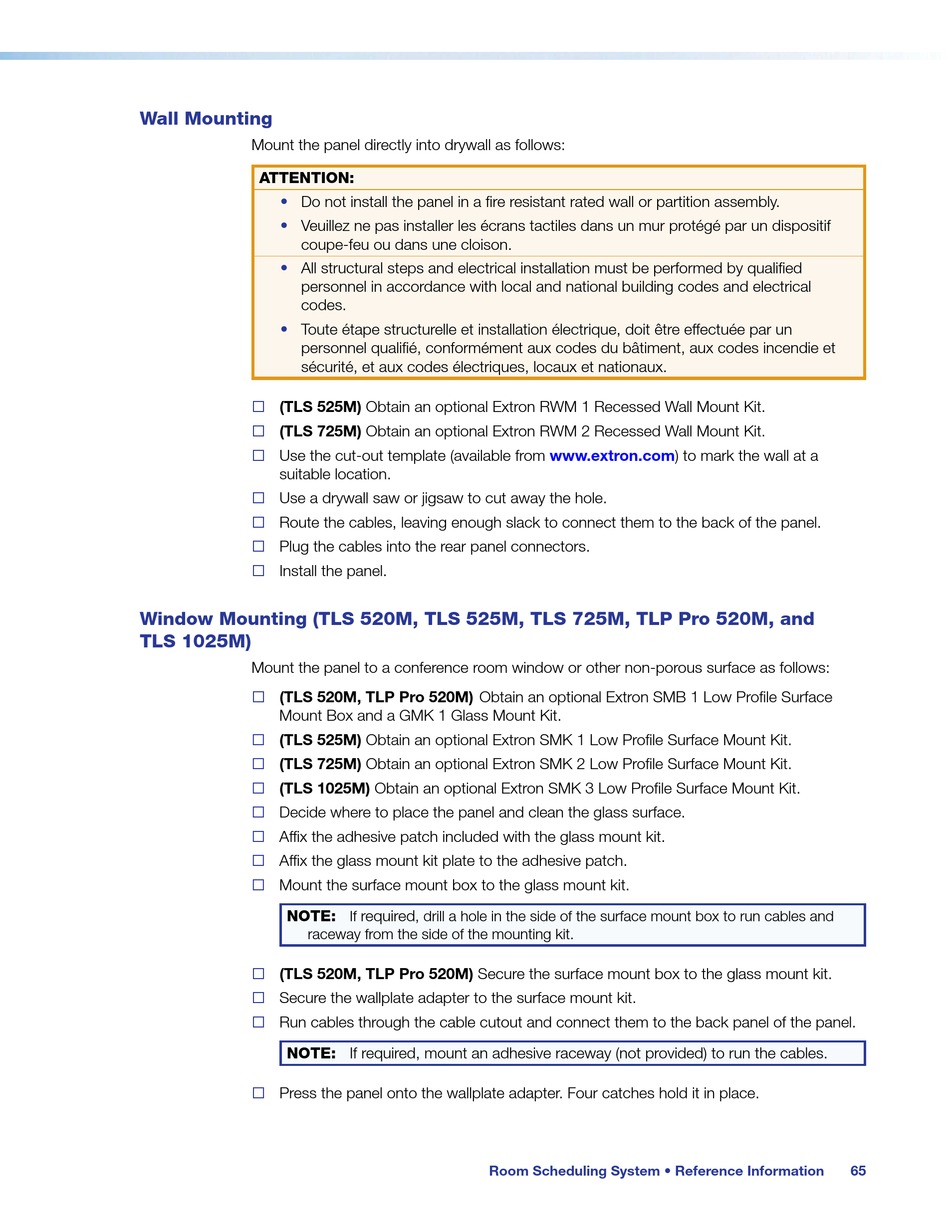

Wall Mounting

Mount the panel directly into drywall as follows:
ATTENTION:
• Do not install the panel in a fire resistant rated wall or partition assembly.
• Veuillez ne pas installer les écrans tactiles dans un mur protégé par un dispositif
coupe-feu ou dans une cloison.
• All structural steps and electrical installation must be performed by qualified
personnel in accordance with local and national building codes and electrical
codes.
• Toute étape structurelle et installation électrique, doit être effectuée par un
personnel qualifié, conformément aux codes du bâtiment, aux codes incendie et
sécurité, et aux codes électriques, locaux et nationaux.
(TLS 525M) Obtain an optional Extron RWM 1 Recessed Wall Mount Kit.
�
(TLS 725M) Obtain an optional Extron RWM 2 Recessed Wall Mount Kit.
�
Use the cut-out template (available from www.extron.com) to mark the wall at a
�
suitable location.
Use a drywall saw or jigsaw to cut away the hole.
�
Route the cables, leaving enough slack to connect them to the back of the panel.
�
Plug the cables into the rear panel connectors.
�
Install the panel.
�
Window Mounting (TLS 520M, TLS 525M, TLS 725M, TLP Pro 520M, and
TLS 1025M)
Mount the panel to a conference room window or other non-porous surface as follows:
(TLS 520M, TLP Pro 520M) Obtain an optional Extron SMB 1 Low Profile Surface
�
Mount Box and a GMK 1 Glass Mount Kit.
(TLS 525M) Obtain an optional Extron SMK 1 Low Profile Surface Mount Kit.
�
(TLS 725M) Obtain an optional Extron SMK 2 Low Profile Surface Mount Kit.
�
(TLS 1025M) Obtain an optional Extron SMK 3 Low Profile Surface Mount Kit.
�
Decide where to place the panel and clean the glass surface.
�
Affix the adhesive patch included with the glass mount kit.
�
Affix the glass mount kit plate to the adhesive patch.
�
Mount the surface mount box to the glass mount kit.
�
NOTE: If required , drill a hole in the side of the surface mount box to run cables and
raceway from the side of the mounting kit.
(TLS 520M, TLP Pro 520M) Secure the surface mount box to the glass mount kit.
�
Secure the wallplate adapter to the surface mount kit.
�
Run cables through the cable cutout and connect them to the back panel of the panel.
�
NOTE: If required, mount an adhesive raceway (not provided) to run the cables.
Press the panel onto the wallplate adapter. Four catches hold it in place.
�
Room Scheduling System • Reference Information 65
