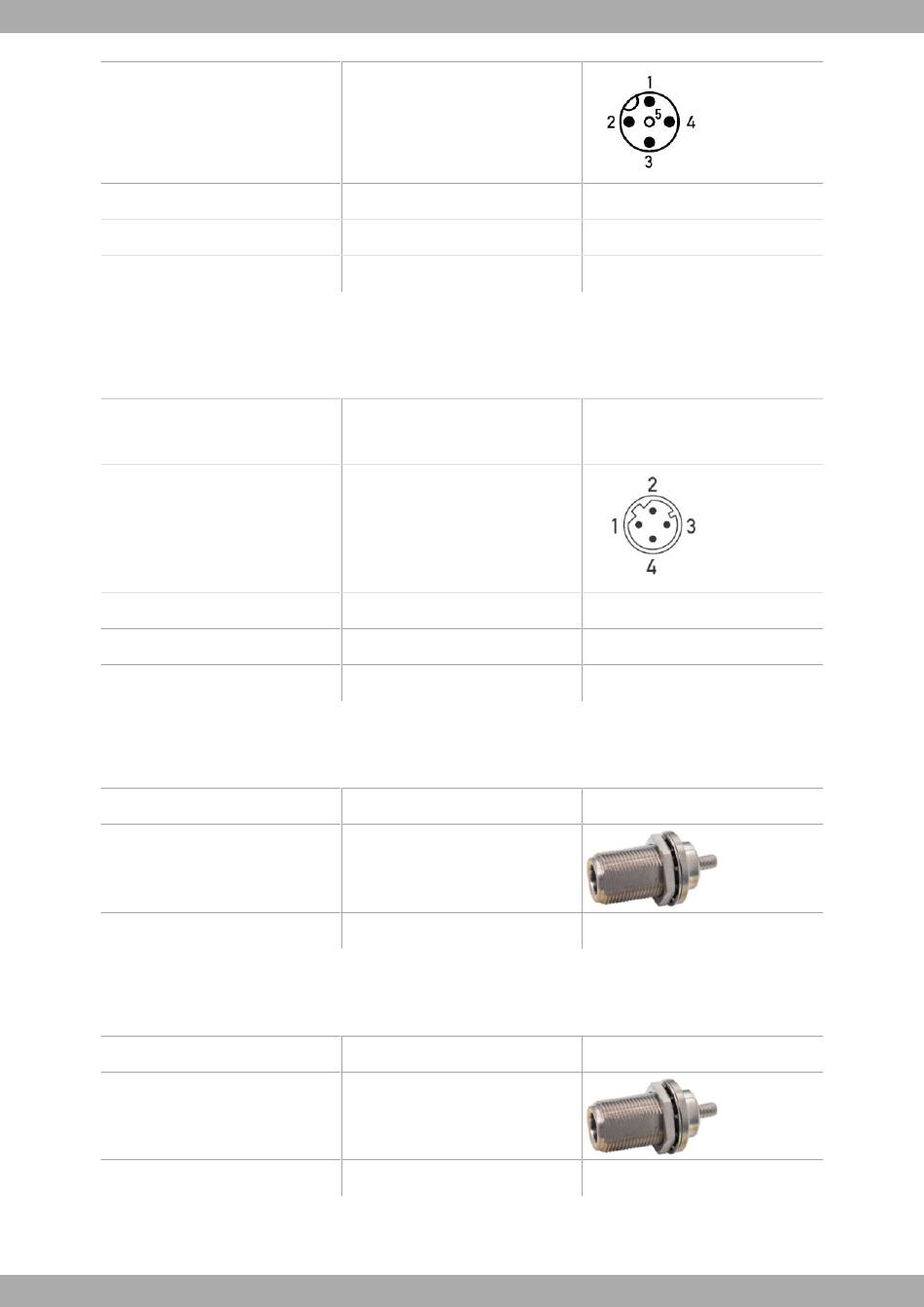

A.3.2 LAN Connector
The installed LAN connector type in this device is an M12 4 pole code D connector (SACC-CI-M12FSD-4CON-L90
SCO).
PIN
1
2
3
4
A.3.3 WWAN Connectors
The installed WWAN connector type is N female coaxial.
PIN
Internal
External
A.3.4 WLAN Connectors
The installed WWAN connector type is N female coaxial in those devices equipped with this interface.
PIN
Internal
External
16
110 V DC
110 V DC
0 V
0 V
Signal
Tx+
Rx+
Tx-
Rx-
Signal
RF In/Out
Gnd
Signal
RF In/Out
Gnd
M12 4P D Code
Female
N Connector
N Connector
Teldat S.A.
Teldat H1 RAIL
