- Page 1 EZ Switch™ EZ Connect N 5/8 port Gigabit Ethernet Switch Draft 11n Wireless USB2.0 Adapter SMCGS5/SMCGS8...
- Page 2 No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice.
-
Page 3: Product Registration
Warranty and Product Registration To register SMC products and to review the detailed warranty statement, please refer to the Support Section of the SMC Website at http://www.smc.com SMC Networks, Inc. 20 Mason Irvine, CA 92618... -
Page 4: Federal Communication Commission Interference Statement
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. SMC is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. -
Page 5: Industry Canada Statement
• Electrostatic Discharge according to EN 61000-4-2: 2001 ED.1.2 (Contact Discharge: ±4 kV, Air Discharge: ±8 kV) • Radio-frequency electromagnetic field according to EN 61000-4-3: 2006 ED.3.0 (80 - 1000 MHz with 1 kHz AM 80% Modulation: 3 V/m) • Electrical fast transient/burst according to EN 61000-4-4: 2004 ED.2.0 (AC/DC power supply: ±1 kV, Data/Signal lines: ±0.5 kV) •... - Page 6 Please read the following safety information carefully before installing the Switch: WARNING: Installation and removal of the unit must be carried out by qualified personnel only. • This guide is intended for use by network administrators who are responsible for setting up and installing network equipment;...
- Page 7 France and Peru only This unit cannot be powered from IT. supplies. If your supplies are of IT type, this unit must be powered by 230 V (2P+T) via an isolation transformer ratio 1:1, with the secondary connection point labelled Neutral, connected directly to earth (ground). †Impédance à la terre Power Cord Set U.S.A.
- Page 8 Veuillez lire à fond l’information de la sécurité suivante avant d’installer le Switch: AVERTISSEMENT: L.installation et la dépose de ce groupe doivent être confiés à un personnel qualifié. • Ne branchez pas votre appareil sur une prise secteur (alimentation électrique) lorsqu’il n’y a pas de connexion de mise à...
- Page 9 La prise secteur doit être conforme aux normes CEE 7/7 (.SCHU- KO. LE cordon secteur doit porter la Europe mention <HAR> ou <BASEC> et doit être de type HO3VVF3GO.75 (minimum). Bitte unbedingt vor dem Einbauen des RPU die folgenden Sicherheitsanweisungen durchlesen: WARNUNG: Die Installation und der Ausbau des Geräts darf nur durch Fachpersonal erfolgen.
- Page 10 Warning: When connecting this device to a power outlet, connect the field ground lead on the tri-pole power plug to a valid earth ground line to prevent electrical hazards. Caution: Wear an anti-static wrist strap or take other suitable measures to prevent electrostatic discharge when handling this equipment.
- Page 11 Environmental Statement The manufacturer of this product endeavors to sustain an environmentally-friendly policy throughout the entire production process. This is achieved though the following means: • Adherence to national legislation and regulations on environmental production standards. • Conservation of operational resources. •...
-
Page 12: Table Of Contents
ABLE ONTENTS Introduction…...………………………………………….. 12 SMC Green Saving Switches…………………………....12 Feature and Benefits…………………………………………..12 Rear Panel RJ-45 ports..............Front Panel LED’s.……………………….…………………..13 SMCGS5 Front Panel and Rear Panel..……………………..14 SMCGS8 Front Panel and Rear Panel…..……………………... 14 Installing the switch……………………………………… 15 Package Contents.……………………………………………… 15 Selecting a Site…………….……………………………………. -
Page 13: Introduction
Power saving by Cable length Auto-Detection: SMC Green Saving switches can actively detect the presence of a shorter cable and determines the appropriate power level based on cable length so there’ll be less power consumption when the link distance is shorter. -
Page 14: Rear Panel Rj-45 Ports
Rear Panel RJ-45 Ports The EZ Switch 10/100/1000 features 5/8 1000BASE-T ports with RJ-45 connectors located on the rear panel of the switch. Because all ports support automatic MDI/MDI-X operation, you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs. -
Page 15: Smcgs5 Front Panel And Rear Panel

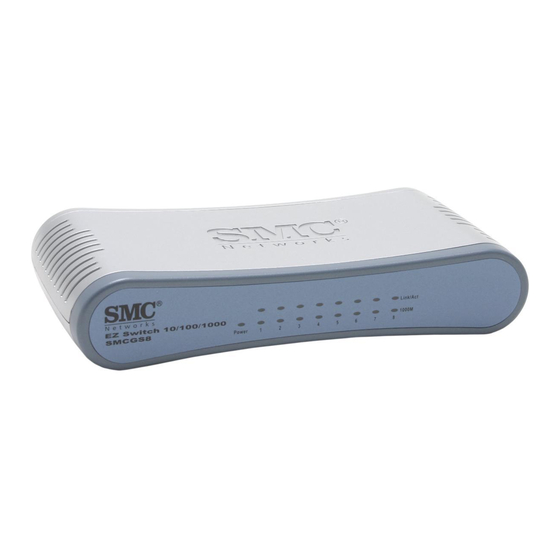

SMCGS5 Front and Rear Panels SMCGS8 Front and Rear Panels The DC power socket is located on the rear panel of the switch. -
Page 16: Installing The Switch
Before installing the switch, verify that you have all the items listed under “Package Contents.” If any of the items are missing or damaged, contact your local SMC distributor. Also be sure you have all the necessary tools and cabling before installing the switch. - Page 17 3. Connecting PCs: Connect each PC to an RJ-45 port on the switch using Category 5 or 5e shielded or unshielded twisted-pair (UTP or STP) cable, maximum length 100 meters (328 ft). All ports on the switch support automatic MDI/MDI-X operation, so you can use straight –through cables for all network connections to PCs or servers, or to other switches or hubs.
-
Page 18: Troubleshooting
ROUBLESHOOTING Diagnosing Switch Indicators 1. Symptom Power LED does not light after power on. Probable Causes o DC power socket may be defective. Possible Solutions o Check for loose connections. o Check the power outlet by using it for another device. 2. -
Page 19: Cables
ABLES Cable Specifications Cable Types and Specifications Cable Type Max. Length Connector 2-pair Cat. 3 or better 10BASE-T 100 m (328 ft) RJ-45 100-ohm UTP 2-pair Cat. 5 or better 100BASE-TX 100 m (328 ft) RJ-45 100-ohm UTP 10BASE-T/100BASE-TX Pin Assignments Caution: DO NOT plug a phone jack connector into any RJ- 45 port. -
Page 20: Product Specifications
roduct pecifications EZ Switch 10/100/1000 Standards IEEE 802.3 Conformance IEEE 802.3u IEEE 802.3x IEEE 802.3ab Full-duplex flow control Communication Rate 10,100, 1000Mbps Communication Mode Full or half duplex at 10/100 Mbps Full duplex at 10/100/1000 Mbps Media Supported 10BASE-T: 100-ohm Category 3 or better twisted-pair 100BASE-TX: 100-ohm Category 5 or better twisted pair 1000BASE-T: 100-ohm Category 5/5e twisted-pair Number of Ports... - Page 21 SMCGS5/SMCGS8...
