Beechcraft C-12C Operator And Technical Reference Manual page 48

TM 1-1510-218-10
1. Primary Prop Governor
2. Torque Pressure Transmitter
3. Torque Pressure Switch
4. Torque Pressure Manifold
5. Exhaust Duct
6. ITT Temperature Probe
7. Fuel Flow Divider Manifold
8. Fire Detector
9. Engine Mount Bolt
10. Engine Mount Truss Assembly
11. Engine Air Intake Screen
12. Ignition Exciter
13. Starter-Generator
14. Fuel Boost Pump
2-32
15. Air Conditioner Compressor Drive Belt (#2
16. Fire Detector
17. Air Conditioner Compressor (#2 Engine
18. Bleed Air Adapter
19. Bleed Air Line
20. Engine Mount
21. Ignition Exciter Plug
22. Oil Scavenge Tubes
23. Overspeed Governor
24. Prop Device Brush Block Bracket
25. Prop Reverse Linkage Lever

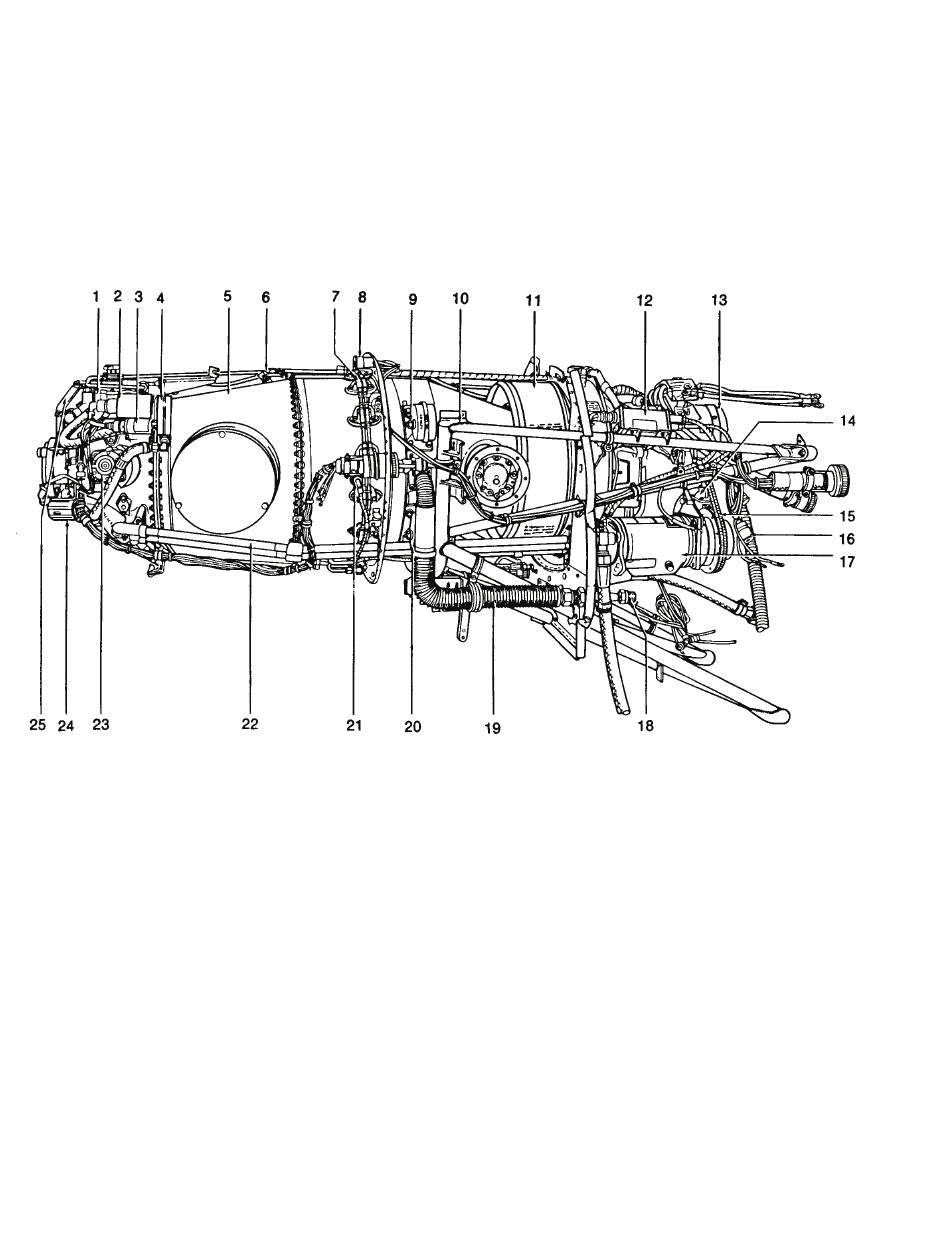

Figure 2-14. Engine (Sheet 1 of 2)
Engine Only)
Only)
