TM 1-1510-218-10
2-14
* *

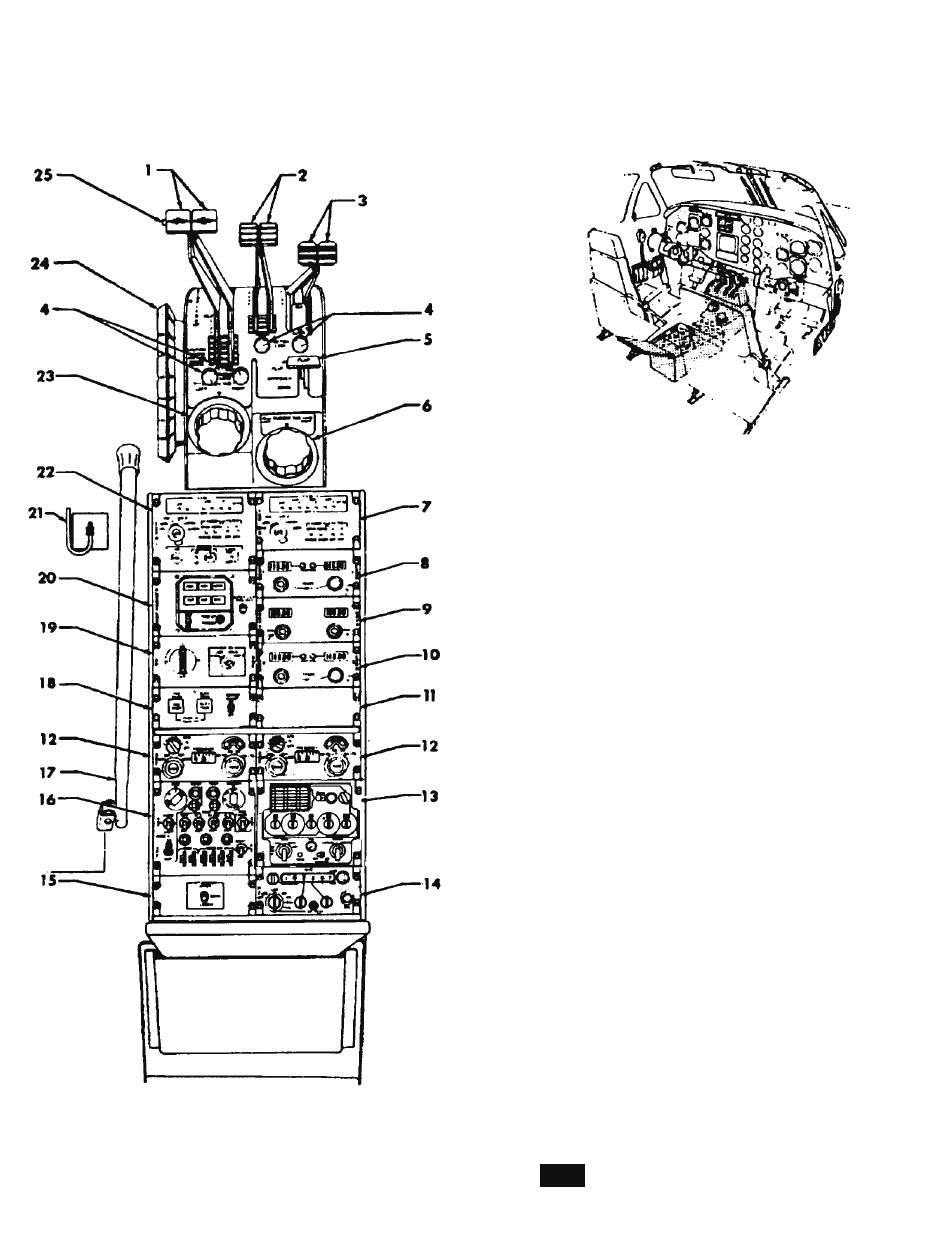

Figure 2-7. Control Pedestal
1.
Power Levers (2)
2.
Propeller Levers (2)
3.
Condition Levers (2)
4.
FRICTION LOCK Knobs
5.
WING FLAP Switch
6.
RUDDER TAB Control and Position Indicator
7.
ICS #2 Control Panel
8.
COMM 1 Control Panel
9.
COMM 2 Control Panel
10.
NAV 1/NAV 2 Control Panel
11.
Blank Panel
12.
ADF Control Panel
13.
UHF Control Panel
*
14.
HF Control Panel
15.
IFF Antenna Select Panel
16.
Transponder Control Panel
17.
Alternate Landing Gear Extension Handle
18.
YAW DAMP/RUDDER BOOST Control Panel
19.
AP/DME Control Panel
20.
AUTOPILOT Mode Selector Panel
21.
Landing Gear Alternate Engage Handle
22.
ICS #1 Control Panel
23.
Aileron Tab Control and Position Indicator
24.
ELEVATOR Tab
Indicator
25.
Autopilot Go-Around Button
* PROVISIONS ONLY ARE INSTALLED.
EITHER OF TWO
INSTALLED.
* *
INSTALLED ONLY
TRANSPONDER IS INSTALLED
C D1
Control and Position
SETS MAY BE
IF APX-101
