Beechcraft C-12C Operator And Technical Reference Manual page 19

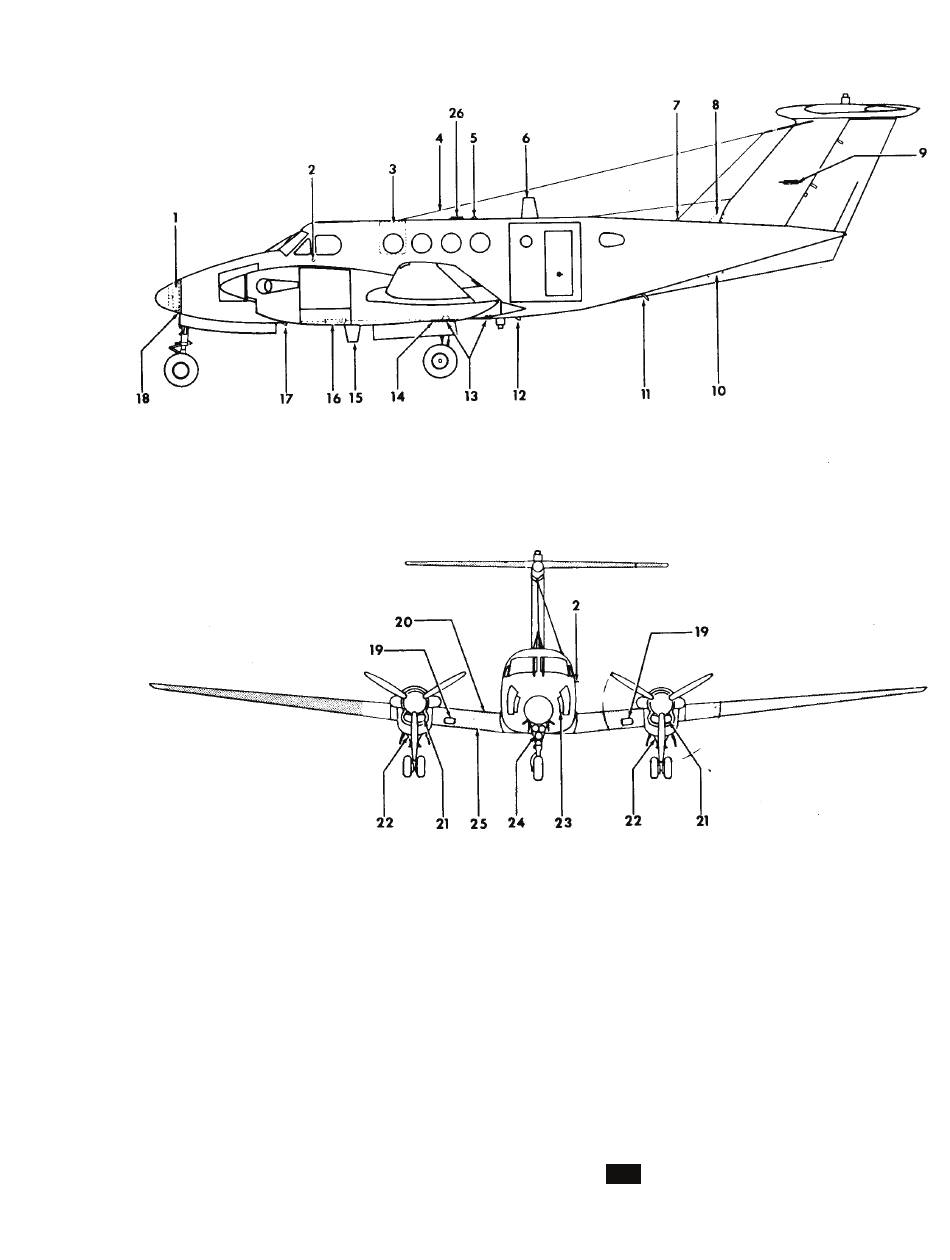

1. Radar Antenna
2. Free Air Temperature Sensor
3. Emergency Escape Hatch (Right)
4. HF Comm Antenna
5. Upper Transponder Antenna
6. VHF No. 1 and UHF Comm Antenna
7. ADF No. 2 Sense Antenna
8. ELT Antenna
9. VOR No. 1 and No. 2 Antennas (2)
10. Fit Management Antenna
11. ADF No. 1 Sense Antenna
12. Lower Transponder Antenna
13. Radio Altimeter Antennas
Figure 2-1. General Exterior Arrangement
14. ADF No. 1 and No. 2 Loop Antennas (2)
15. VHF No. 2 and UHF Comm Antenna
16. Marker Beacon Antenna
17. TACAN DME Antenna
18. Glideslope Antenna
19. Heat Exchange Inlet
20. Battery Exhaust Louver
21. Engine Air Inlet
22. Engine Air Bypass Door
23. Battery Ram Air Inlet
24. Condenser Air Inlet (Right) Air Exhaust (Left)
25. Battery Ram Air Inlet
26. GPS Antenna
