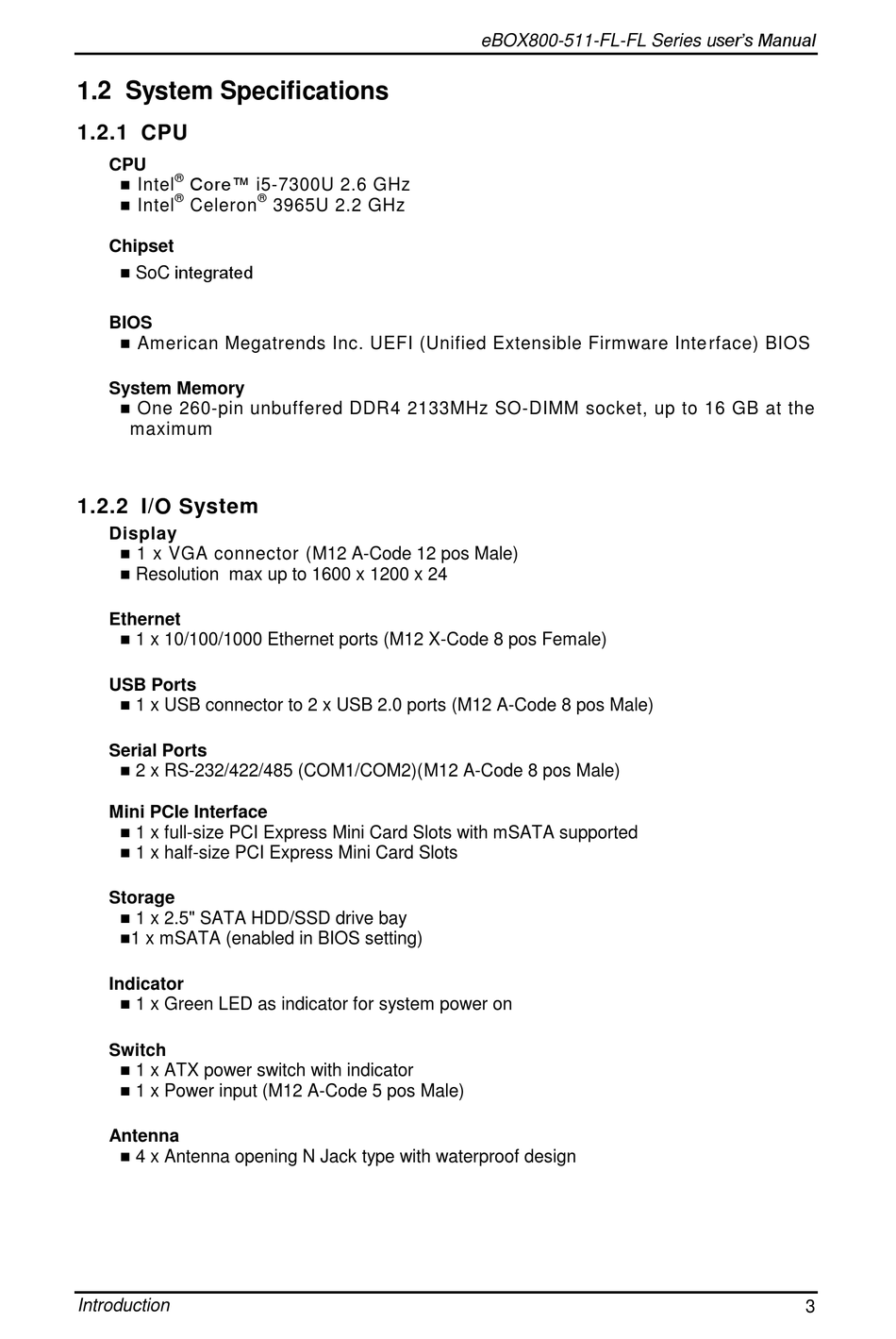

1.2 System Specifications

1.2.1 CPU

CPU
®
Core™ i5-7300U 2.6 GHz

Intel
®
 Intel Celeron
Chipset
SoC integrated

BIOS

American Megatrends Inc. UEFI (Unified Extensible Firmware Inte rface) BIOS
System Memory

One 260-pin unbuffered DDR4 2133MHz SO-DIMM socket, up to 16 GB at the
maximum

1.2.2 I/O System

Display

1 x VGA connector (M12 A-Code 12 pos Male)
 Resolution max up to 1600 x 1200 x 24
Ethernet
 1 x 10/100/1000 Ethernet ports (M12 X-Code 8 pos Female)
USB Ports
 1 x USB connector to 2 x USB 2.0 ports (M12 A-Code 8 pos Male)
Serial Ports
 2 x RS-232/422/485 (COM1/COM2)(M12 A-Code 8 pos Male)
Mini PCIe Interface
 1 x full-size PCI Express Mini Card Slots with mSATA supported
 1 x half-size PCI Express Mini Card Slots
Storage
 1 x 2.5" SATA HDD/SSD drive bay
 1 x mSATA (enabled in BIOS setting)
Indicator
 1 x Green LED as indicator for system power on
Switch
 1 x ATX power switch with indicator
 1 x Power input (M12 A-Code 5 pos Male)
Antenna
 4 x Antenna opening N Jack type with waterproof design
Introduction
®
3965U 2.2 GHz
