Appendix Dio Board - AXIOMTEK eBOX800-511-FL Series User Manual

The AX93287/AX93A00 is an I/O expansion board which is suggested to attach carefully to
PICO511. Its specifications and detailed information are given in this appendix.

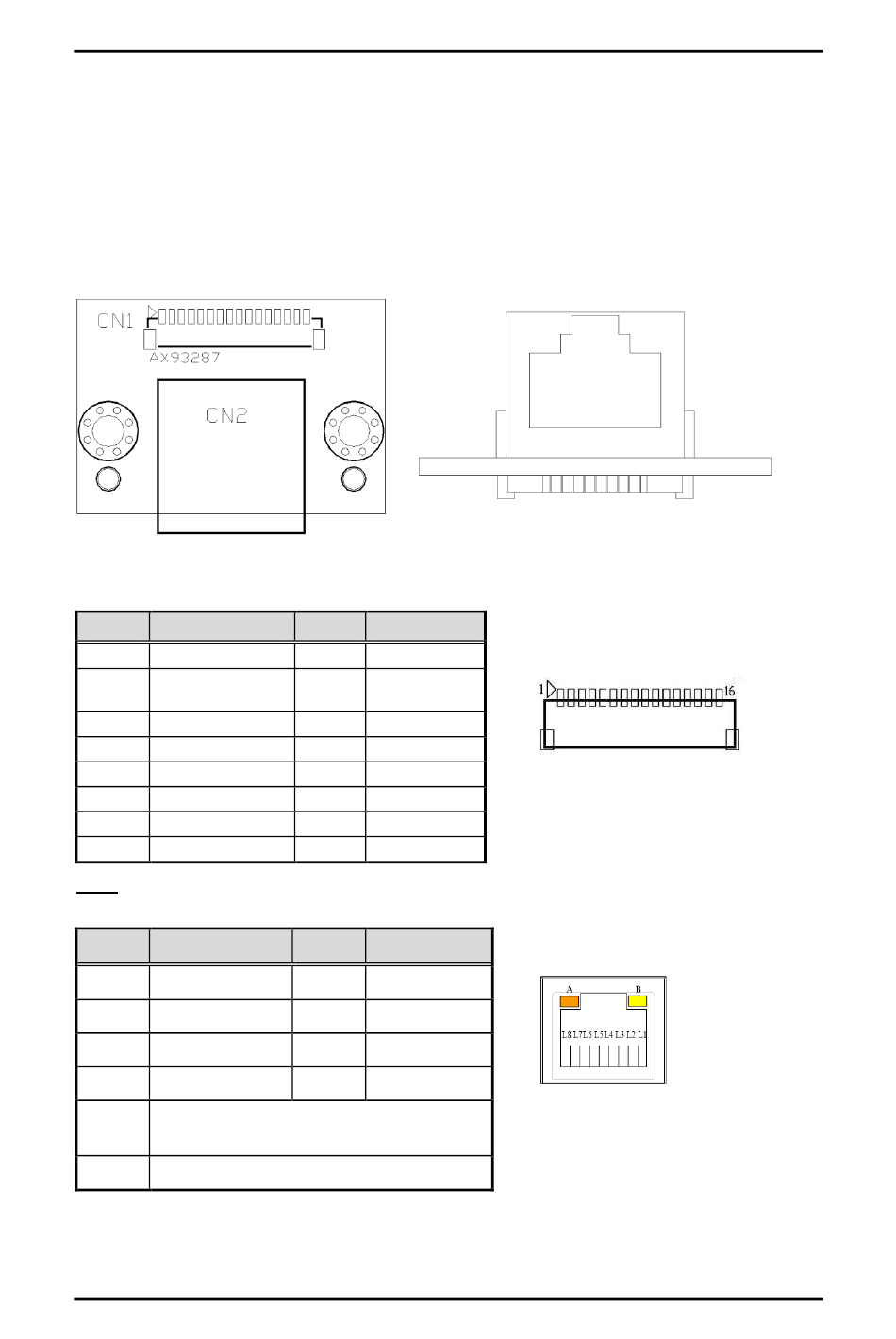

AX93287 TOP View
Ethernet Connector from AX93287 (CN1)
Pins Signals
1 100_LAN_LED
1000_LAN_LE
2
D
3 NC
4 MDI3-
5 MDI3+
6 NC
7 MDI2-
8 MDI2+
Note: CN1 is suggested to connect CN3 on AX92902 via LAN cable.
Pins Signals
L1 MDI0+
L2 MDI0-
L3 MDI1+
L4 MDI1-
100 LAN LED (Green) / 1000 LAN LED
A
(Orange)
B Active LED (Yellow)
IO Board
Pins Signals
9 MDI1-
10 MDI1+
11 NC
12 MDI0-
13 MDI0+
14 NC
15 LINK_ACT
16 VDD3
Pins Signals
L5 MDI2+
L6 MDI2-
L7 MDI3+
L8 MDI3-
eBOX800-511-FL-FL Series user's Manual
APPENDIX D
AX93287 Side View
IO BOARD
75
