eBOX800-511-FL-FL Series user's Manual
3.3.5

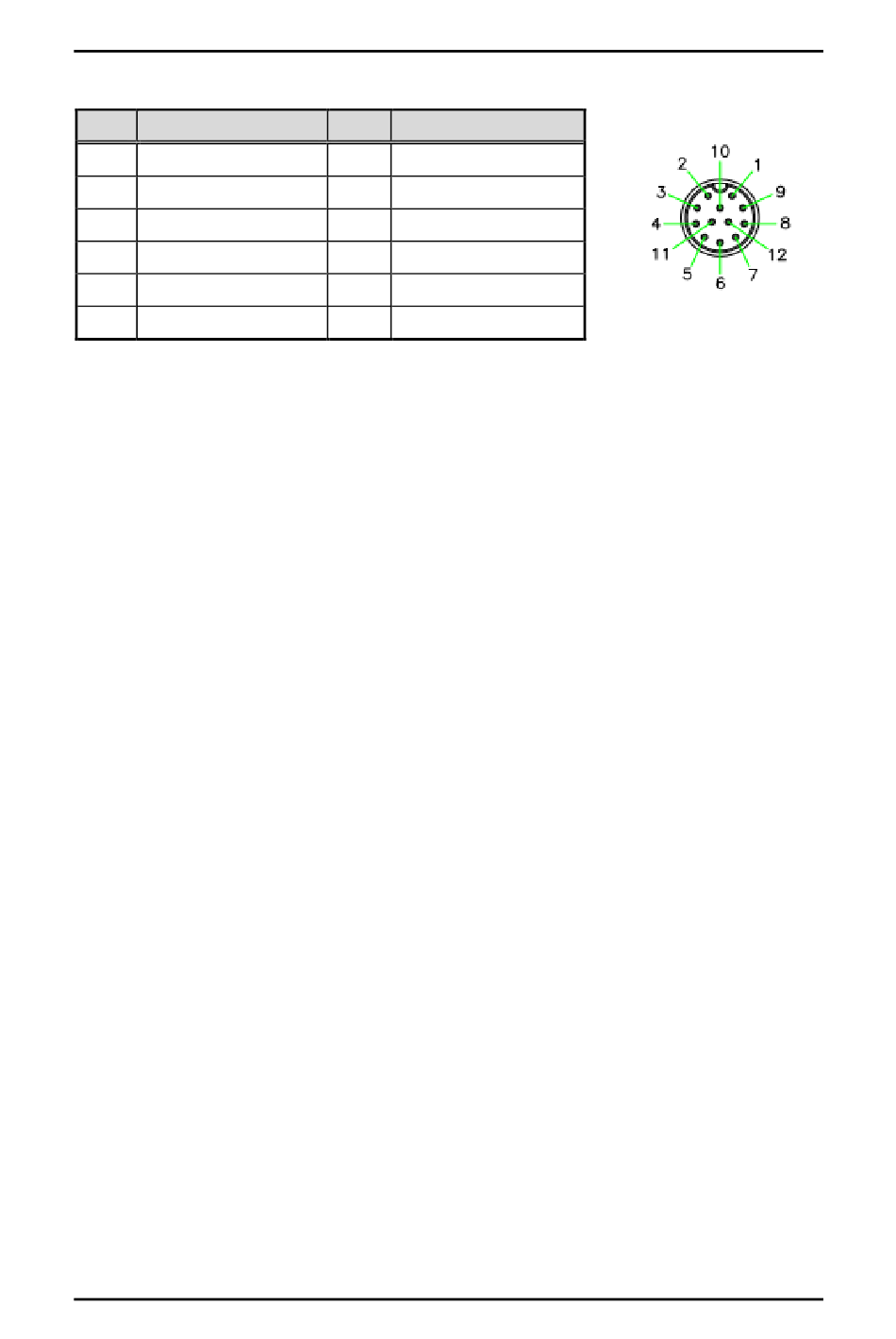

VGA Connector (M12 A-Code 12 pos Male)
Pins
Signals
Red
1
Green
2
Blue
3
DDC DATA
4
Horizontal Sync
5
DETECT
6
26
Pins
Signals
Vertical Sync
7
DDC CLK
8
VCC
9
GND
10
GND
11
GND
12
Jumper & Connector Settings
