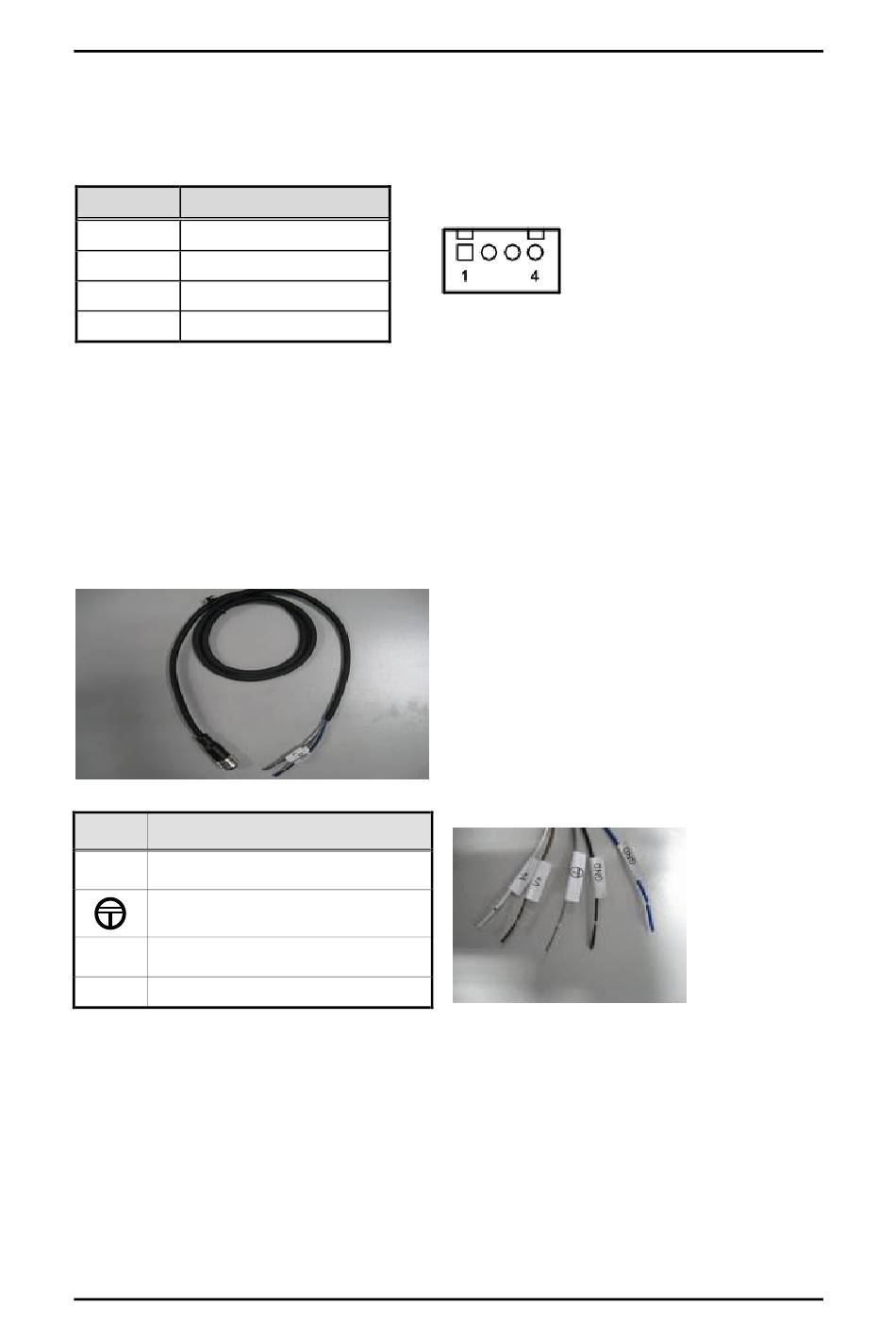

3.3.11 Power Connector (CN14)
The CN14 is a 4-pin (pitch=2.5mm) wafer connector in right angle for DC +12V input. Gently
connect CN14 to AX98251 power board's CN1.
Pins
Signals
1
+12V
2
+12V
3
GND
4
GND
3.4 Waterproof Cables
The eBOX800-511-FL series uses specific M12 connector for waterproof as enclosed in the
accessory box; included in the box are also VGA, USB and Power cables. Please refer to
pictures below for cables pin definitions.
Power Cable
Pins
V+
9~36VDC power input
Earth Ground
GND
GND
GND
GND
30
Signals
Jumper & Connector Settings
