eBOX800-511-FL-FL Series user's Manual
2.2 Installation of SO-DIMM
Step 1
Turn off the system and unplug the power cord.
Step 2

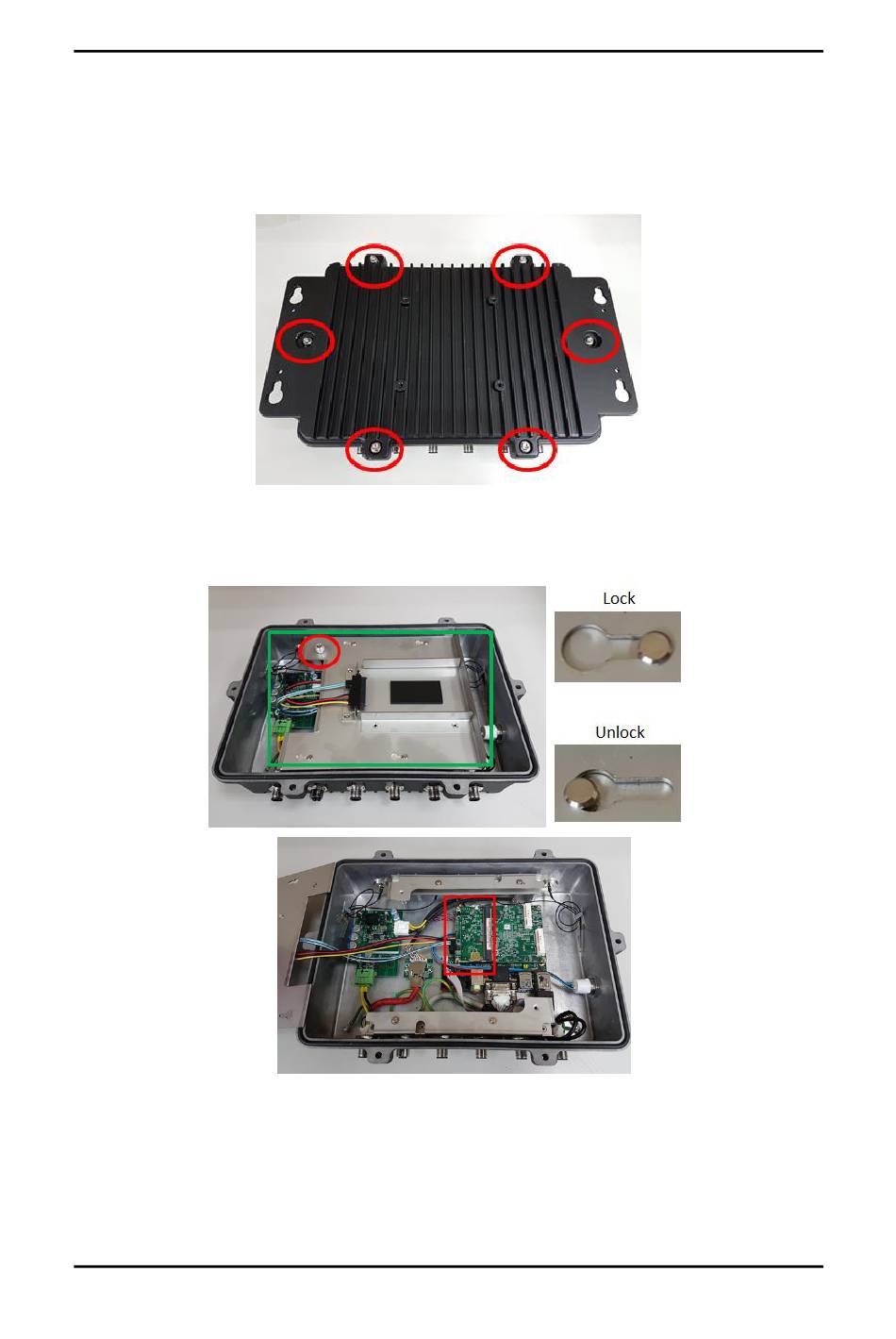

Six screws on the bottom heatsink are used to fasten the heatsink to
the chassis.
Step 3 Loosen the thumb screws to remove the metal plate then a SO-DIMM
socket on main board is visible.
14
Hardware Installation
