eBOX800-511-FL-FL Series user's Manual
SECTION 3
JUMPER & CONNECTOR SETTINGS
Proper jumper settings configure the eBOX800-511-FL to meet various application needs.
Hereby all jumpers settings along with their default settings are listed for devices onboard.

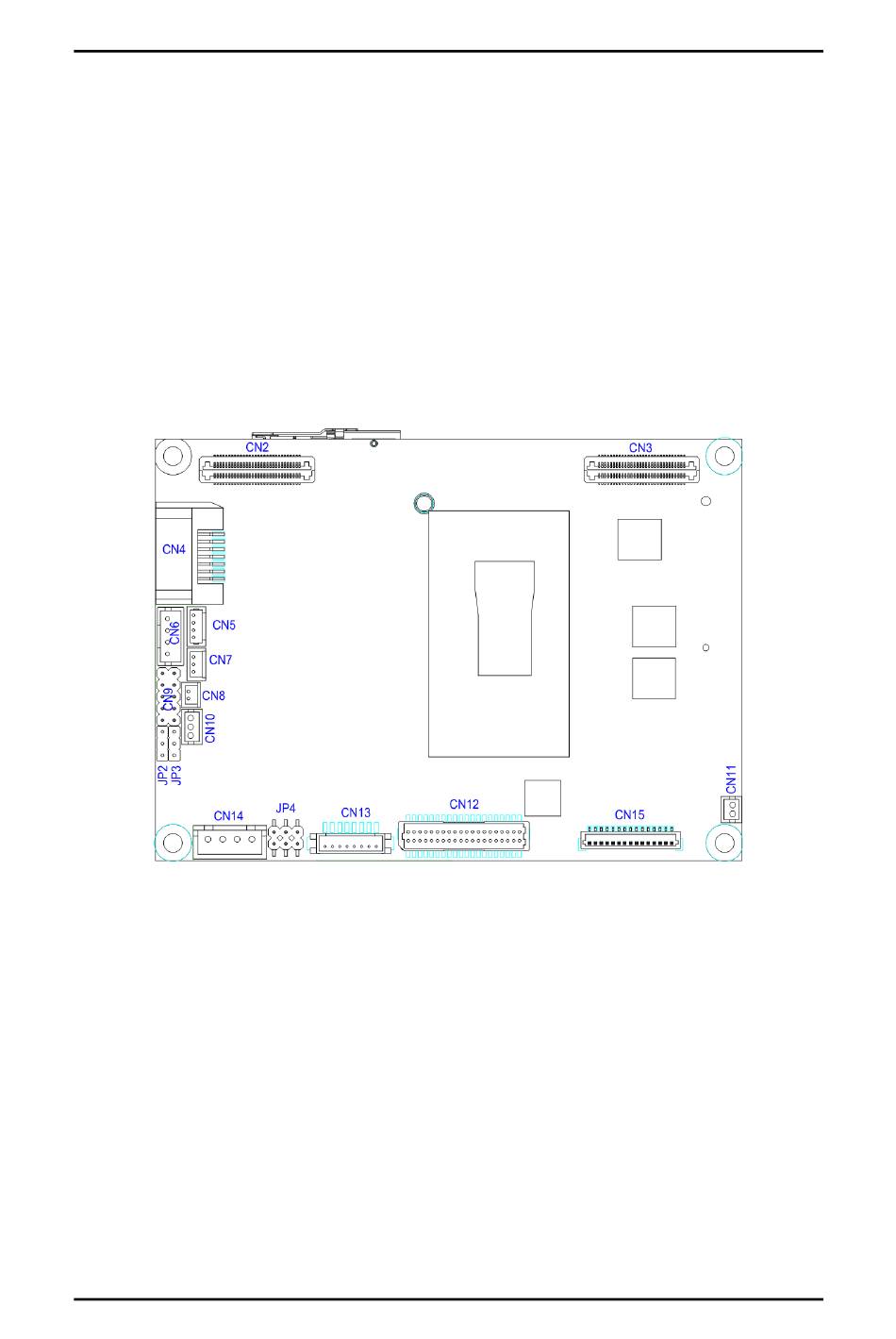

3.1 Locations of Jumpers & Connectors
PICO511 Top View
Jumper & Connector Settings
19
