3.2 Summary of Jumper Settings

Proper jumper settings configure the eBOX800-511-FL to meet various application purposes.
A table of all jumpers and their default settings is listed below.
PICO511
Jumpers
JP2
JP3

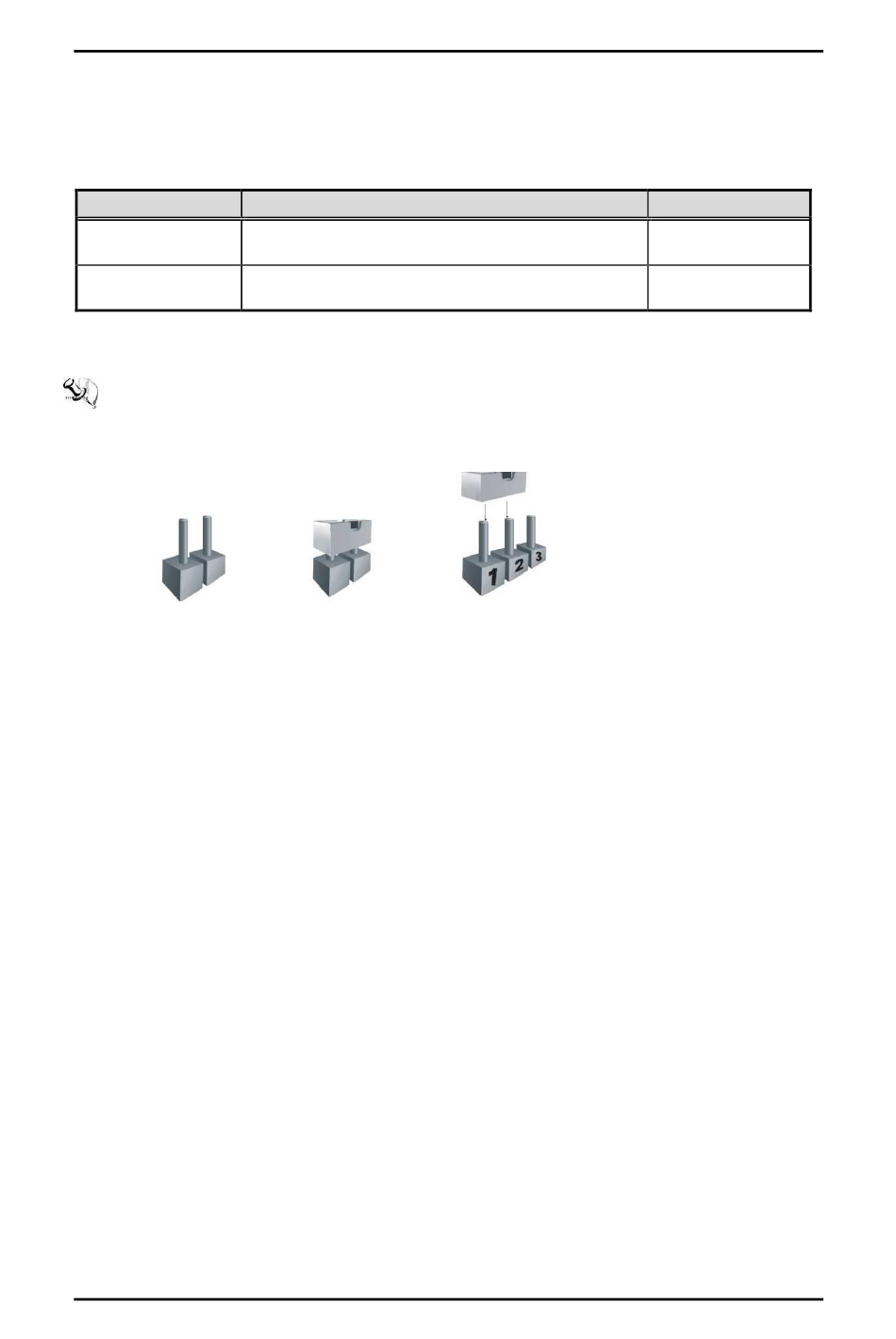

【Note】: How to setup Jumpers
That a cap on a jumper is to "close" the jumper, whereas that offs a jumper is to "open" the
jumper.
[Open]
Jumper & Connector Settings
Descriptions
Restore BIOS Optimal Defaults
Default: Normal Operation
Auto Power On
Default: Enable
[Closed]
eBOX800-511-FL-FL Series user's Manual
[Pin1 -2 Closed]
Settings
1-2 Close
2-3 Close
