Actuator without feedback

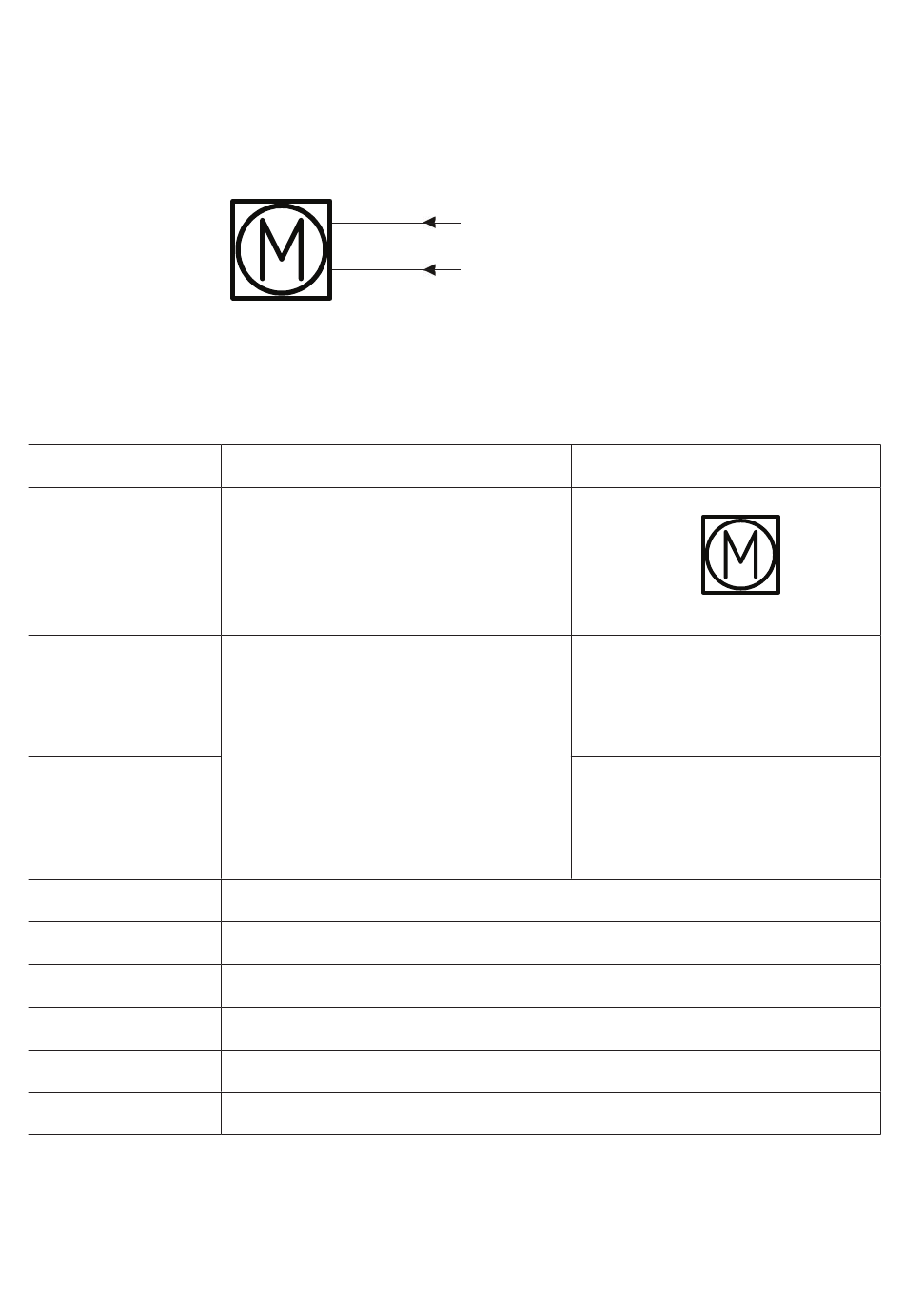

Connection diagram:
Fig. 1 : 37xxxx+10xxxxxx
I/O specifications:
Input/Output
Description
Brown
Blue
Red
Black
Green
Yellow
Violet
White
Specification
Permanent magnetic DC motor.
See connection diagram,
fig. 1 above
12 or 24VDC (+/-)
12V ± 20%
24V ± 10%
Under normal conditions:
12V, max. 26A depending on load
24V, max. 13A depending on load
Not to be connected
Not to be connected
Not to be connected
Not to be connected
Not to be connected
Not to be connected
BROWN
BLUE
Comments
To extend actuator:
Connect Brown to positive
To retract actuator:
Connect Brown to negative
To extend actuator:
Connect Blue to negative
To retract actuator:
Connect Blue to positive
Page 14 of 80
