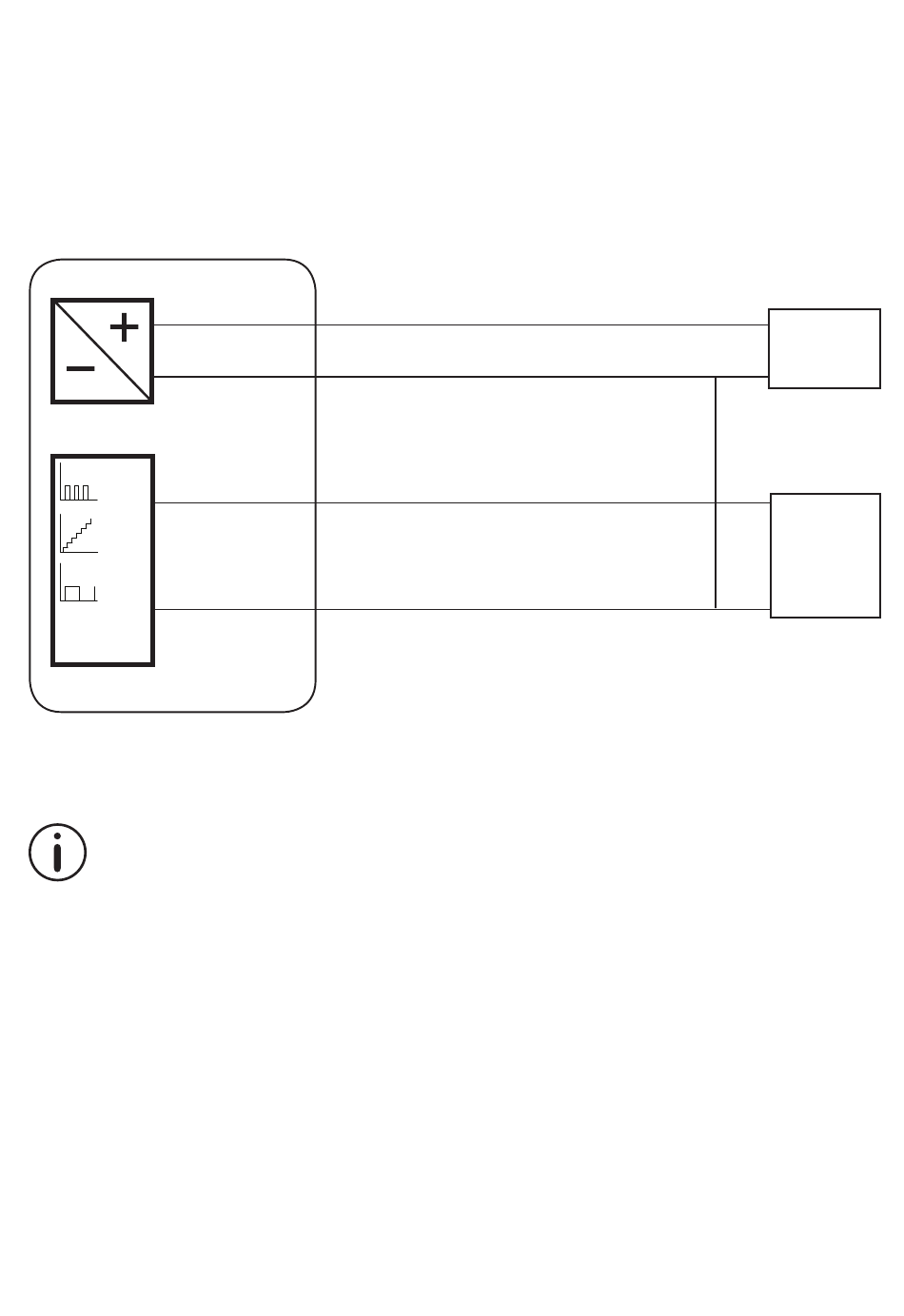

Correct wiring of Power GND and Sinal GND for IC Basic and IC Advanced
When using the feedback output, it is important to use the right connection setup.
Attention should be paid to the two ground connections. Power GND in the Power connector and Signal GND
in the Control connector. When using either 0-10V, Hall or PWM feedback, the Signal GND must be used. For
optimal accuracy, the Signal GND is connected to the Power GND as close as possible to the feedback input
equipment.
Power connector
POWER
POWER GND
Control connector
Hall
FEEDBACK
0-10V
PWM
50%
50%
SIGNAL GND
4-20mA
LA37 IC actuator
Please note that this section only applies for the following feedback options: 0-10V, Hall and PWM.
BROWN
BLUE
VIOLET
WHITE
Page 41 of 80
Power
supply
Feedback
input
