Actuator with IC Basic

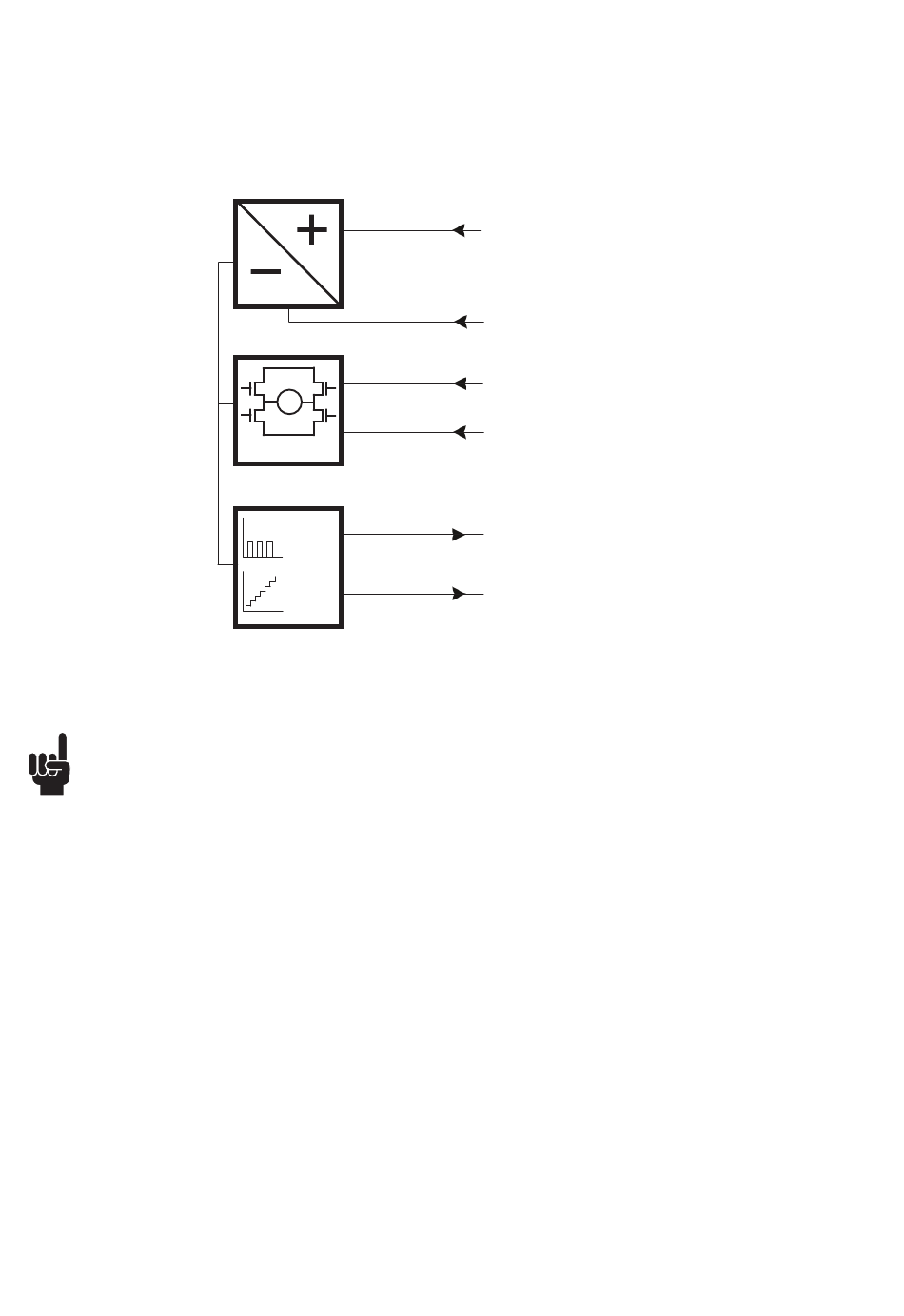

Connection diagram:
Fig. 11: 37xxxx+7xxxxxxx
Please be aware that if the power supply is not properly connected, you might damage the actuator!
INWARDS
M
OUTWARDS
H-Bridge
FEEDBACK
Hall
SIGNAL GND
0-10V
Page 35 of 80
BROWN
12/24V DC
BLUE
BLACK
RED
VIOLET
WHITE
