Actuator with endstop signals and absolute positioning - PWM

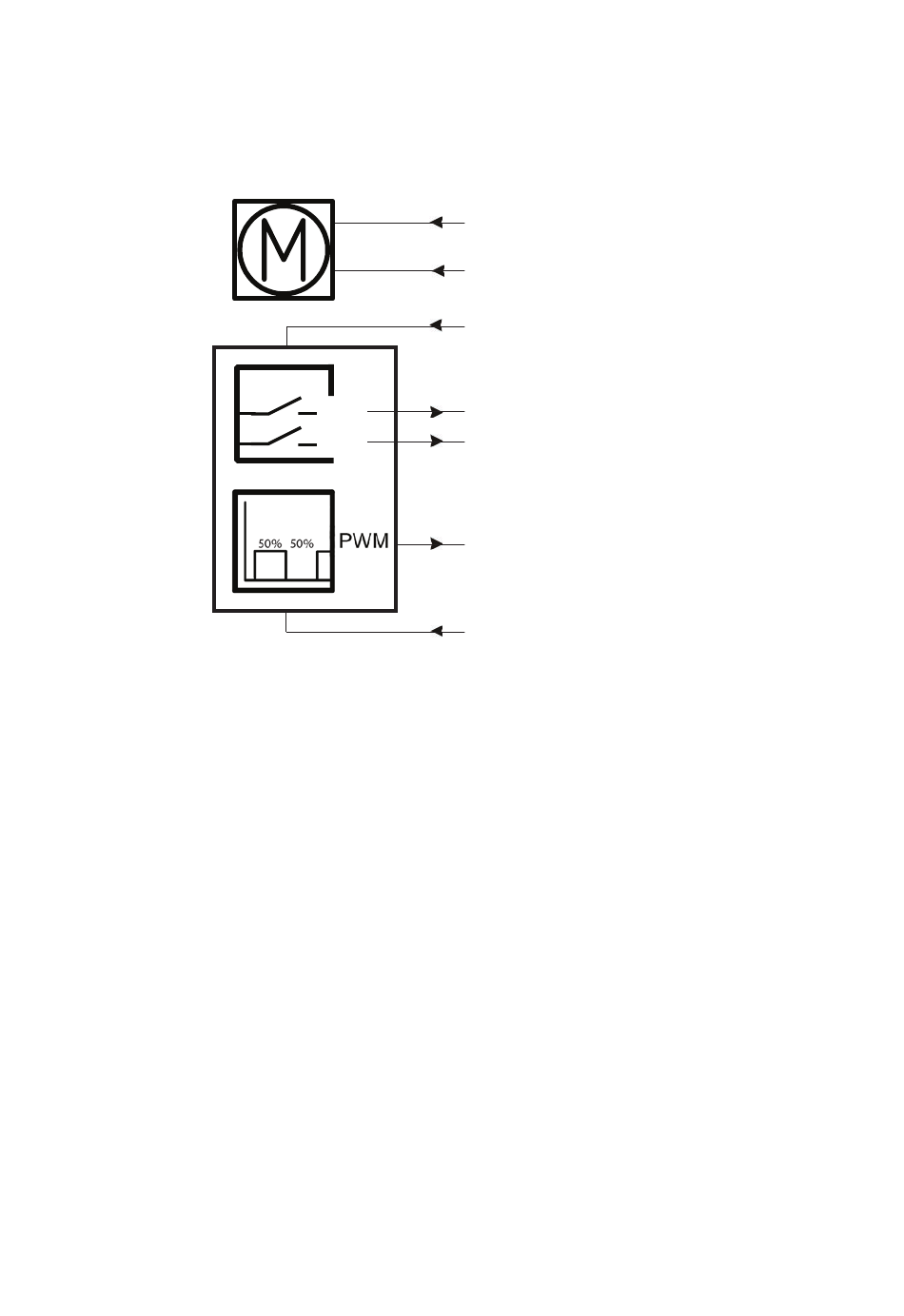

Connection diagrams:
Fig. 10: 37xxxx+25/26xxxxxxx
*YELLOW/GREEN: Endstop signals out are NOT potential free! (See I/O Specifications, page 17)
If you wish to use the endstop signals, you will have to keep power on the brown, blue, red and black wires,
otherwise the signal will be lost.
BROWN
BLUE
+
RED
YELLOW*
IN
OUT
GREEN*
VIOLET
BLACK
-
Page 33 of 80
